Key Interlock Does Not Lock or Release

4. KEY INTERLOCK DOES NOT LOCK OR RELEASE

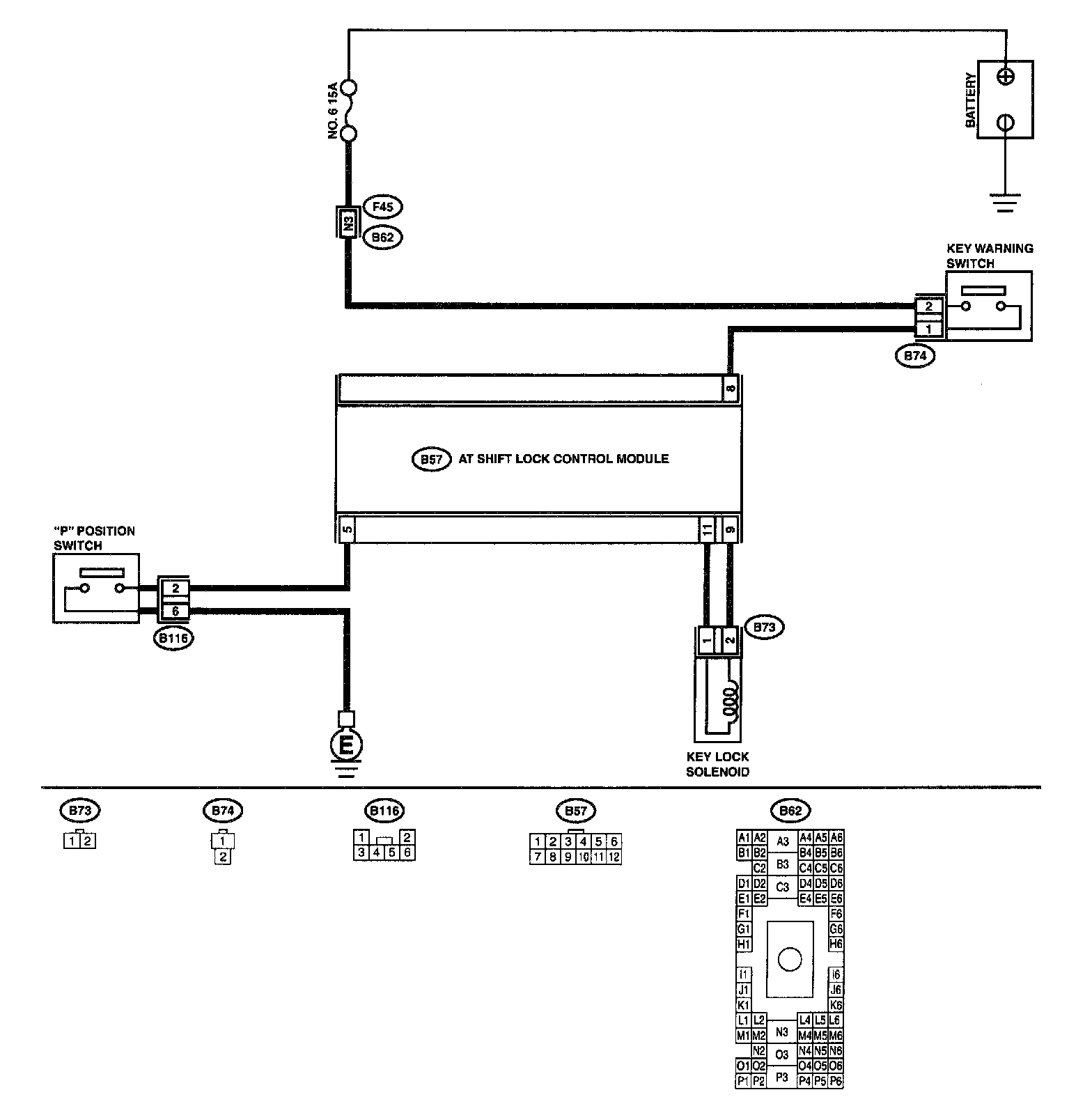

WIRING DIAGRAM

DIAGNOSTIC PROCEDURE

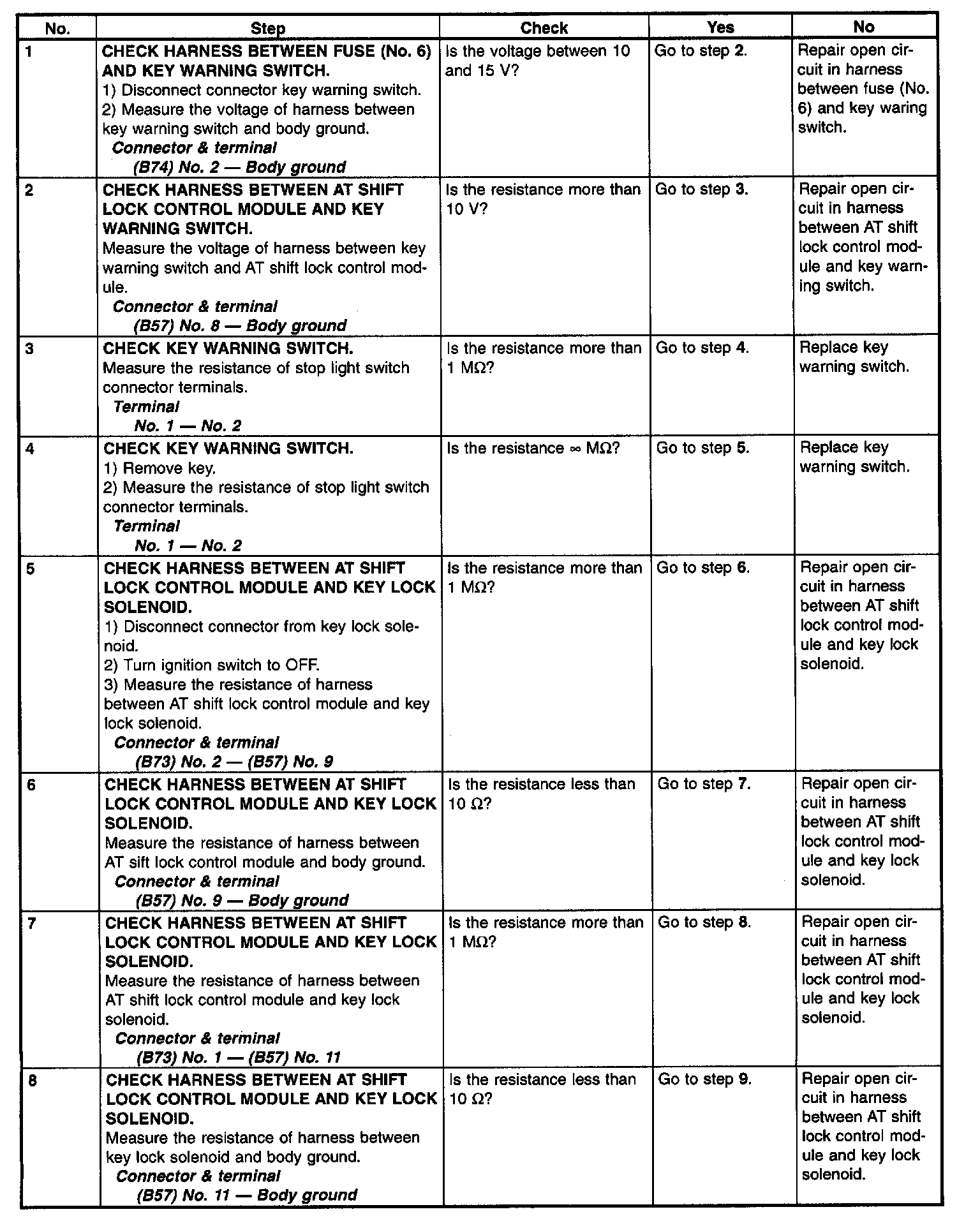

No.1 - 8

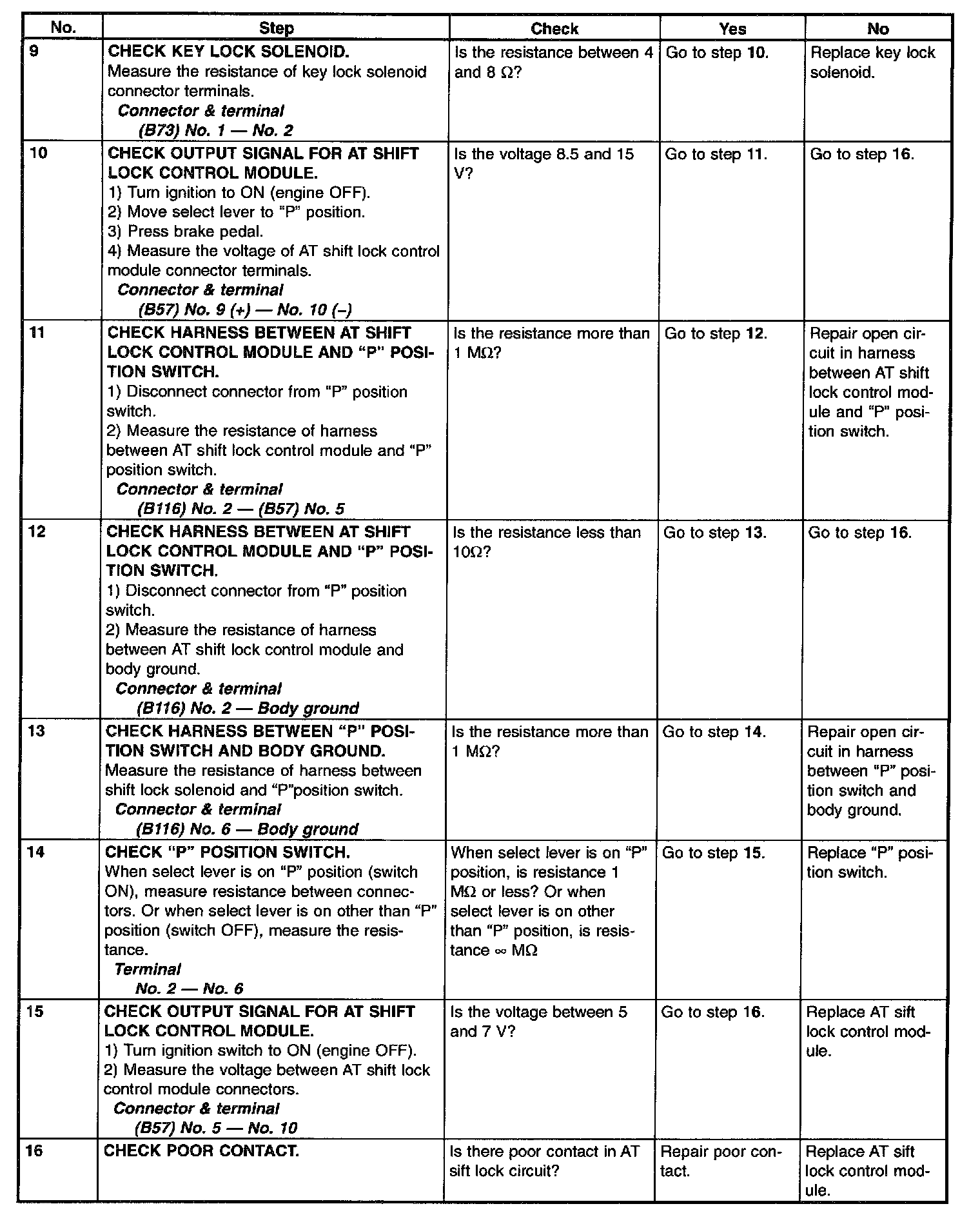

No.9 - 16
