Subaru
>>
2001
>>
Legacy Outback LL Bean Ed. AWD F6-3.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
A/T Shift Lock Control Module Power Supply and Ground Line
A/T Shift Lock Control Module Power Supply and Ground Line
1. AT SHIFT LOCK CONTROL MODULE POWER SUPPLY AND GROUND LINE

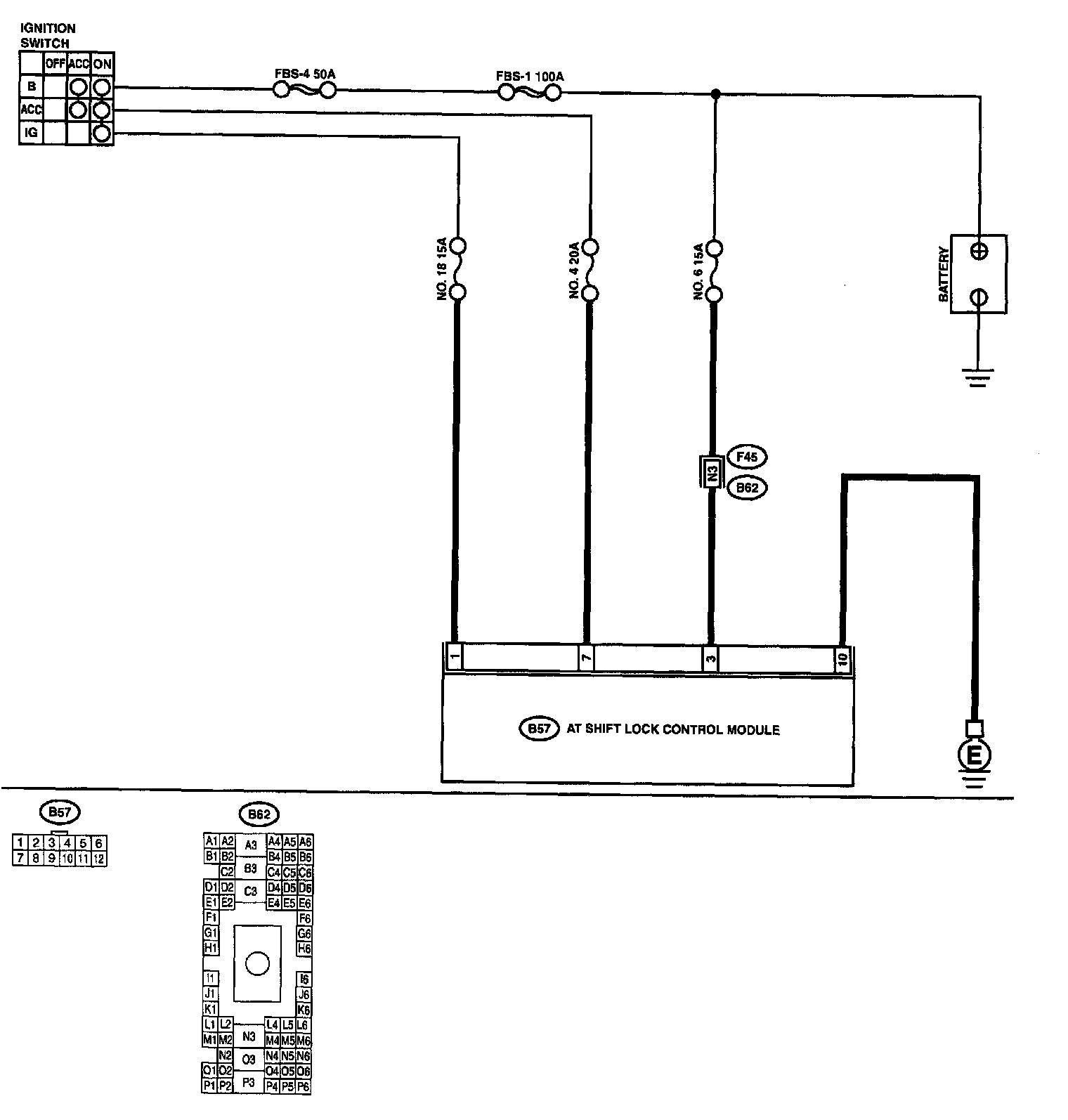

WIRING DIAGRAM

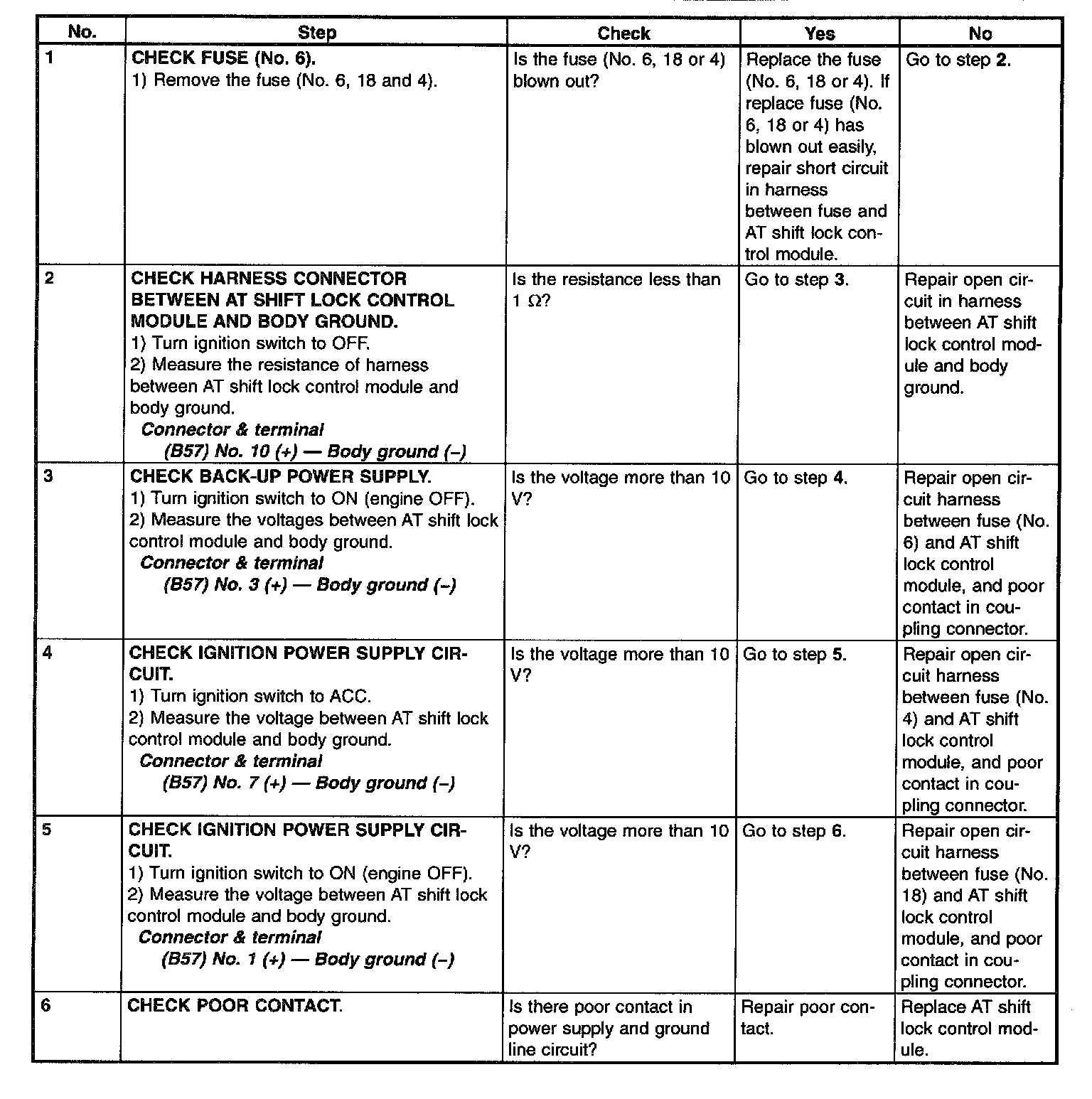

DIAGNOSTIC PROCEDURE
