Electrical Diagrams
Electrical Diagrams

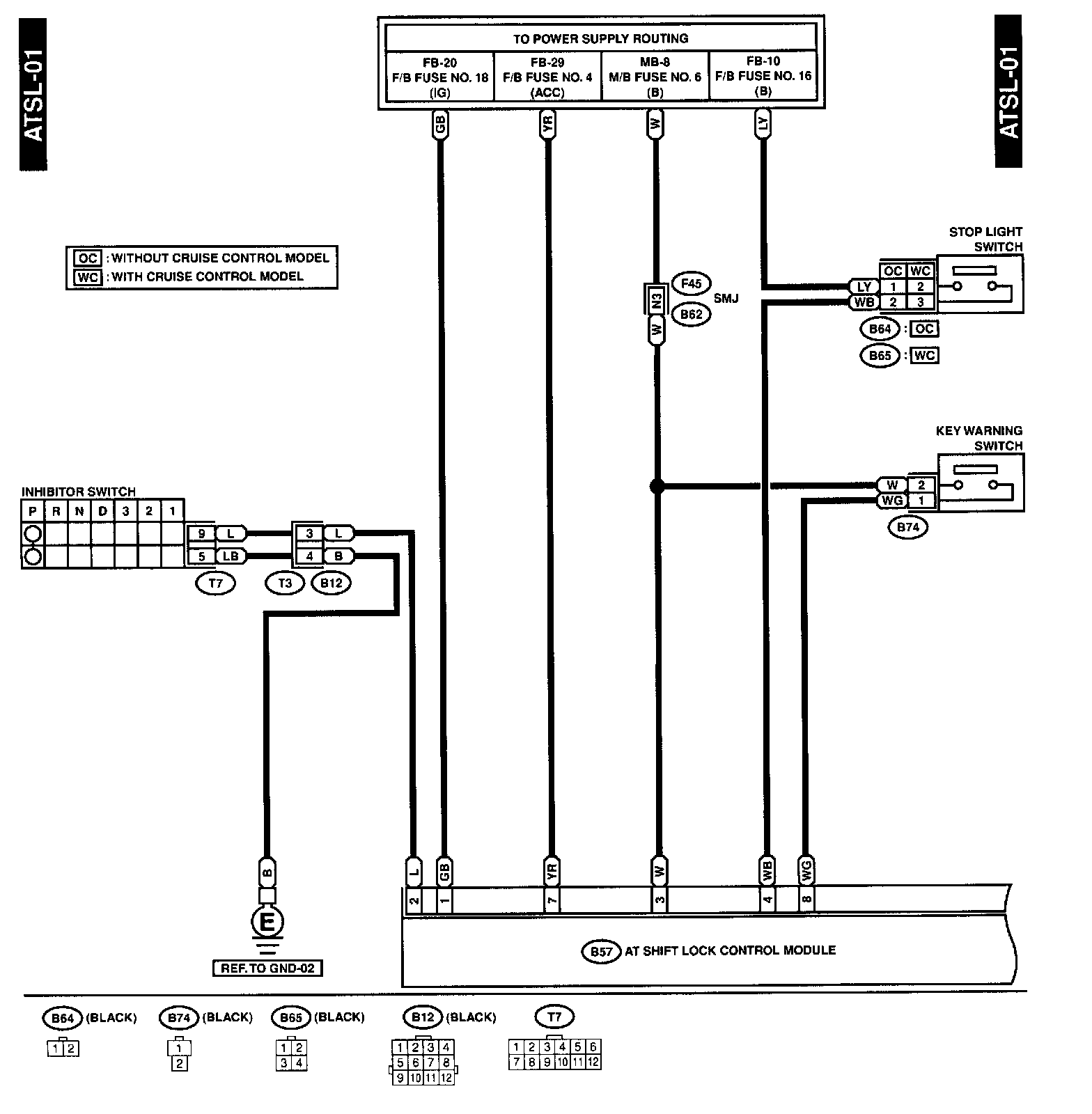

ATSL-01 - A/T Shift Lock Control System:

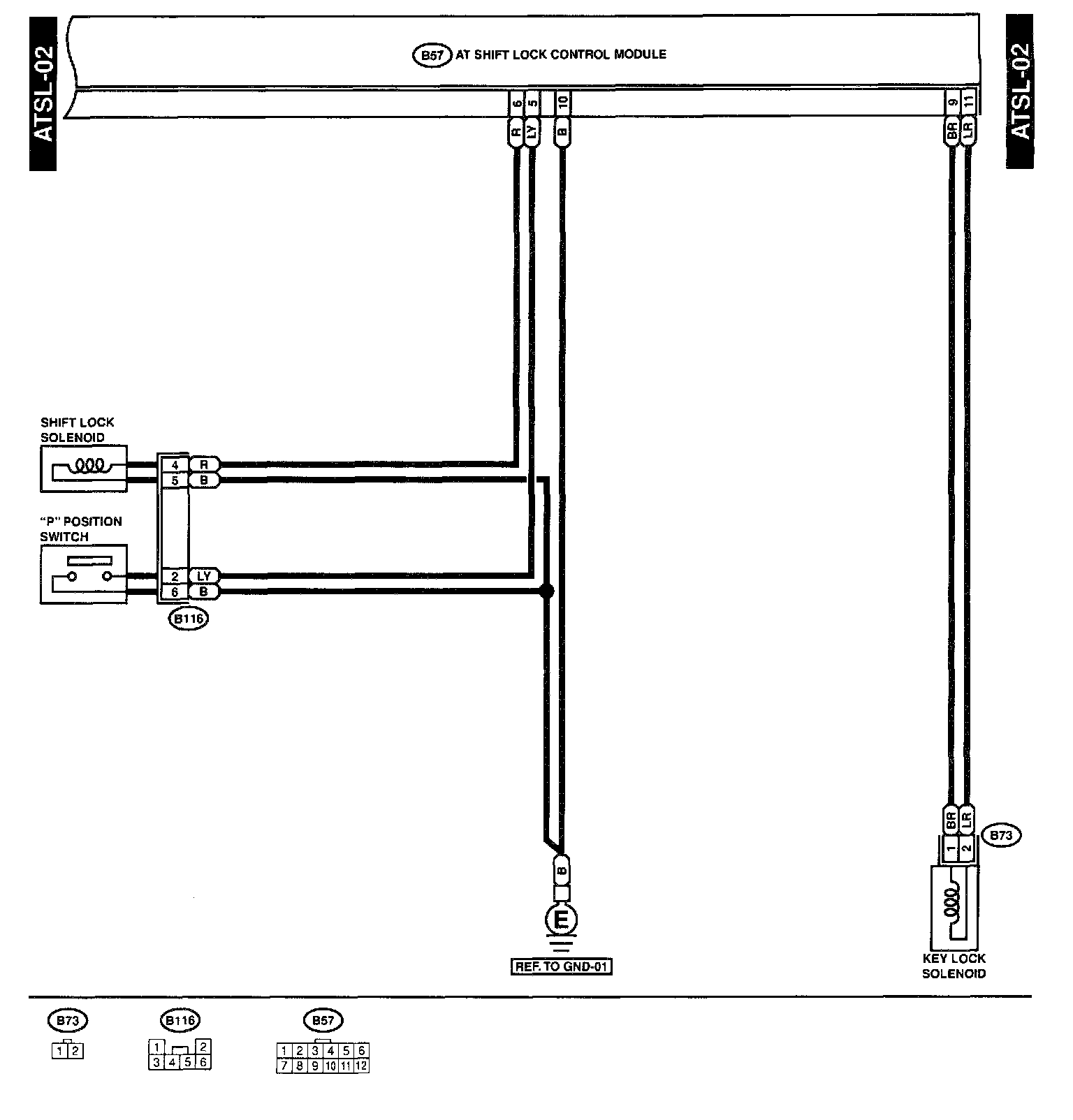

ATSL-02 - A/T Shift Lock Control System:
