Transfer Duty Solenoid and Valve Body

A: REMOVAL





1) Remove rear vehicle speed sensor.

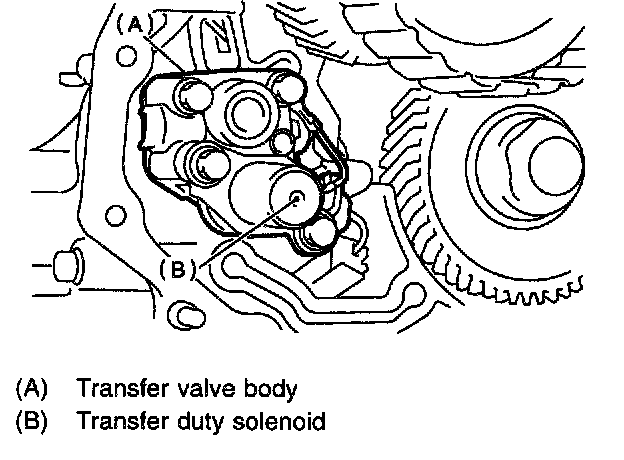

2) Separate transmission case and extension case sections.
3) Disconnect connector from transfer duty solenoid.





4) Remove transfer valve body and transfer duty solenoid.





5) Pull out inlet filter
6) Remove the oil seal from the transfer valve body.

B: INSTALLATION
1) Insert the oil seal into the transfer valve body.





2) Install inlet filter to transmission case.

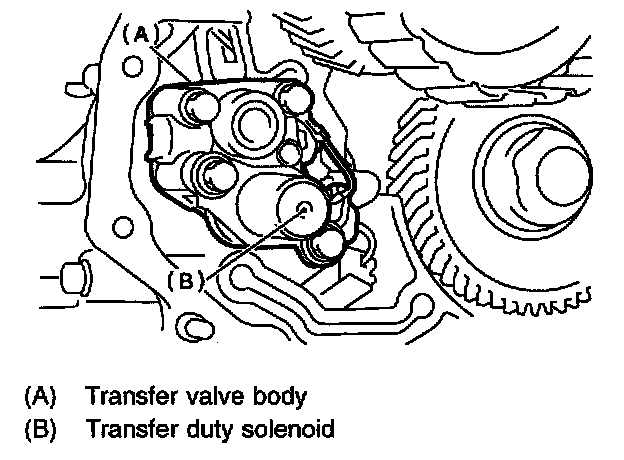

3) Install transfer valve plate, valve body and transfer duty solenoid to transmission case.

CAUTION:
^ Be sure to install transfer seal lip to transfer control valve body.
^ If transfer seal lip is damaged, replace seal with new one.





Tightening torque: 8 Nm (0.8 kgf-cm, 5.8 ft. lbs.)





4) Install the extension case from the transmission case.

CAUTION: Be sure to use a new gasket.

5) Install the rear vehicle speed sensor.
Tightening torque: 7 Nm (0.7 kgf-cm, 5.1 ft. lbs.)

C: INSPECTION
Check each component for harmful cuts, damage and other faults.
