Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations

Automatic Transmission/Transaxle: Locations

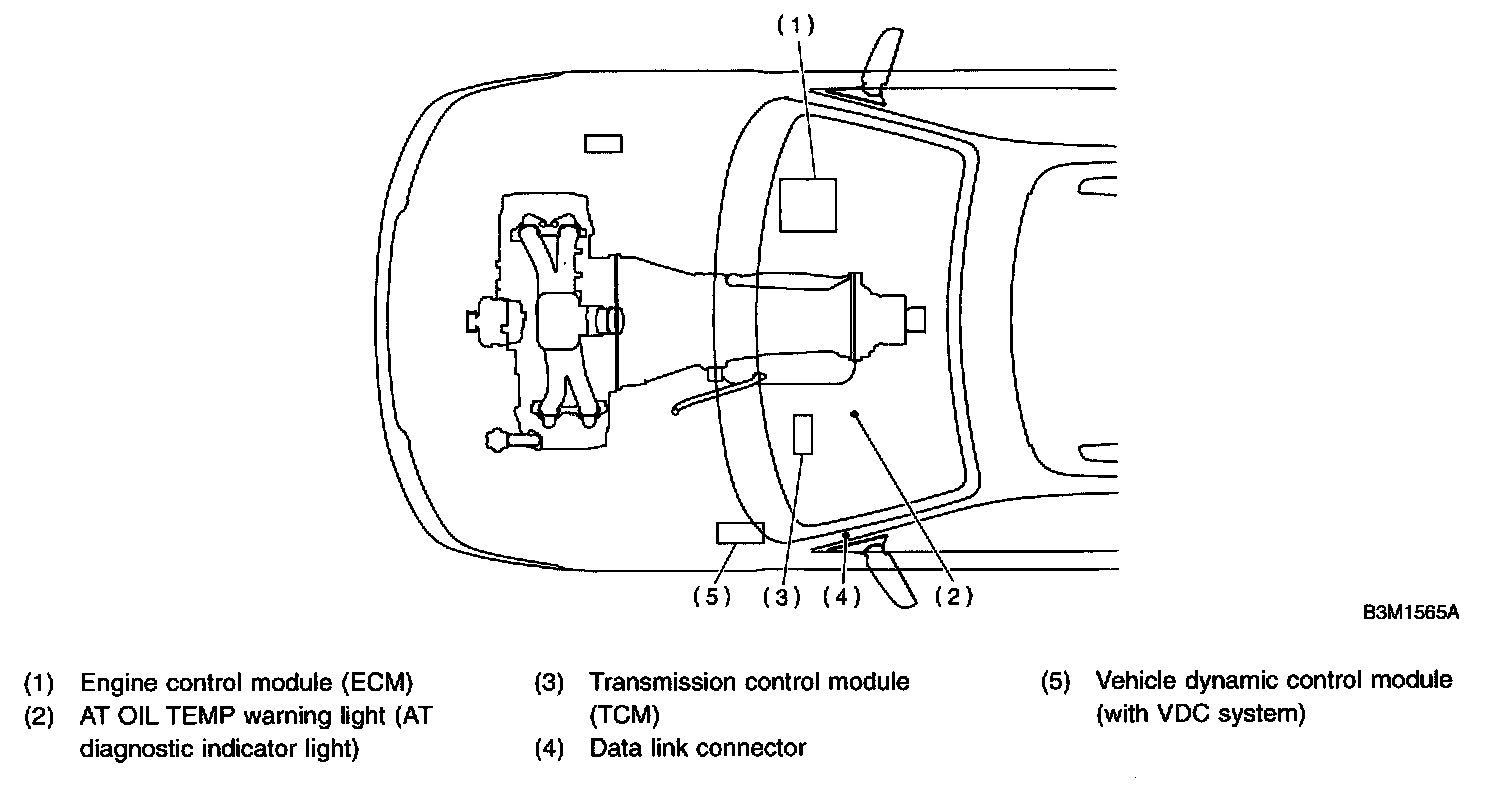

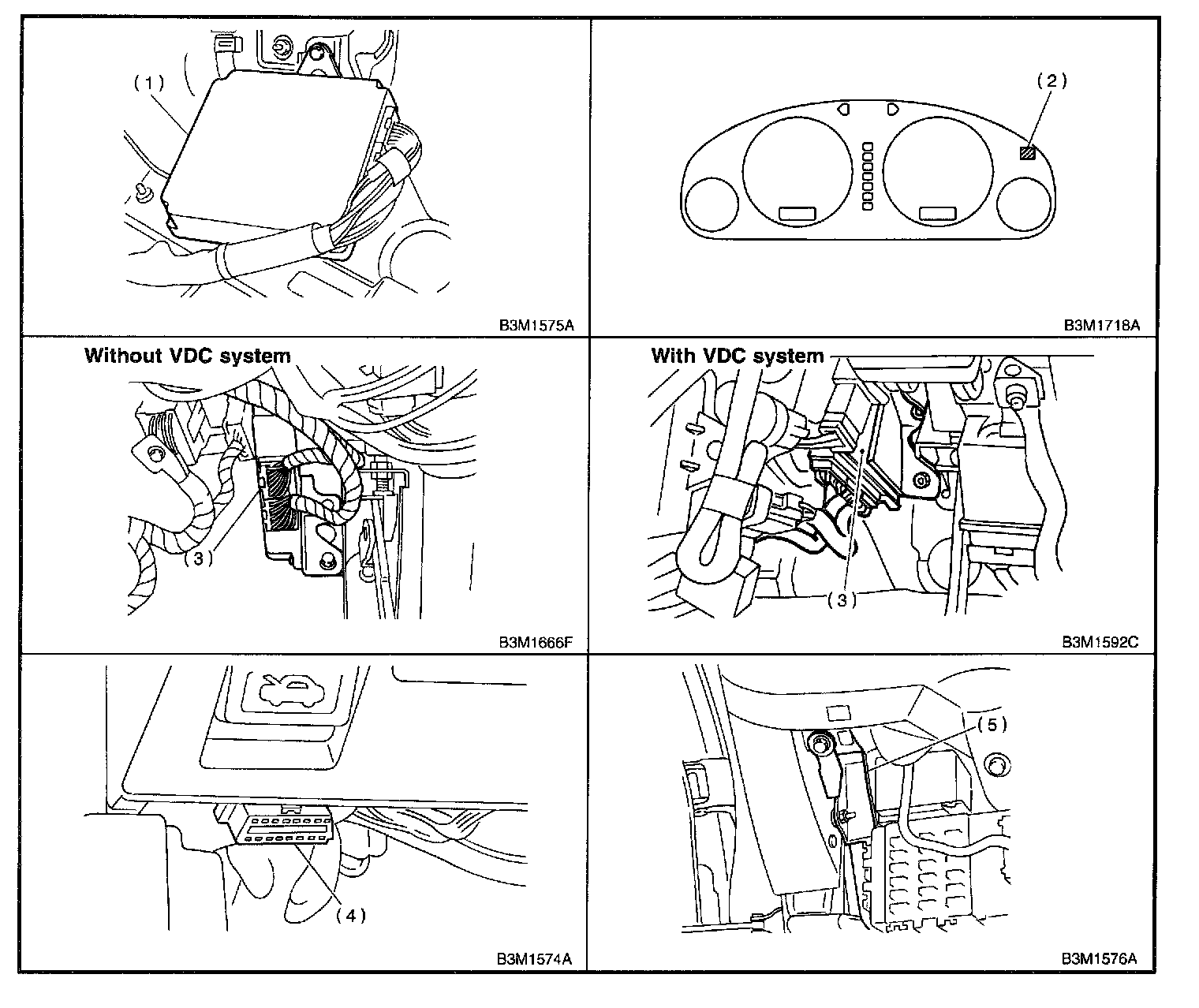

1. CONTROL MODULE

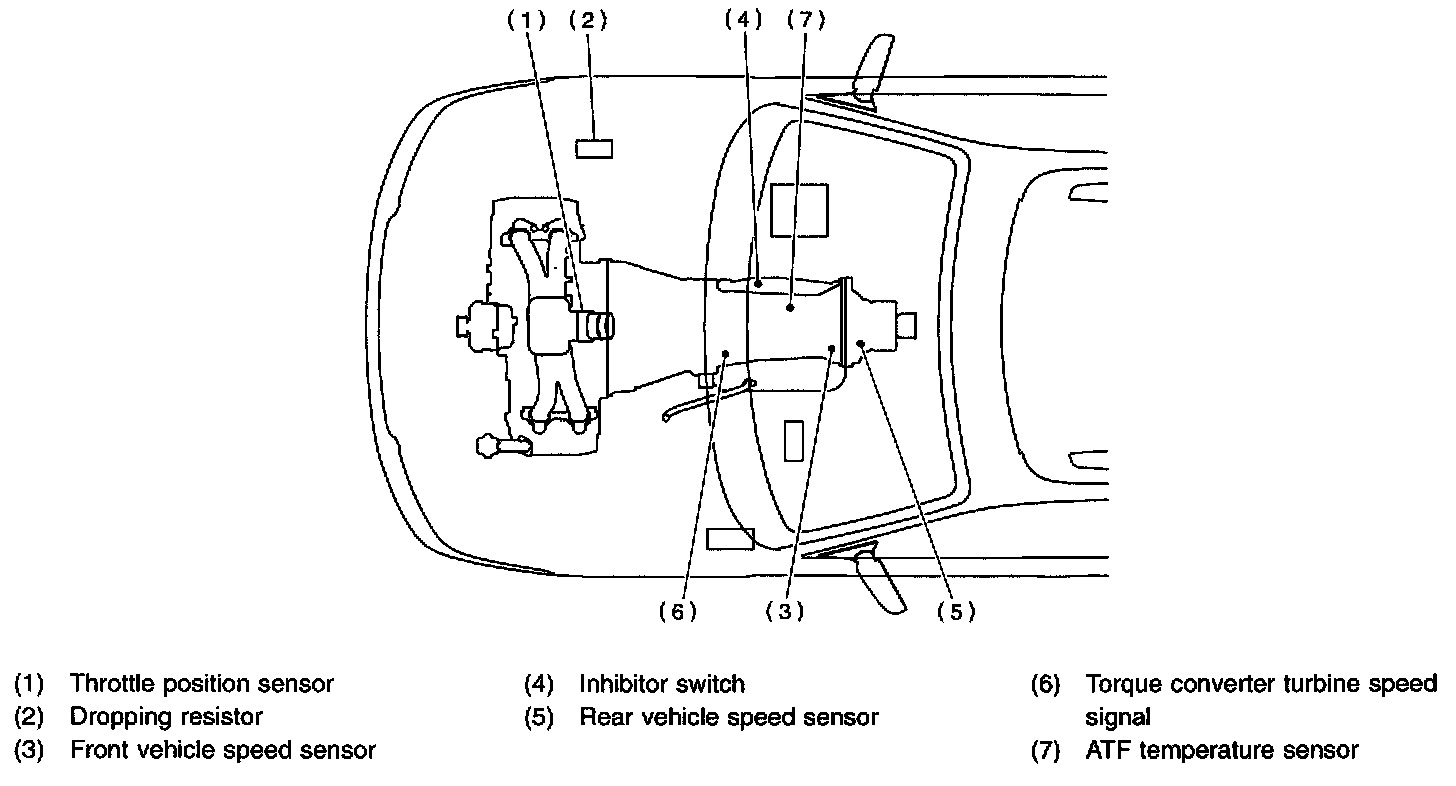

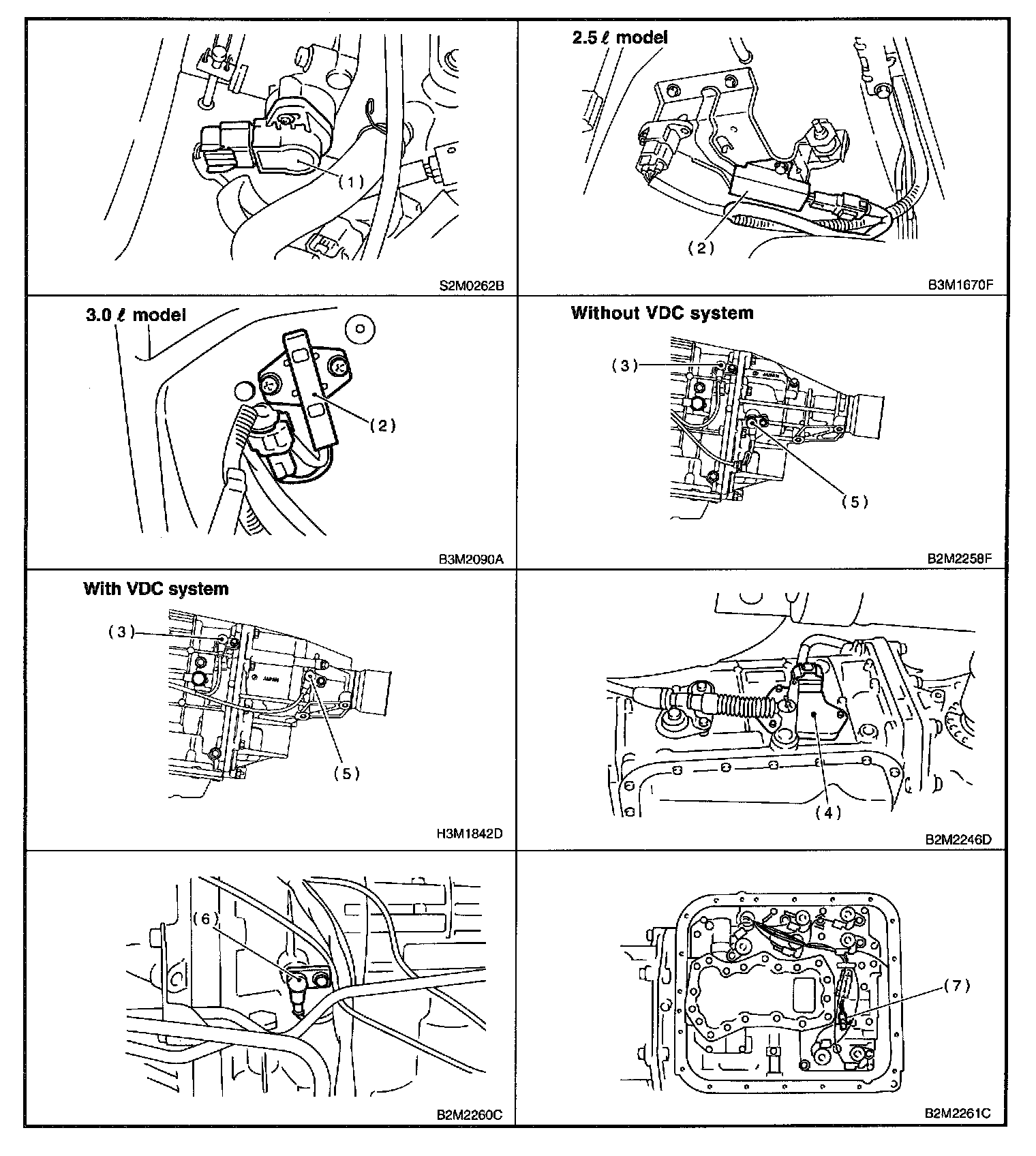

2. SENSOR

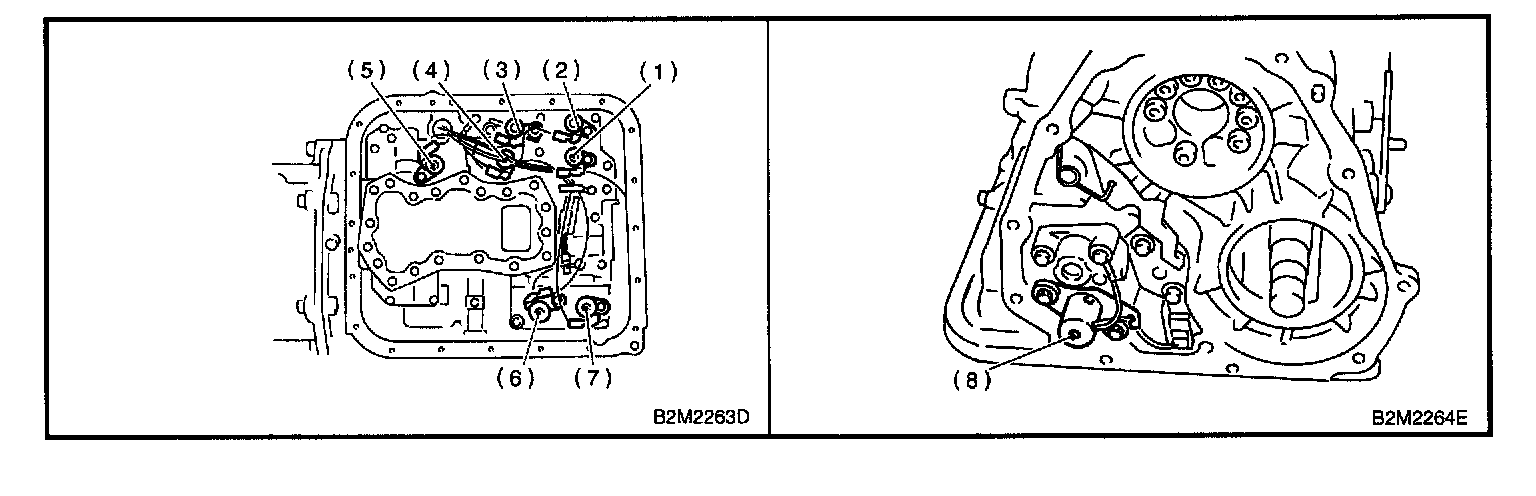

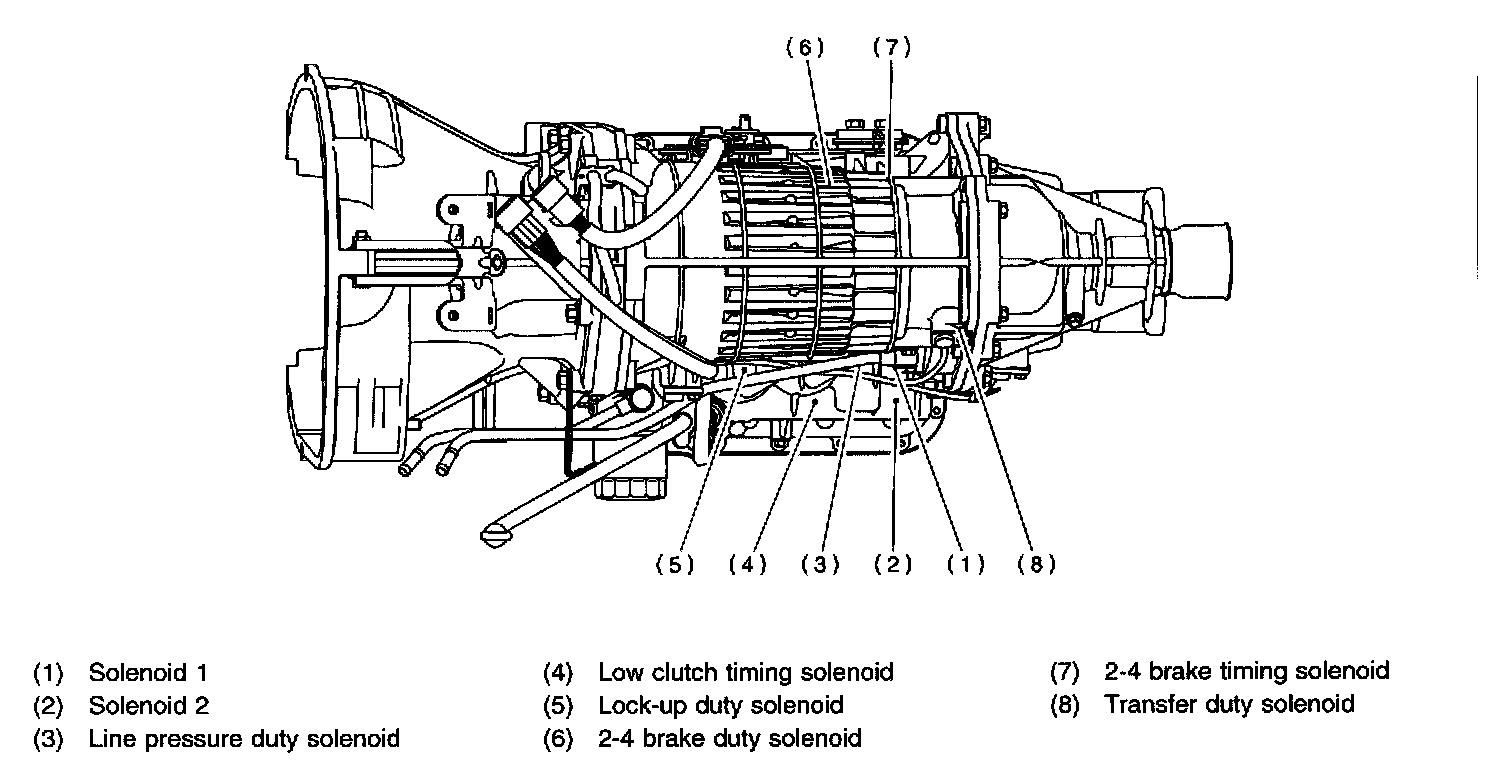

3. SOLENOID
