Dropping Resistor: Service and Repair

A: REMOVAL





1. Disconnect battery ground cable.
2. Remove air intake duct.
3. Disconnect connector from dropping resistor.
4. Remove dropping resistor.

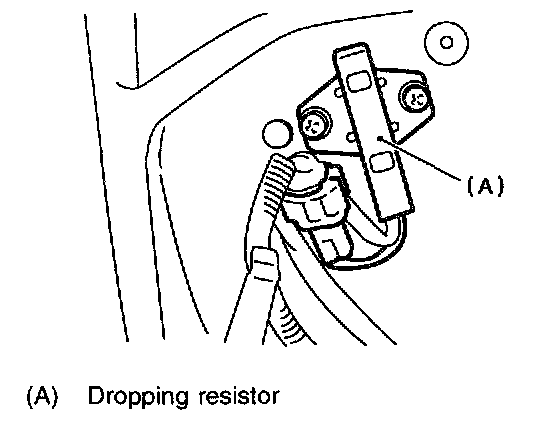

2.5L model

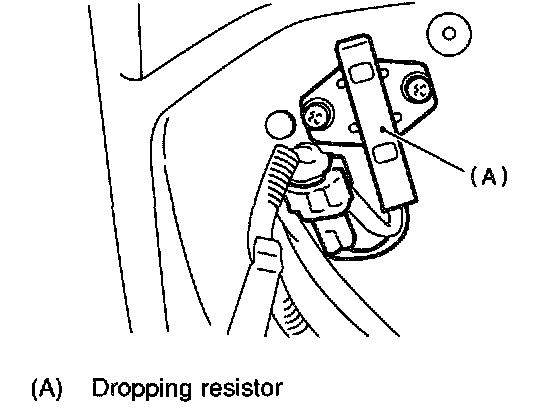

3.0L model

B: INSTALLATION
1. Install in the reverse order of removal.
Tightening torque: 6.4 Nm (0.65 kgf-m, 4.7 ft. lbs.)





2.5L model





3.0L model
