Case: Service and Repair

A: REMOVAL

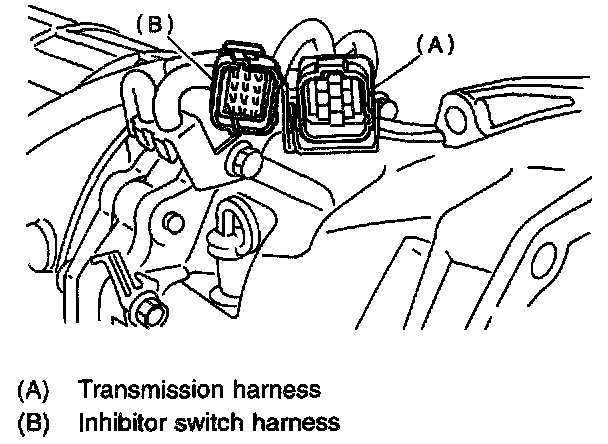

1) Disconnect transmission harness connector from stay.

NOTE: Lift-up lever behind connector and disconnect it from stay.

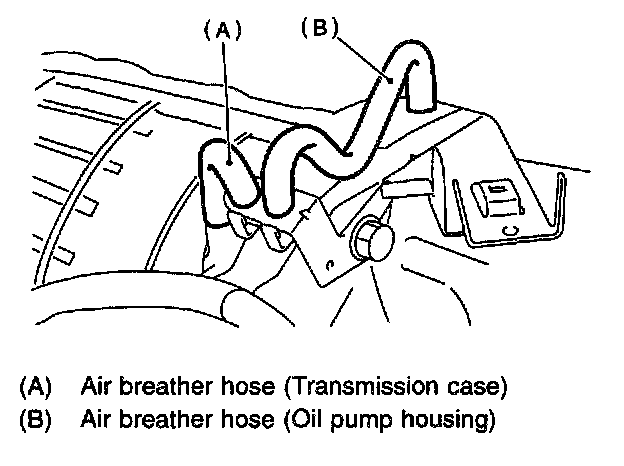

2) Disconnect the air breather hoses.

B: INSTALLATION

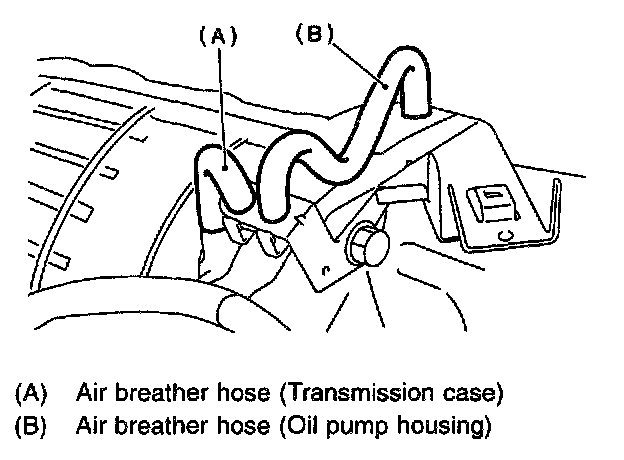

1) Install air breather hoses.





2) Insert inhibitor switch and transmission connector into stay.

C: INSPECTION
Make sure the hose is not cracked or clogged.
