Rear Suspension

REAR SHOCK ABSORBER

REMOVAL
1. Lift-up vehicle and remove rear wheels.

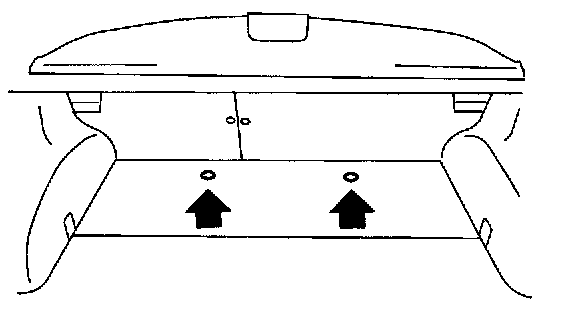

2. Remove clip and detach floor mat. (Wagon model)
3. Detach trunk mat. (Sedan model)

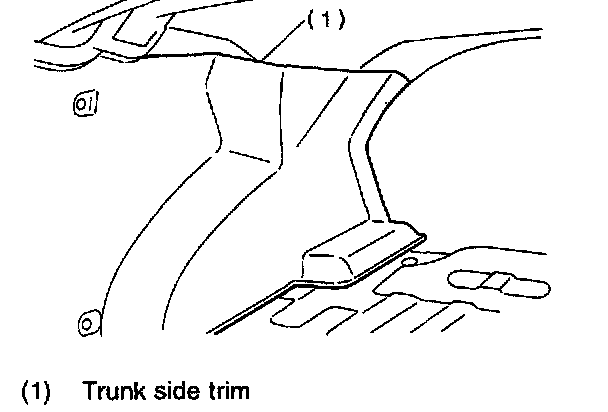

4. Roll up the trunk side trim. (Sedan model)

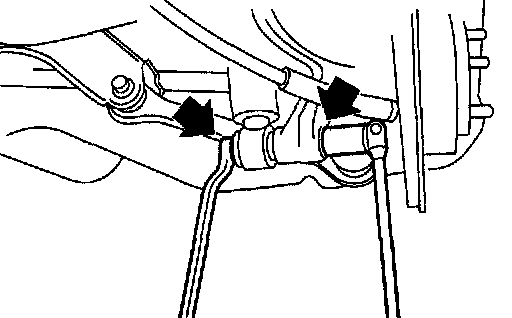

5. Remove bolt securing shock absorber to rear arm.
6. Use a jack to support the shock absorber.

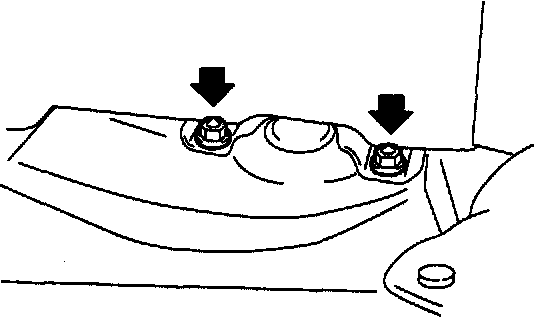

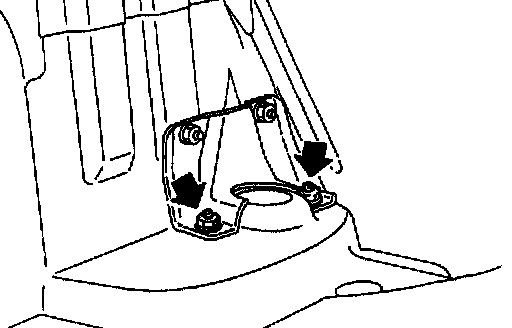

7. Remove nuts securing shock absorber mount to body.





^ Wagon





^ Sedan
8. Remove shock absorber.

INSTALLATION
1. Use a jack to support the shock absorber.
2. Tighten self-locking nut used to secure shock absorber to vehicle body.

CAUTION: Use a new self-locking nut.

Tightening torque: 30 Nm (3.1 kgf-cm, 22 ft. lbs.)

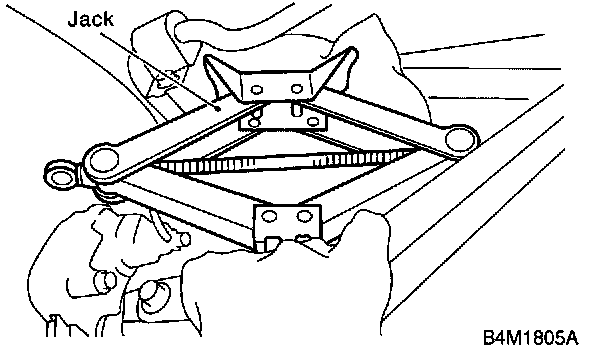

3. Place jack (furnished with vehicle) upside down and position it between link rear and sub frame. Adjust jack position so rear shock absorber is aligned with rear arm at their corresponding holes. Install lower shock absorber bolts.





CAUTION: Put a cloth between jack and its mating area to protect link rear and sub frame from scratches.





4. Using transmission jack, support rear arm horizontally and tighten shock absorber nuts and bolts to specified torque.
Tightening torque: 160 Nm (16.3 kgf-cm, 118 ft. lbs.)

CAUTION: Use a new self-locking nut.

5. Install floor mat. (Wagon model)
6. Set trunk side trim. (Sedan model)
7. Install trunk mat. (Sedan model)

NOTE: Check wheel alignment and adjust if necessary.

DISASSEMBLY
For disassembly of shock absorber, refer to procedures outlined under front strut as a guide.


ASSEMBLY
Refer to Front Strut as a guide for assembly procedures.


INSPECTION
Refer to Front Strut as a guide for inspection procedures.


DISPOSAL

CAUTION:
^ Completely discharge the gas from the shock absorber before disposal. Follow the disposal procedure outlined below.
^ Do not disassemble shock absorber or place into a fire.
^ Drill holes before disposing of shock absorber.
^ Before handling shock absorber, be sure to wear goggles to protect eyes from gas, oil and/or filings.

1. Place shock absorber on a flat and level surface with piston rod fully extended.





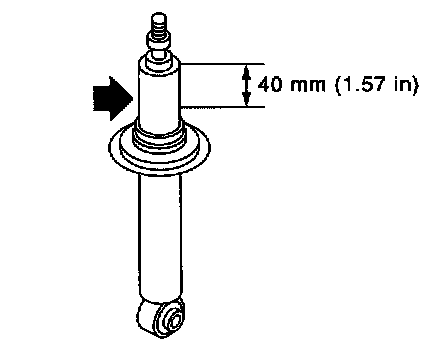

2. Using a 2 to 3 mm (0.08 to 0.12 inch) dia. drill, drill 30 mm (1.18 inch) deep holes in areas shown in the figure.
