Suspension Spring ( Coil / Leaf ): Service and Repair

HELPER


REMOVAL
1. Jack-up the rear part of the vehicle, support it with safety stands (rigid racks).

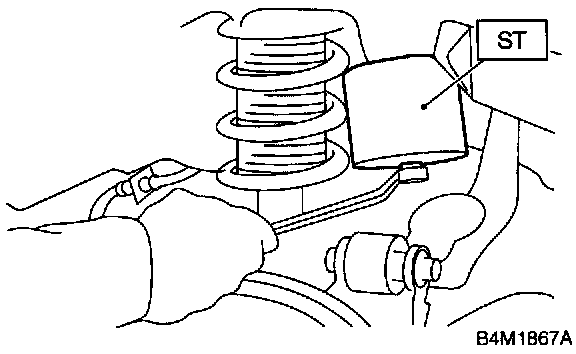

2. Using ST, remove helper.
ST 20099AE030 HELPER

INSTALLATION
Install in the reverse order of removal.
Tightening torque: 30 Nm (3.1 kgf-cm, 22 ft. lbs.)

INSPECTION
Check helper for cracks, fatigue or damage.
