Power Steering Fluid Reservoir: Service and Repair

REMOVAL

2.5 Model
1. Drain fluid from the reservoir tank.

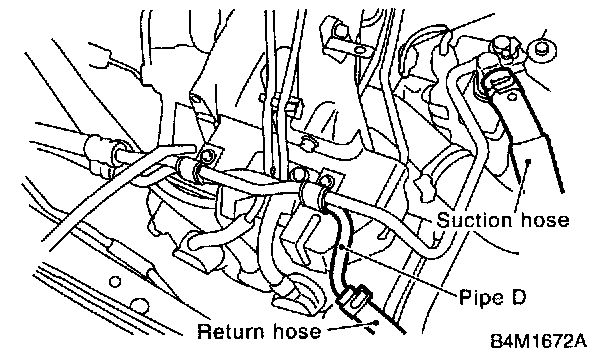

2. Disconnect pipe D from return hose and suction hose from oil pump.





CAUTION:
^ Do not allow fluid from the hose end to come into contact with pulley belt.
^ To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

3. Remove reservoir tank from bracket by pulling it upwards.

3.0 Model
1. Drain fluid from the reservoir tank.
2. Disconnect return hose and suction hose from reservoir tank.





CAUTION:
^ Do not allow fluid from the hose end to come into contact with pulley belt.
^ To prevent foreign matter from entering the hose, cover the open ends of them with a clean cloth.

3. Remove reservoir tank from bracket by pulling it upwards.

INSTALLATION

2.5 Model
1. Install reservoir tank to bracket.





2. Connect pipes D to return hose and suction hose to oil pump.
3. Feed the specified power steering fluid.

3.0 Model





1. Install reservoir tank to bracket.
2. Connect pressure hose and suction hose to oil pump.
3. Feed the specified power steering fluid.

INSPECTION
Check reservoir tank for cracks, breakage, or damage. If any cracks, breakage, or damage is found, replace reservoir tank.
