Removal and Installation

REMOVAL

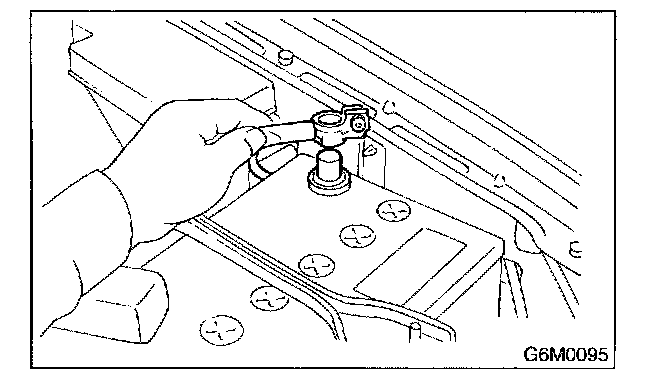

1. Disconnect battery ground cable.
2. Remove air intake chamber.

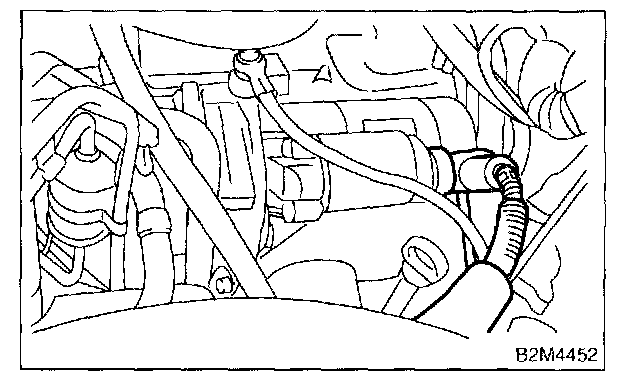

3. Disconnect connector and terminal from starter.

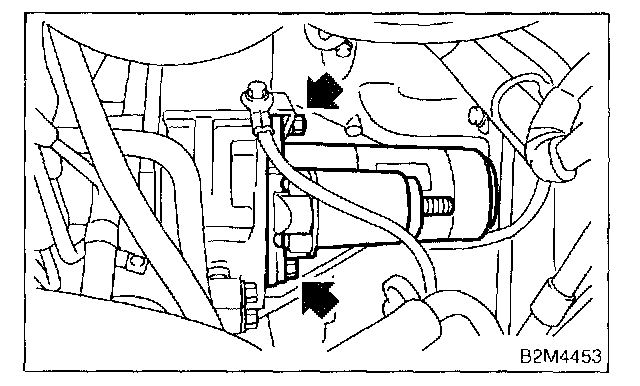

4. Remove starter from transmission.





INSTALLATION
Install in the reverse order of removal.
