Ignition Switch: Testing and Inspection
Ignition Switch1. Remove the instrument panel lower cover.
2. Remove the lower column cover.
3. Unfasten the holddown clip which secures the harness and disconnect the connector of the ignition switch from the body harness.

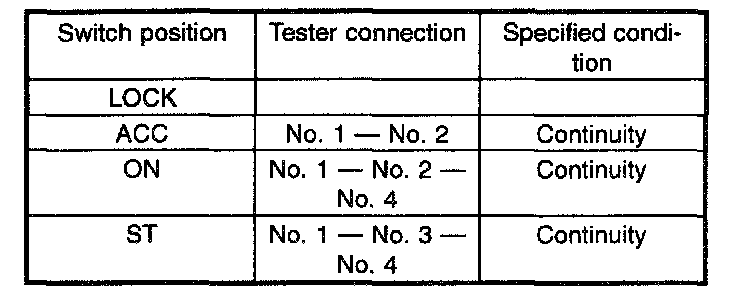

4. Turn the ignition key plate to each position and check the continuity between the terminals of the ignition connector.
If NG, replace the ignition switch.
