A/T Technical Data

5-spd M/T/4-spd A/T, Transmission/Reduction Gear Ratios:




4-spd A/T, Transmission/Reduction Gear Ratios (Outback):





5-spd M/T/4-spd A/T, Transmission Identification Details:





Rear Differential Identification Details & Ratios:

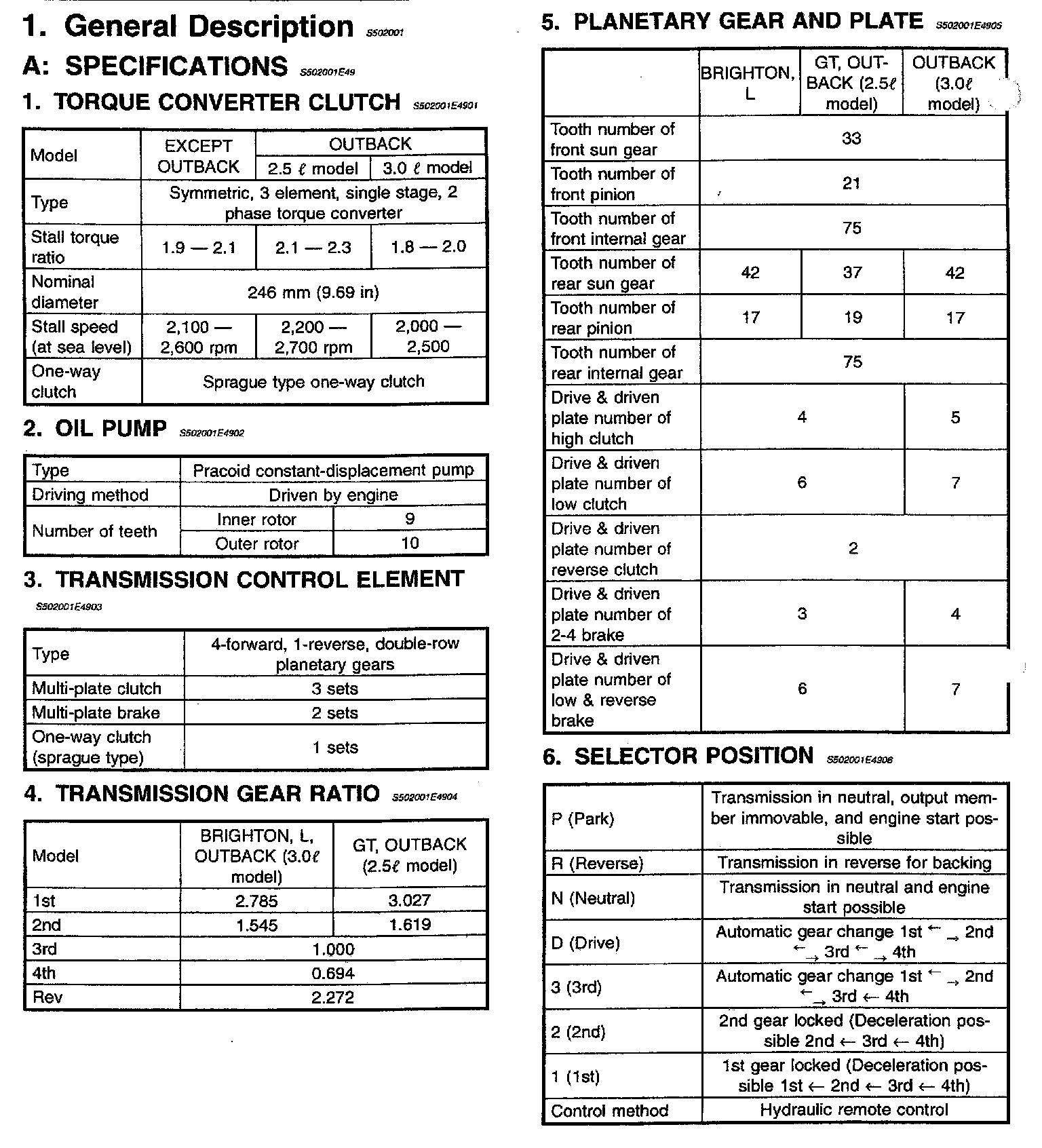

4-spd A/T, Transmission Service Data:

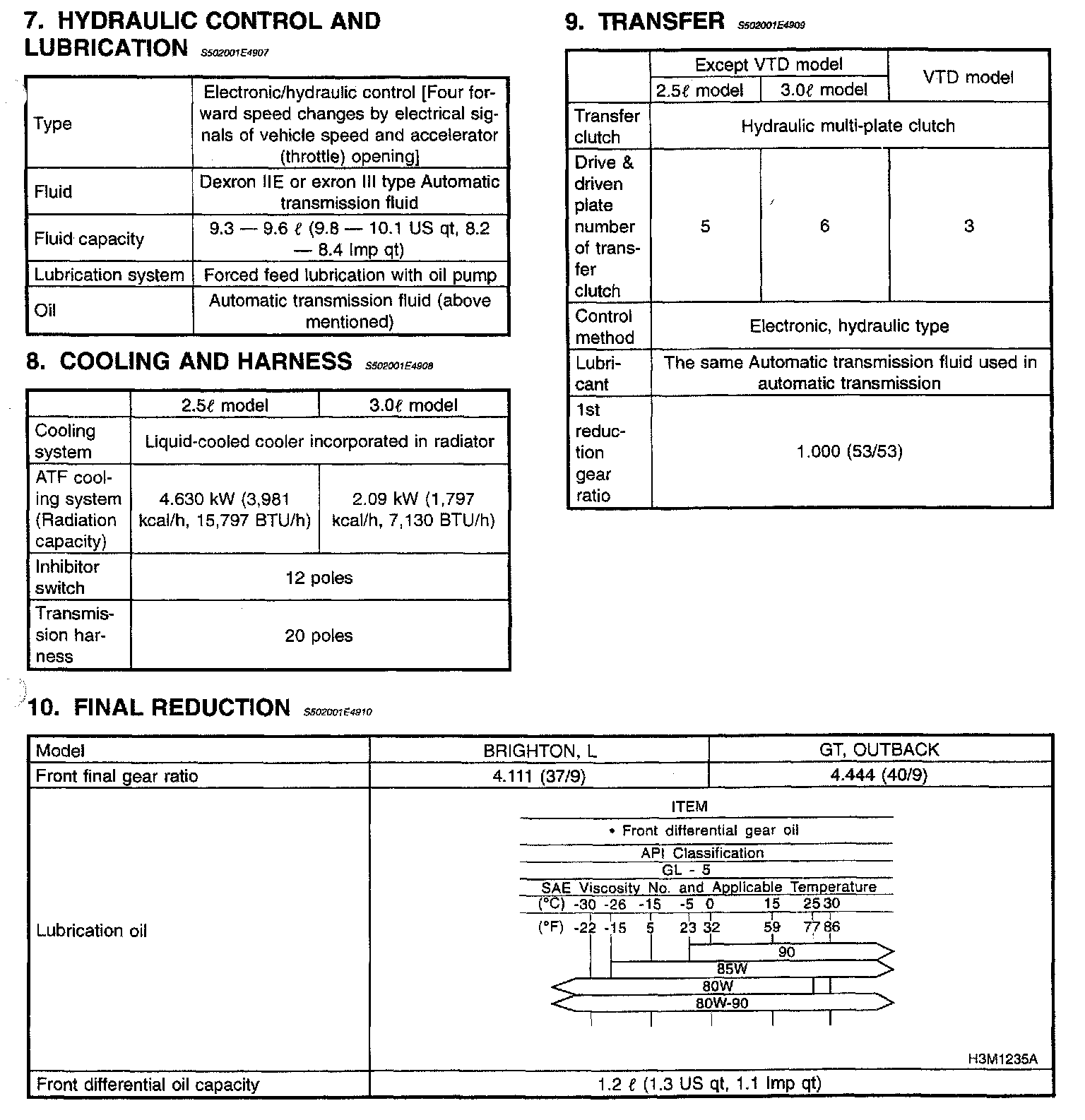

4-spd A/T, Transmission, Transfer Case & Final Reduction Data:
