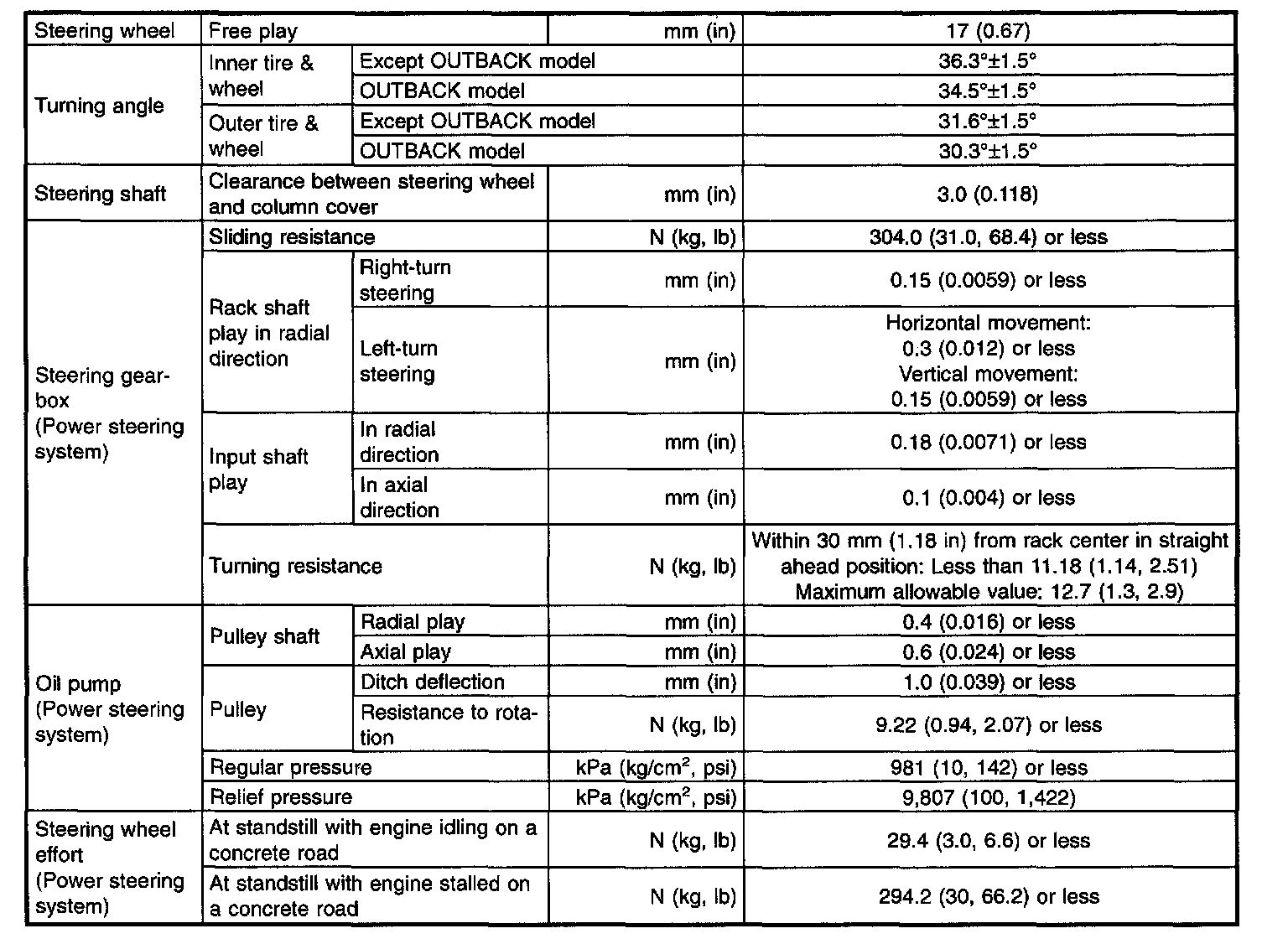

SPECIFICATIONS
CAUTION:

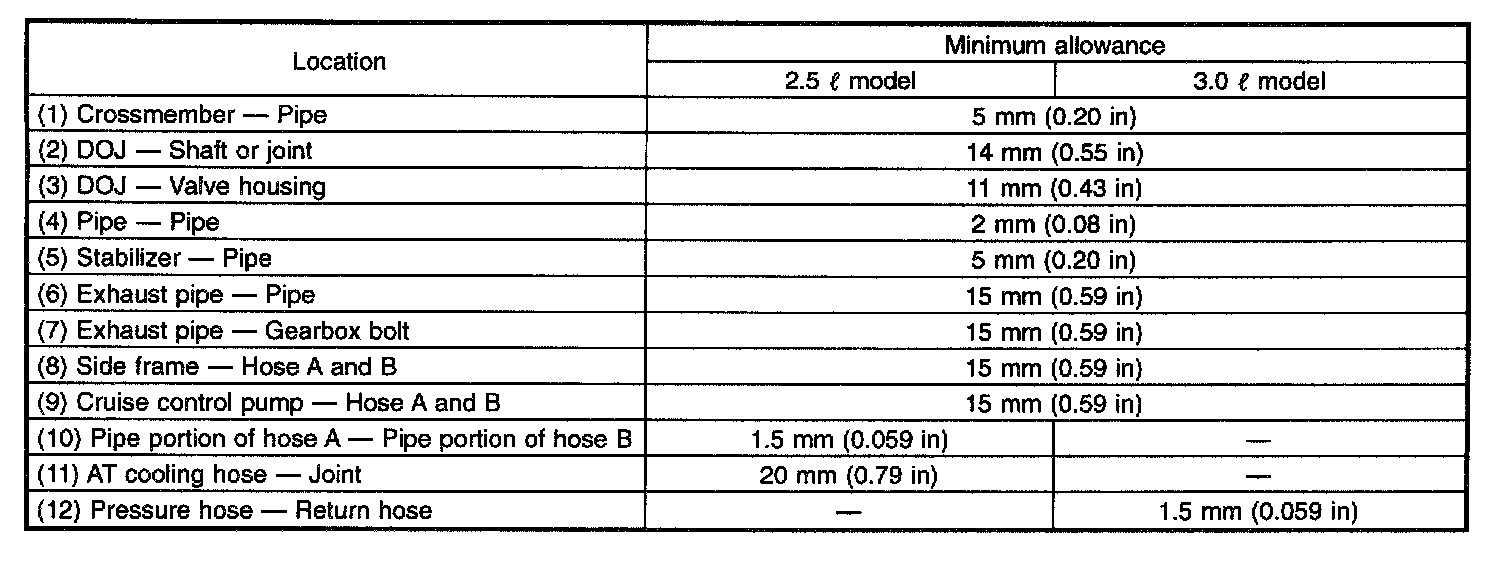

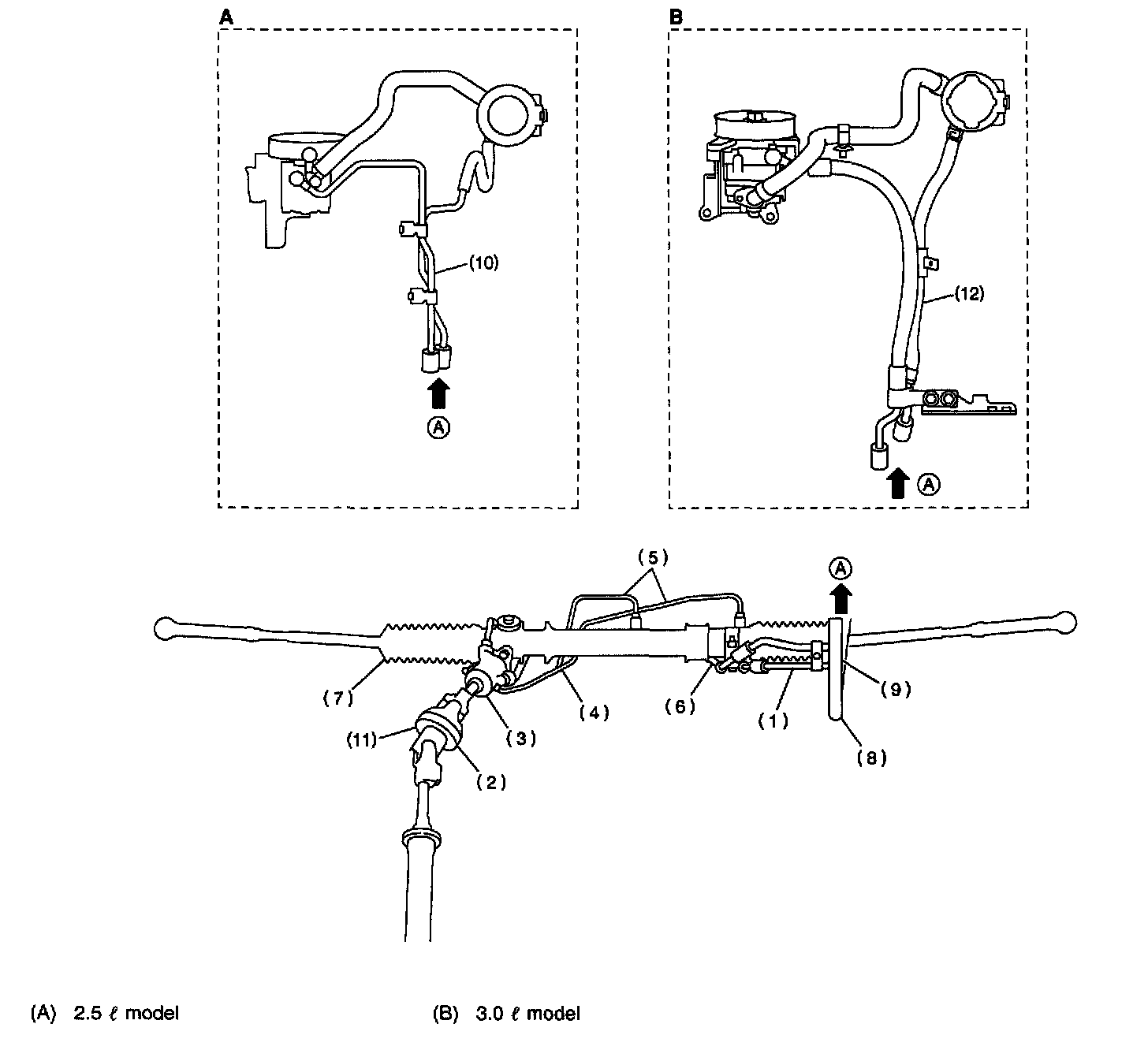

This table lists various clearances that must be correctly adjusted to ensure normal vehicle driving without interfering noise, or any other faults.
