Electrical Specifications
>>
Heating and Air Conditioning
Heating and Air Conditioning
Heater System:

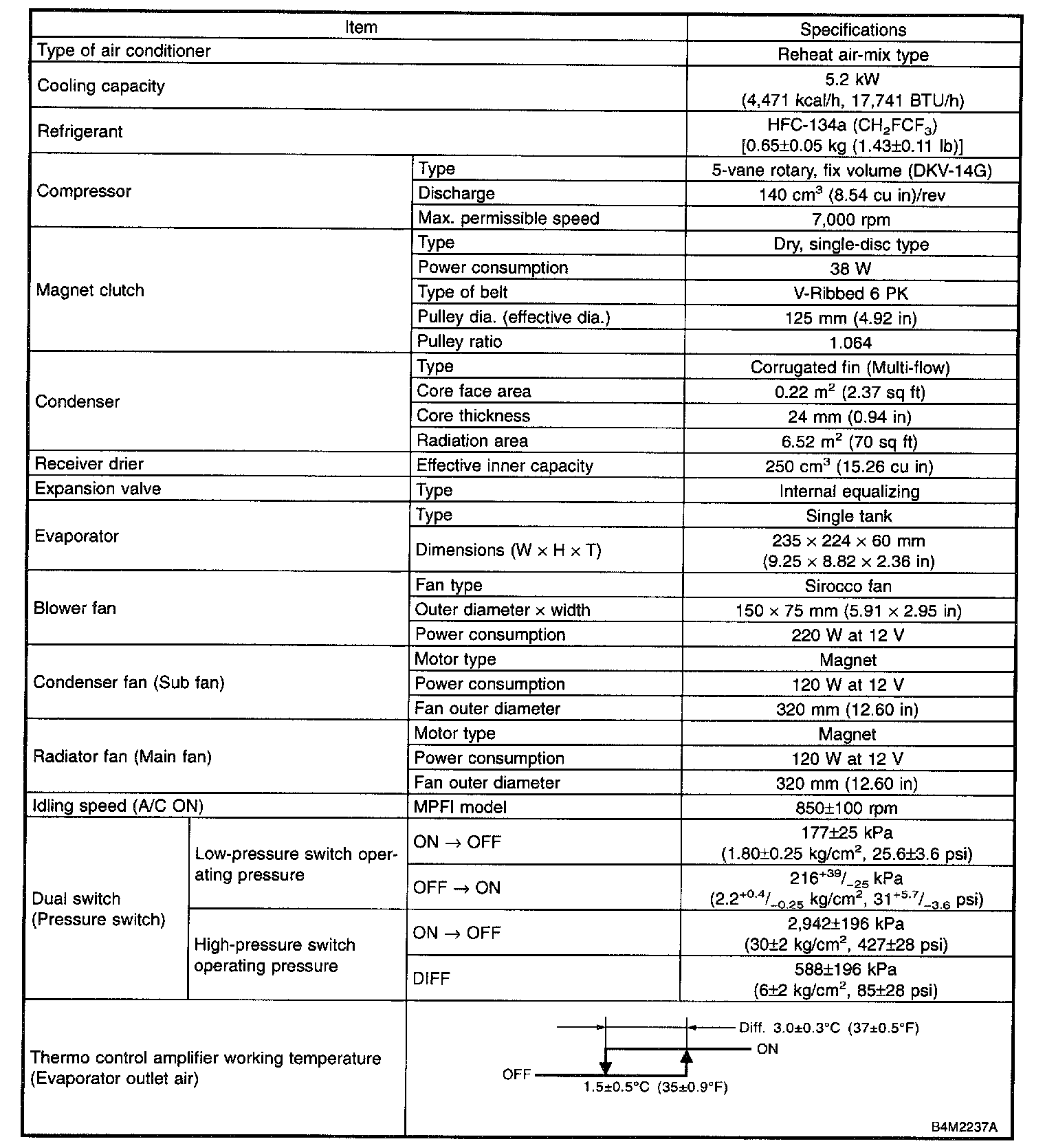

A/C System (4 Cylinder):

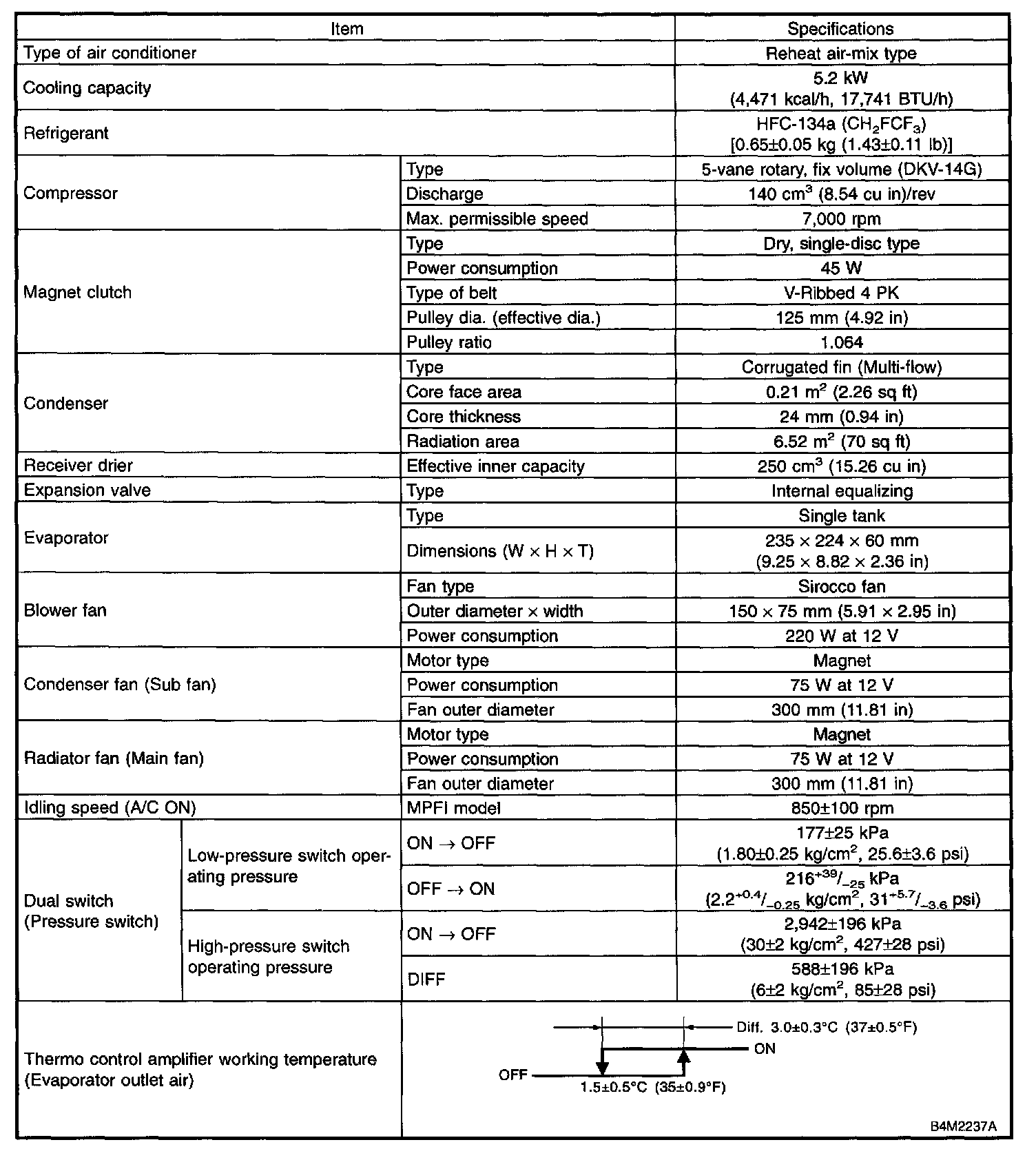

A/C System (6 Cylinder):
