Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Sensor (Auto A/C)

REMOVAL

1. Open front hood.
2. Disconnect ground cable from battery.
3. Disconnect ambient sensor connector.

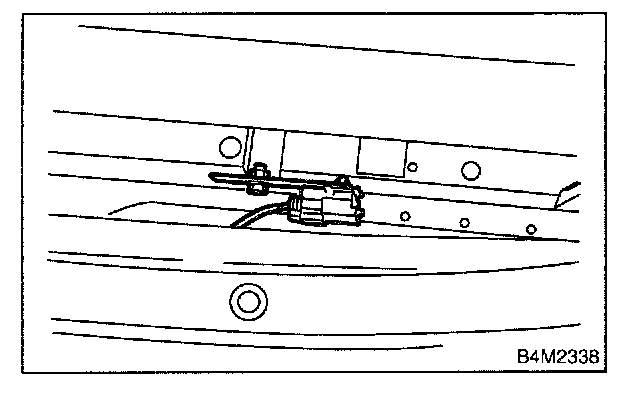

4. Remove ambient sensor from radiator lower panel.

INSTALLATION
Install in the reverse order of removal.
