Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Cruise Control Switch >> Testing and Inspection >> Inhibitor Switch (A/T)

Inhibitor Switch (A/T)

Inhibitor Switch (A/T)

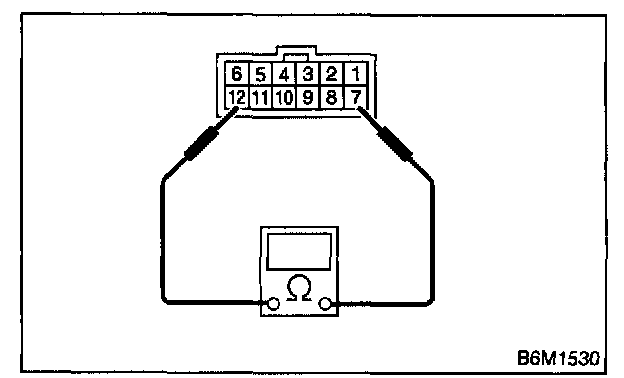

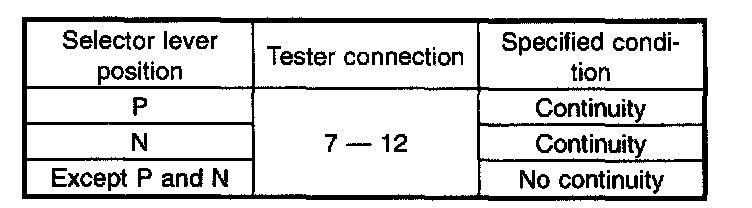

Check continuity between inhibitor switch terminals.
If NG, replace inhibitor switch.
