Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Brake Switch (Cruise Control) >> Testing and Inspection

Brake Switch (Cruise Control): Testing and Inspection

Stop and Brake Switch

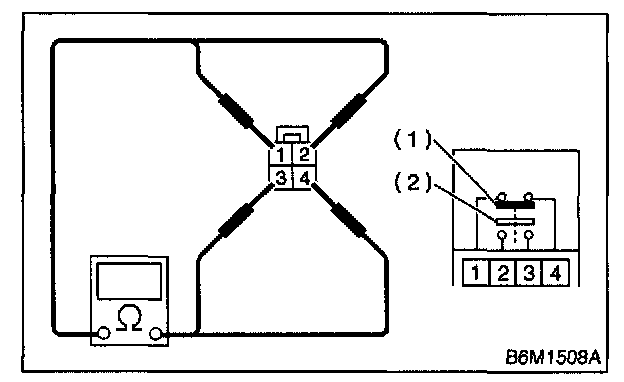

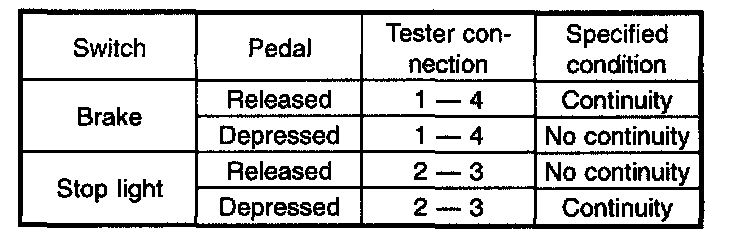

Check continuity brake switch (1) and stop light switch (2) between terminals.
If NG, replace stop and brake switch.
