Rear
REMOVAL1. Disconnect battery ground cable.
2. Lift-up the vehicle.

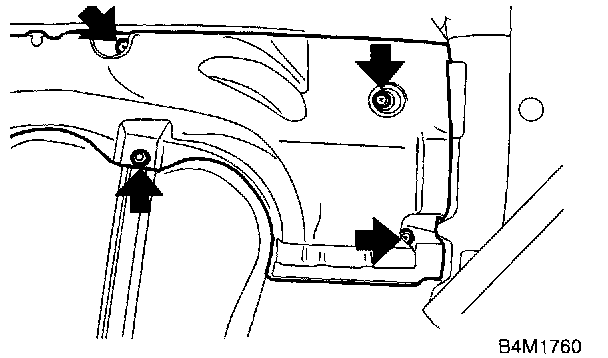

3. Remove fuel tank cover

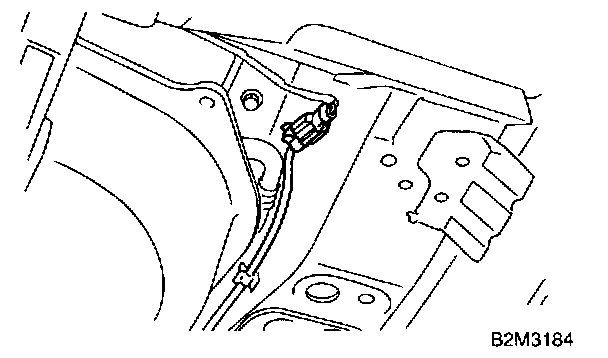

4. Disconnect rear ABS sensor connector.

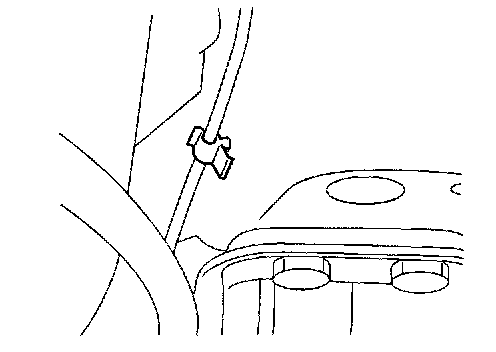

5. Remove rear sensor harness from clip on body side.

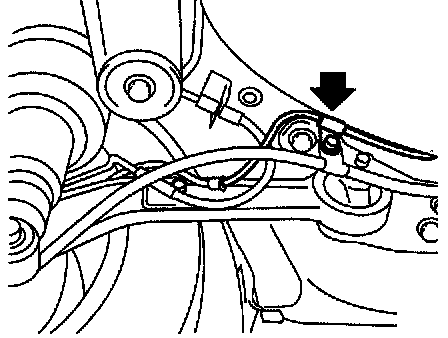

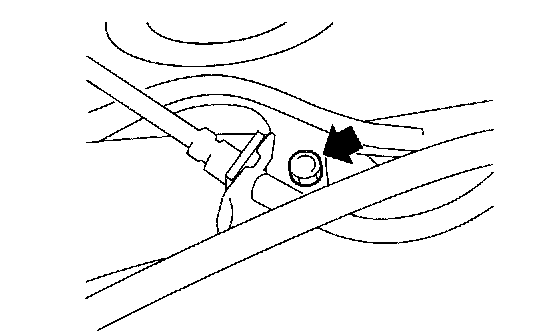

6. Remove bolts which hold rear sensor harness brackets.

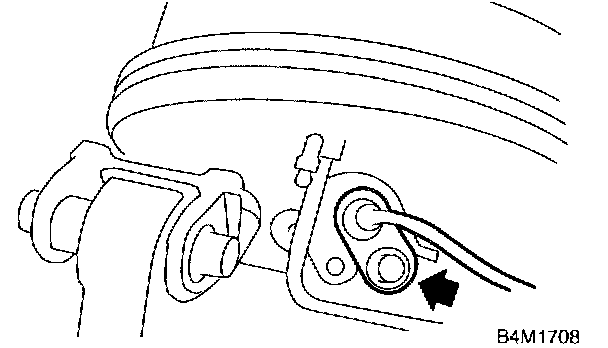

7. Remove rear ABS sensor from rear arm.
8. When inspecting rear tone wheel, remove rear drive shaft as rear tone wheel is unitized with BJ assembly of rear drive shaft.
CAUTION:
- Be careful not to damage pole piece located at tip of the sensor and teeth faces during removal.
- Do not pull sensor harness during removal.
INSTALLATION
1. Install rear drive shaft to the vehicle.

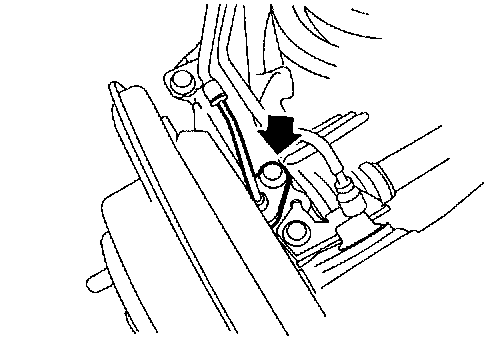

2. Temporarily install rear ABS sensor on rear arm.
CAUTION: Be careful not to strike ABS sensor's pole piece and tone wheel's teeth against adjacent metal parts during installation.

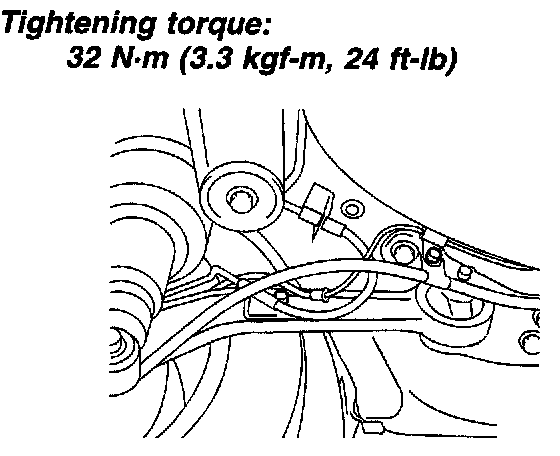

3. Install rear sensor harness brackets in the original positions and install harness on the relic

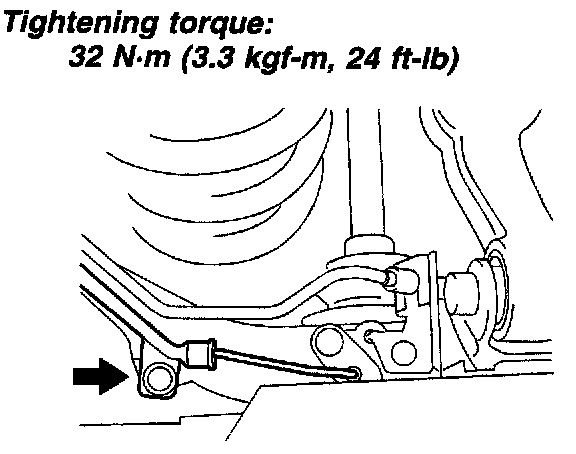

4. Place a thickness gauge between ABS sensor's and tone wheel's tooth face. After standard clearance is obtained over the entire perimeter, tighten ABS sensor on rear arm to specified torque.
ABS sensor standard clearance:
0.44 - 0.94 mm (0.0173 - 0.0370 inch)
Tightening torque:
32 Nm (3.3 kgf-m, 24 ft. lbs.)
CAUTION: Check the marks on the harness to make sure that no distortion exists. (RH: white, LH: yellow)
NOTE: If the clearance is outside specifications, readjust.
5. After confirmation of the ABS sensor clearance, connect connector to ABS sensor and install fuel tank cover.
6. Connect connector to battery ground cable.
