Front

REMOVAL
1. Disconnect battery ground cable.
2. Disconnect front ABS sensor connector located next to front strut mounting house in engine compartment.

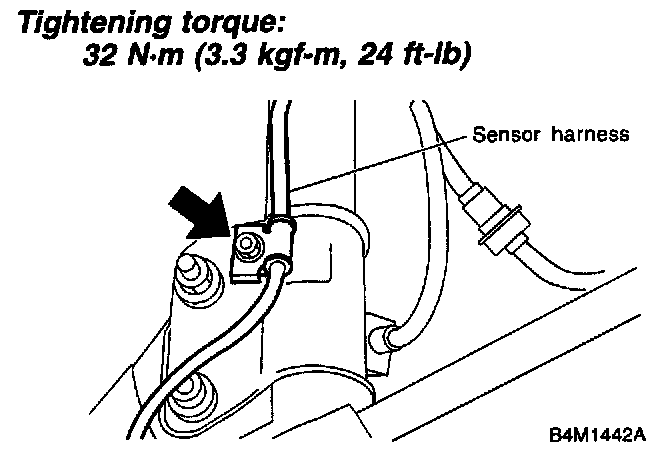

3. Remove bolts which secure sensor harness to strut.





4. Remove bolts which secure sensor harness to body.

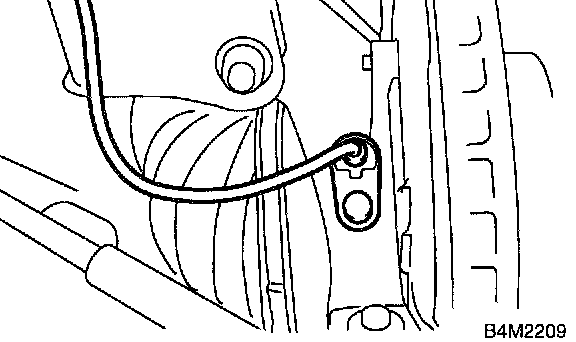

5. Remove bolts which secure front ABS sensor to housing, and remove front ABS sensor.





CAUTION:
- Be careful not to damage pole piece located at tip of the sensor and teeth faces during removal.
- Do not null sensor harness during removal.

INSTALLATION
1. Temporarily install front ABS sensor on housing.





CAUTION: Be careful not to strike ABS sensor's pole piece and tone wheel's teeth against adjacent metal parts during installation.

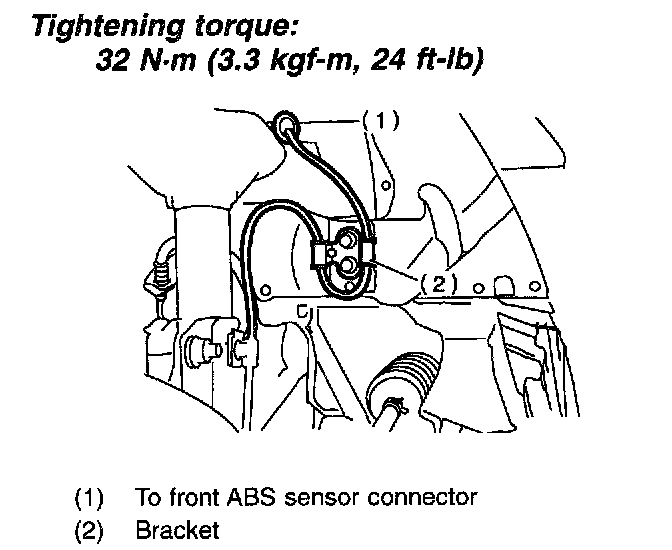

2. Install front ABS sensor on strut and wheel apron bracket.

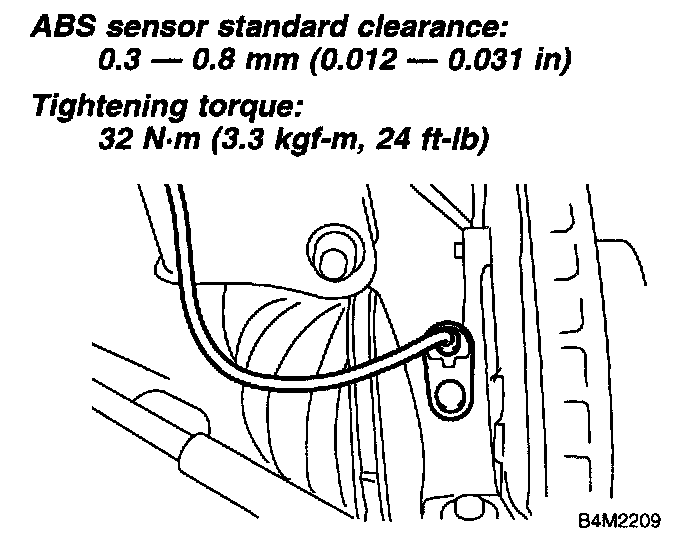

3. Place a thickness gauge between ABS sensor's and tone wheel's tooth face. After standard clearance is obtained over the entire perimeter, tighten ABS sensor on housing to specified torture.

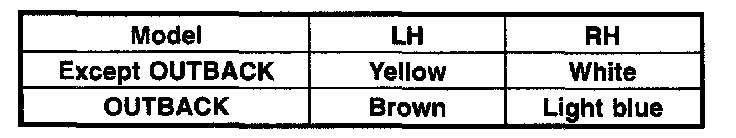

CAUTION: Check the marks on the harness to make sure that an distortion exists.

NOTE: If the clearance is outside specifications, readjust.

4. After confirmation of the ABS sensor clearance, connect connector to ABS sensor.
5. Connect connector to battery ground cable.
