Sunroof / Moonroof Switch: Service and Repair

Sunroof Switch

REMOVAL

1. Disconnect ground cable from battery.

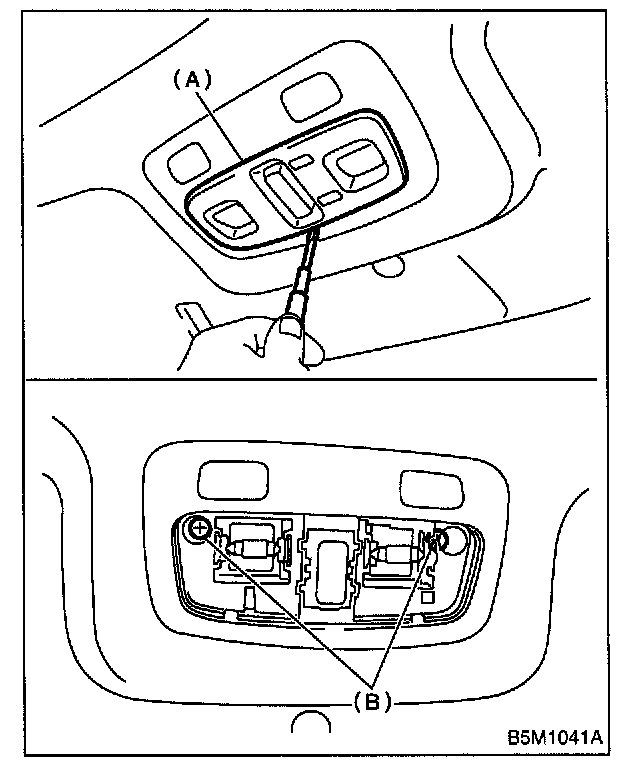

2. Remove spot light lens (A) and sunroof switch mounting screw (B).
3. Disconnect harness connectors and remove sunroof switch.

INSTALLATION
Install in the reverse order of removal.
