Seat Belt: Service and Repair

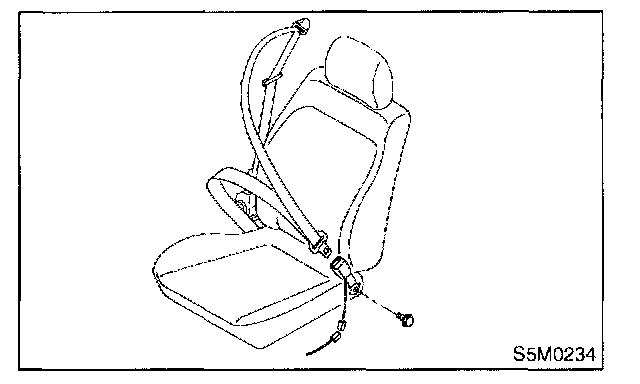

REMOVAL

OUTER BELT (FRONT)
1. Fold backrest all the way forward, and then move front seat all the way forward.
2. Turn ignition switch OFF, disconnect ground cable from battery, and wait for more than 20 seconds before starting work.

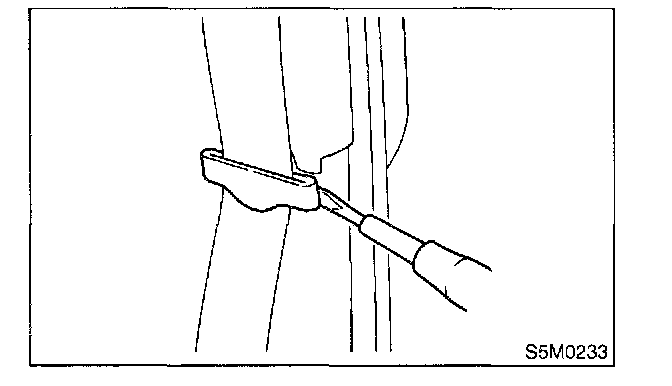

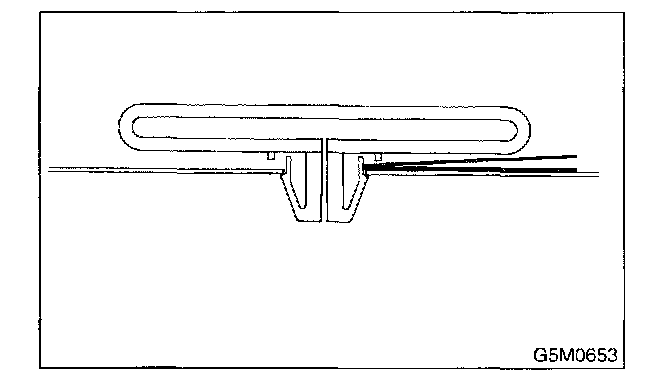

3. Remove center pillar lower trim.

4. Remove bracket.

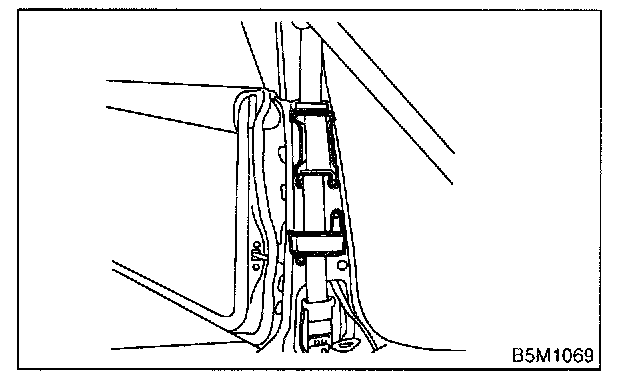

5. Remove webbing guide.

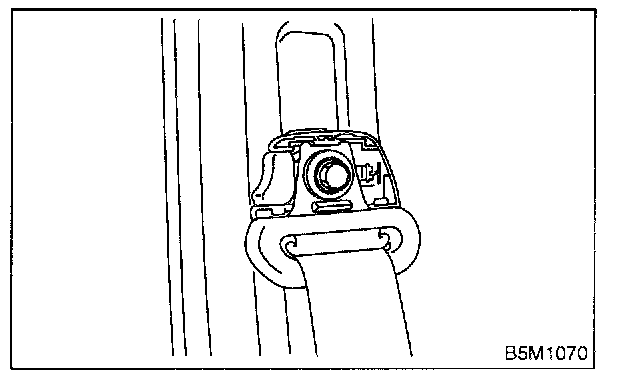

6. Remove anchor cover. Loosen shoulder anchor bolt, and then detach shoulder anchor from center pillar.

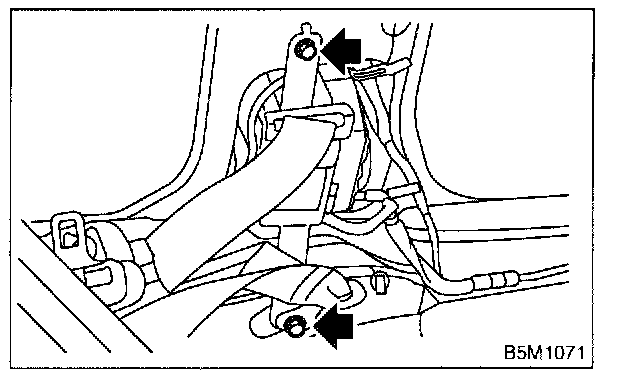

7. Turn over the floor mat to remove bolt.
8. Disconnect yellow connector of pretensioner harness, and remove outer belt (front).

CAUTION:
- Do not drop or apply any impact to pretensioner.
- Pretensioner and bracket should be treated as an assembly. Do not attempt to disassemble it.

INNER BELT (FRONT)
1. Disconnect connector.

2. Remove anchor bolt, and then detach inner belt.

INSTALLATION

OUTER BELT (FRONT)
Install in the reverse order of removal.

CAUTION:
- The parts on left and right are not identical. Before installation, make sure that the correct part is used.
- Be careful not to twist belts during installation.

INNER BELT (FRONT)
Install in the reverse order of removal.
