Displaying and Reading Trouble Codes

OPERATION
1. Turn the ignition switch ON.

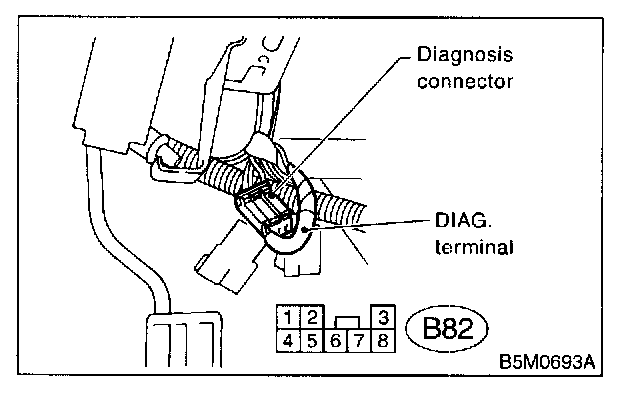

2. Connect the diagnosis terminal to diagnosis connector terminal No.2 in the driver's seat lower cover area.
3. Read trouble code by identifying the way the air bag warning light flashes.

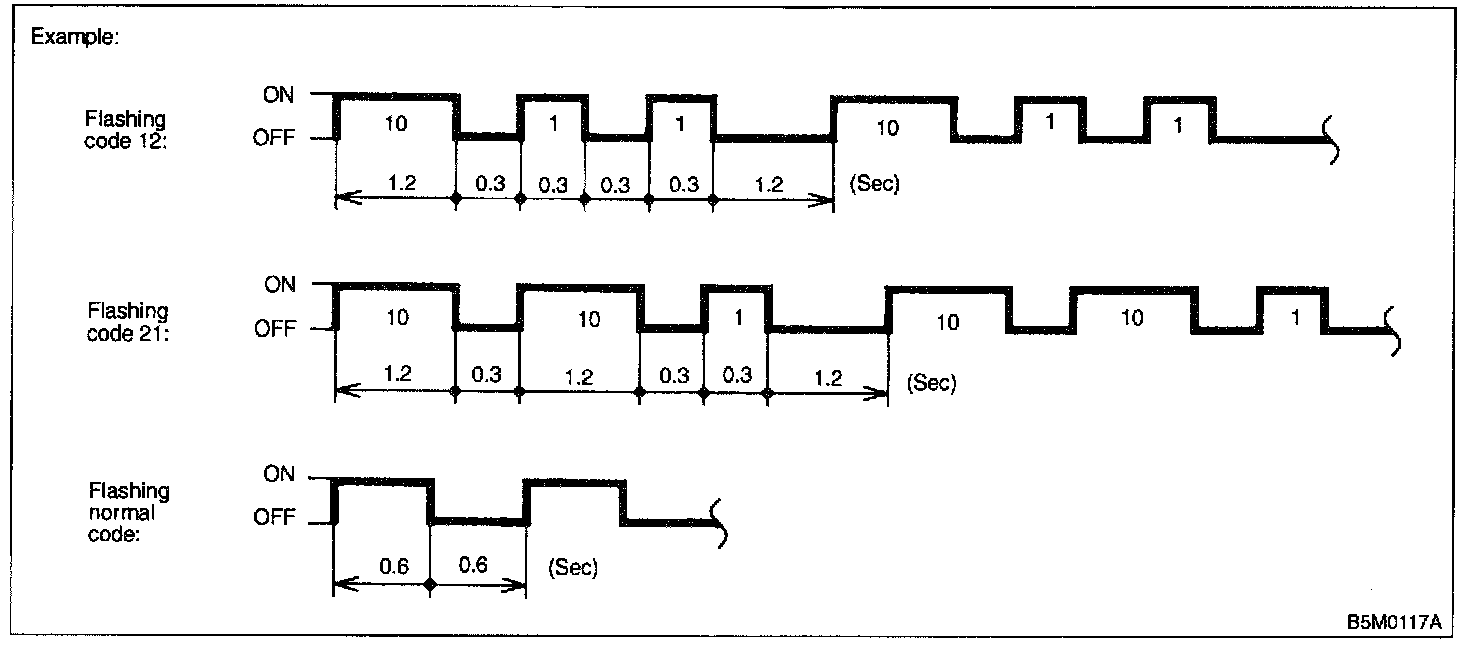

The airbag warning light flashes a code corresponding to the faulty parts.
The long segment (1.2 sec on) indicates a "ten", and the short segment (0.3 sec on) indicates a "one".

NOTE:
- "List of Diagnostic Trouble Code". Restraint Systems

- "Airbag Warning Light Failure" . Non-Trouble Code Diagnostic Procedures

4. Turn the ignition switch OFF, and disconnect the diagnosis terminal from the diagnosis connector terminal No 2.
5. Wind tape around the diagnosis terminal and return it to its original position.
