Side Airbag Sensor

REMOVAL
1. Turn ignition switch OFF.
2. Disconnect the ground cable from the battery, and wait for at least 20 seconds before starting work.
3. Remove center pillar lower trim.
4. Remove Outer Belt (FRONT).

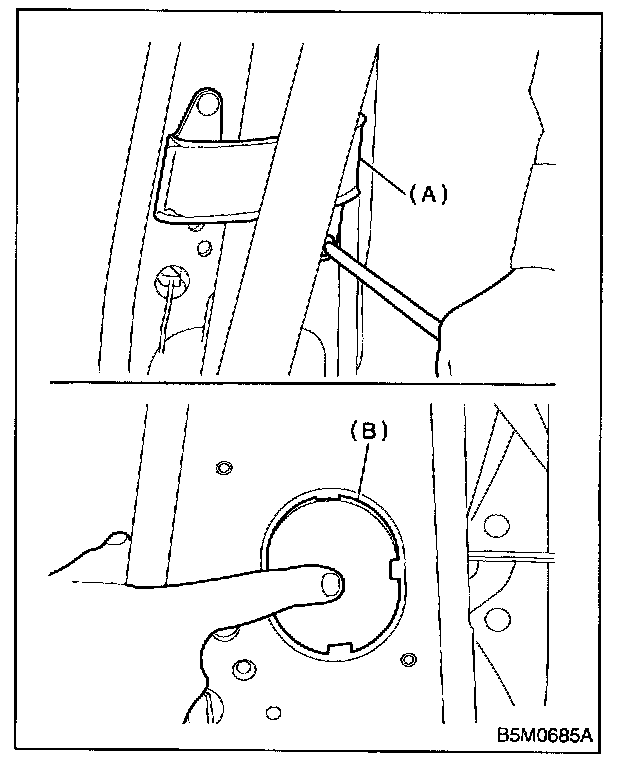

5. Remove bracket (A), and then remove cap (B).

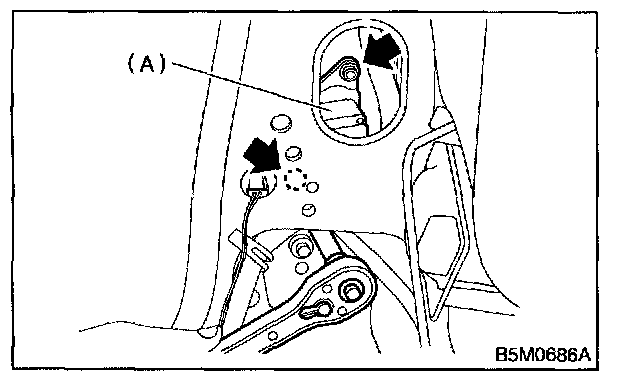

6. Using E12 TORX(R) remove two TORX(R) nuts, and then detach side airbag sensor (A).

INSTALLATION

CAUTION: Use new TORX(R) nuts during re-assembly.

Install in the reverse order of removal.
