Front Sub Sensor Harness

REMOVAL
1. Turn ignition switch OFF.
2. Disconnect the ground cable from the battery, and wait for at least 20 seconds before starting work.
3. Remove instrument panel.

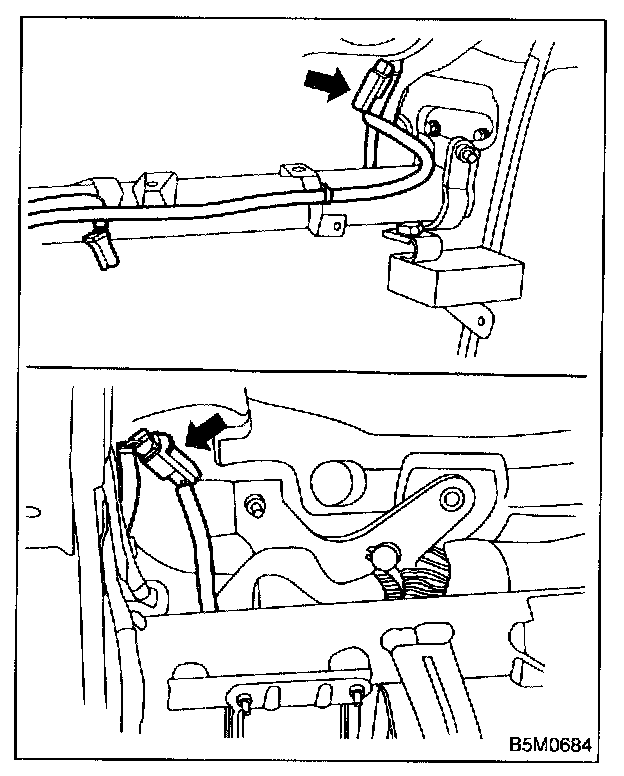

4. Disconnect front sub sensor connector (blue) from airbag main harness.
5. Remove front bumper.




6. Disconnect connector from front sub sensor.
7. Remove wiring harness clips.

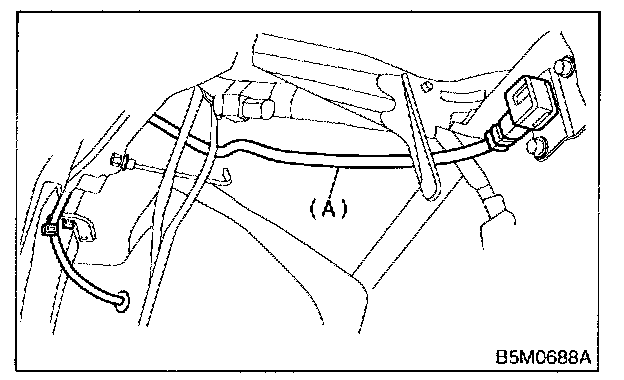

8. Remove grommet, and then detach front sub sensor harness (A).

INSTALLATION
Install in the reverse order of removal.
