Front Sub Sensor

REMOVAL
1. Turn ignition switch OFF.
2. Disconnect the ground cable from the battery, and wait for at least 20 seconds before starting work.
3. Remove front bumper.

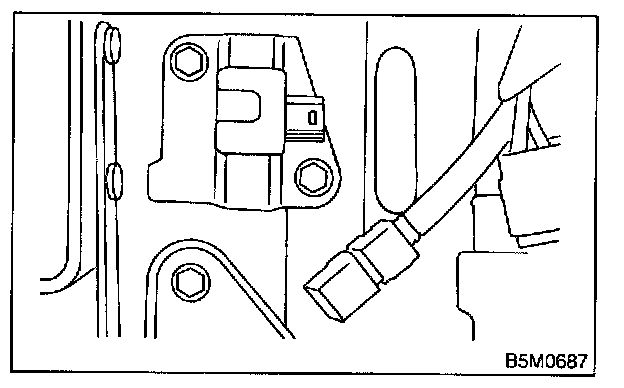

4. Disconnect connector from front sub sensor.

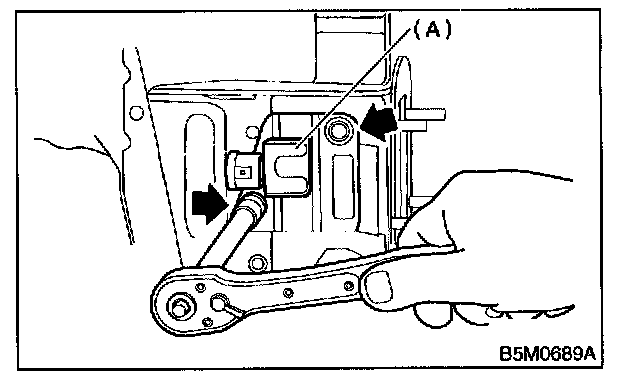

5. Remove front sub sensor (A).

INSTALLATION
Install in the reverse order of removal.
