Electrical Diagrams

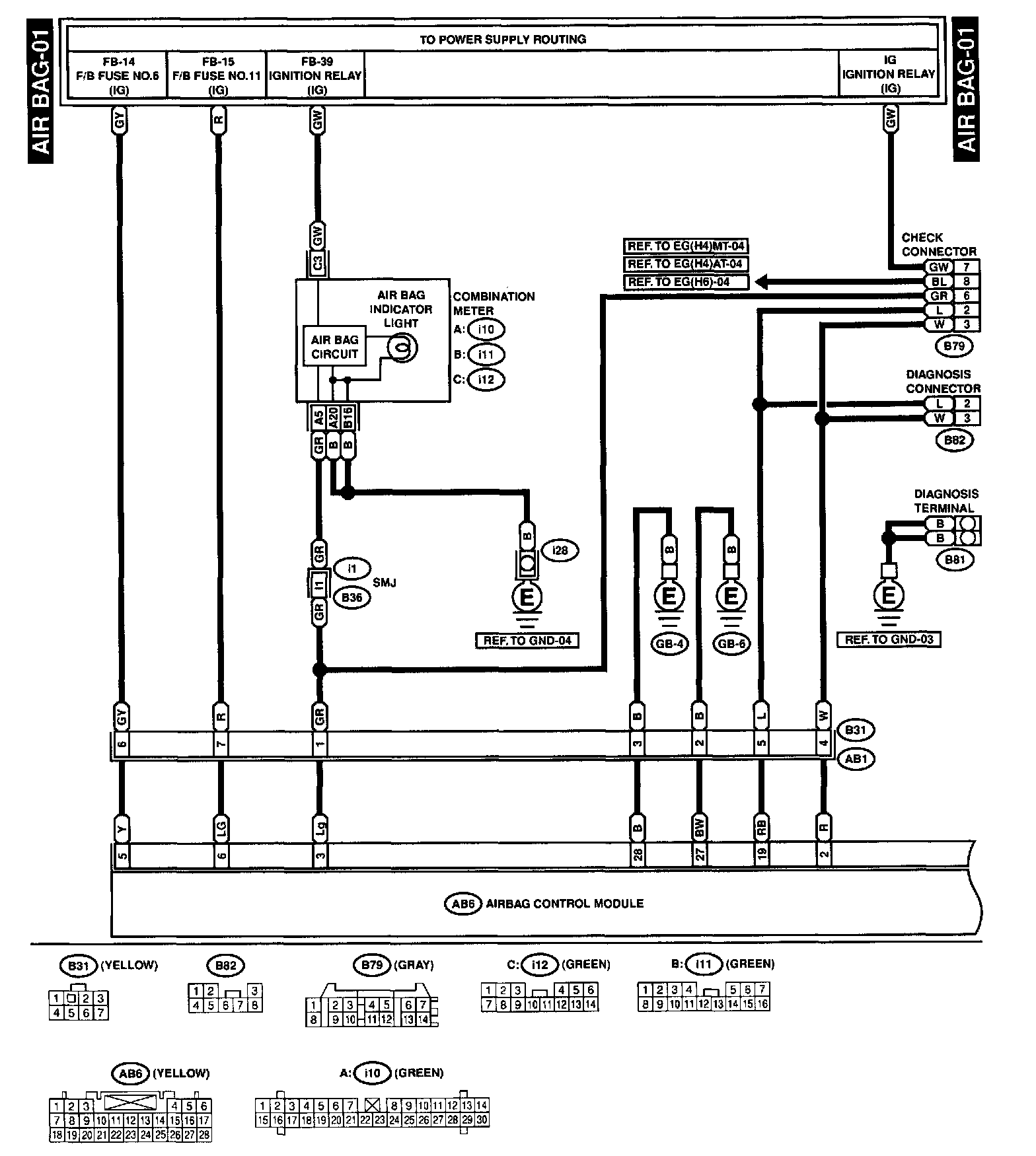

AIR BAG-01 - Airbag System:

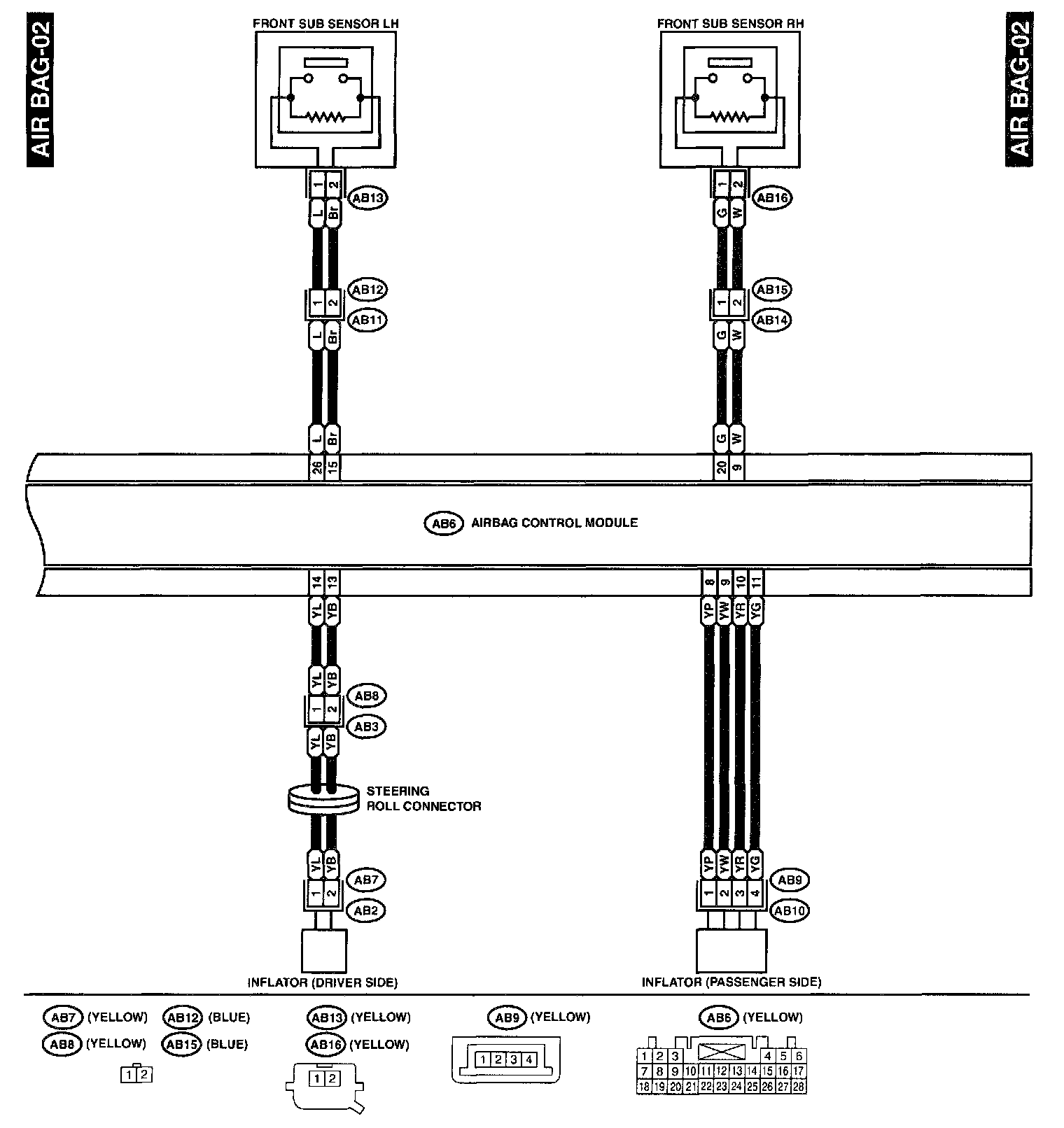

AIR BAG-02 - Airbag System:

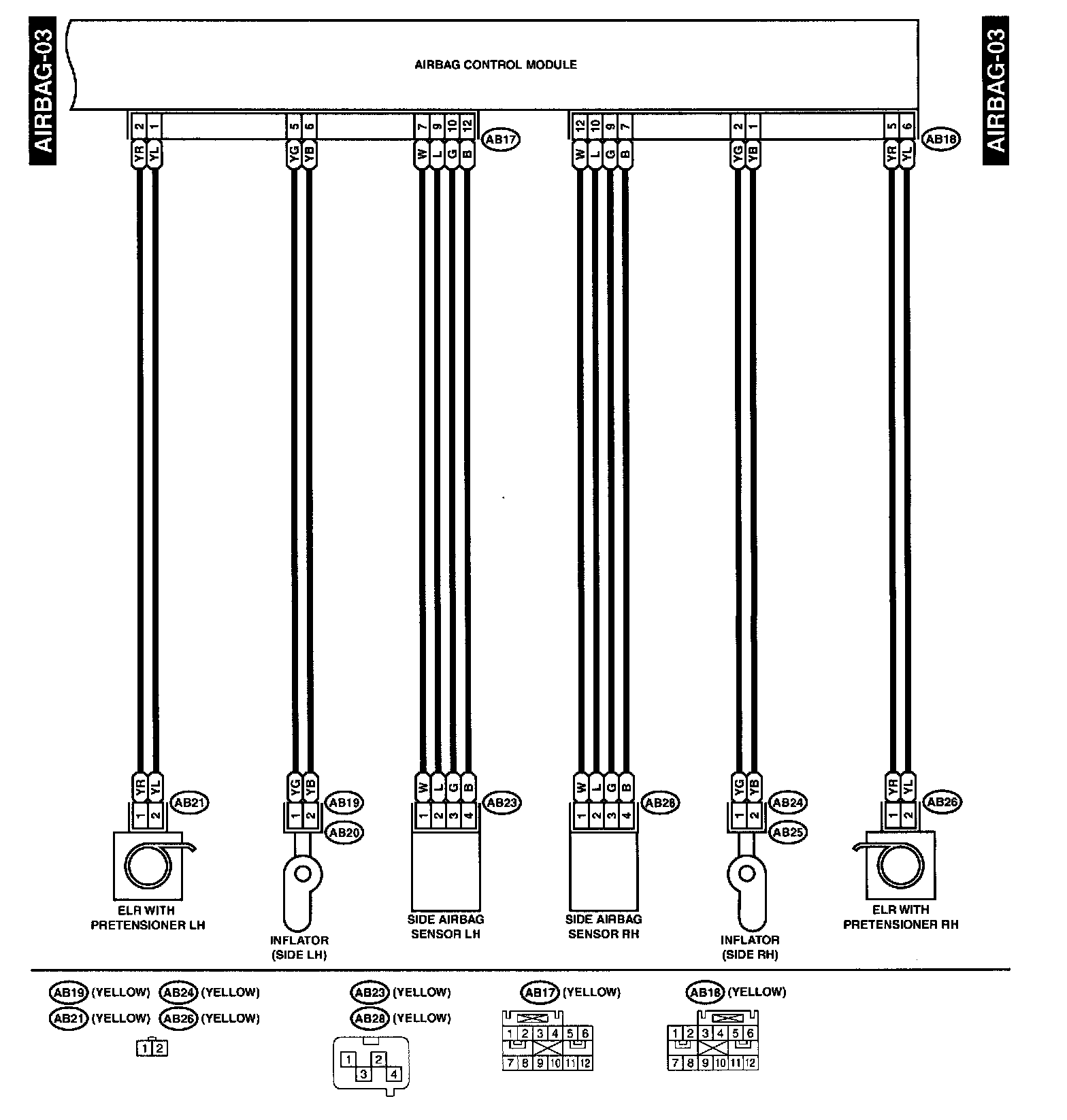

AIR BAG-03 - Airbag System:
