Clockspring Assembly / Spiral Cable: Service and Repair

Clockspring (Roll Connector) Assembly

A: REMOVAL
1. Turn ignition switch off.
2. Disconnect ground cable from battery and wait for at least 20 seconds before starting work.
3. Remove instrument panel lower cover.

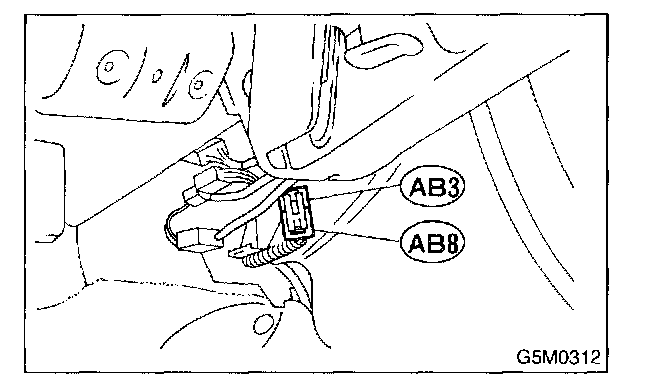

4. Disconnect airbag connector (AB3) and (AB8) below steering column.







5. Remove driver's airbag module.
6. Remove steering wheel.
7. Remove steering column cover.

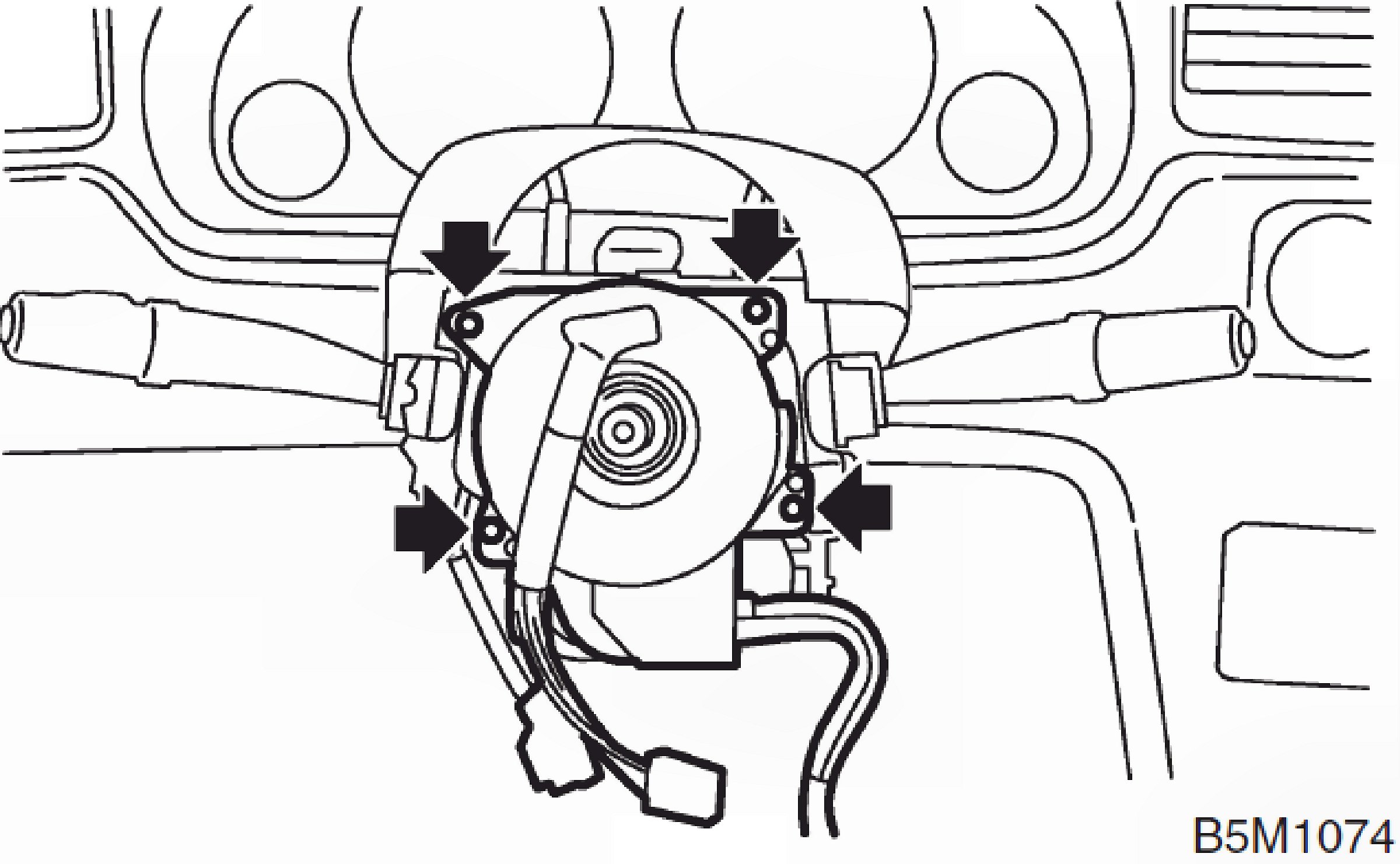

8. Remove screws, and then remove roll connector.






B: INSTALLATION
Install in the reverse order of removal.

C: INSPECTION
Check for the following, and replace damaged parts with new parts.
- Combination switch and roll connector is cracked or deformed

ADJUSTMENT

1. Check that front wheels are positioned in straight ahead direction.

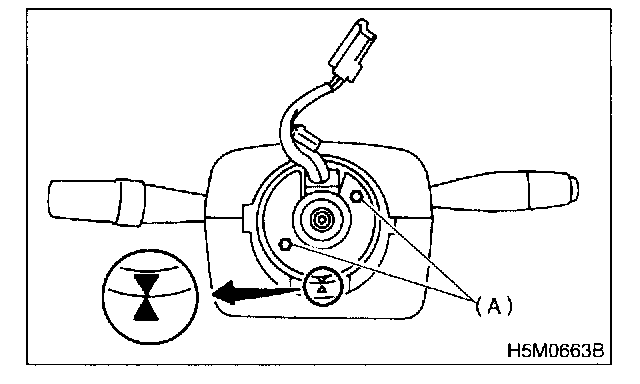

2. Turn roll connector pin (A) clockwise until it stops.







3. Turn roll connector pin (A) approximately 2.65 turns until the marks are aligned.
