Main Harness

REMOVAL
1. Turn ignition switch OFF.
2. Disconnect the ground cable from the battery and wait for at least 20 seconds before starting work.
3. Remove instrument panel.

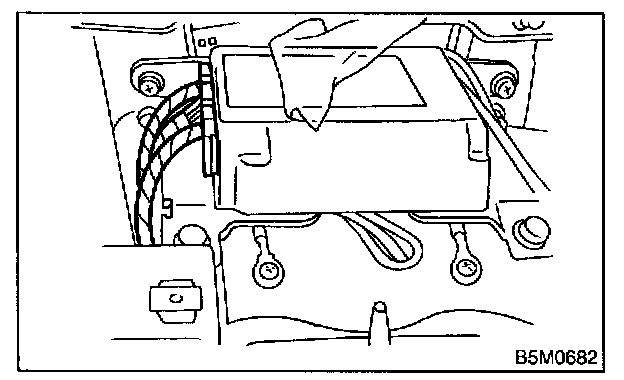

4. Disconnect connector from airbag control module.




5. Disconnect front sub sensor connector (blue) from airbag main harness.

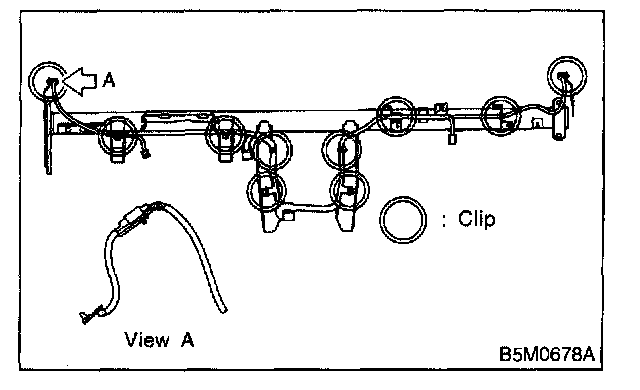

6. Detach clips from steering support beam, and remove main harness.

INSTALLATION
Install in the reverse order of removal.
