Air Bag Control Module: Service and Repair

REMOVAL

CAUTION:
- Do not disassemble the airbag control module.
- If the airbag control module is deformed or if water damage is suspected, replace the airbag control module with a new genuine part.
- Do not drop the airbag control module.
- After removal, keep the airbag control module on a dry, clean surface away from moisture, heat, and dust.

1. Turn ignition switch OFF.
2. Disconnect the ground cable from the battery, and wait for at least 20 seconds before starting work.
3. Remove console box.
4. Disconnect connector from airbag control module.

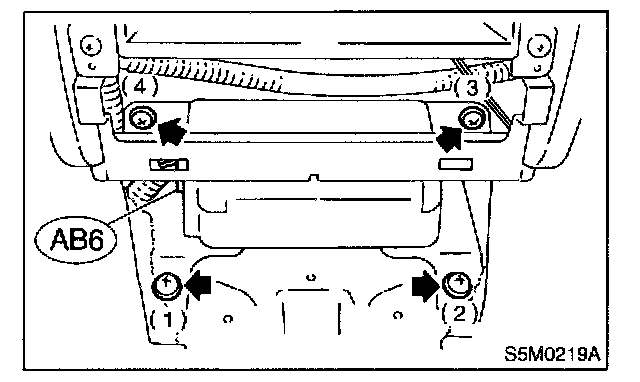

5. Using T40(R) TORX bit (Tamper resistant type), remove four TORX(R) bolts in the order shown in the figure.

INSTALLATION

CAUTION: Use new TORX(R) bolts during re-assembly. Install in the reverse order of removal.
