Pinout Values and Diagnostic Parameters

A: ELECTRICAL SPECIFICATION

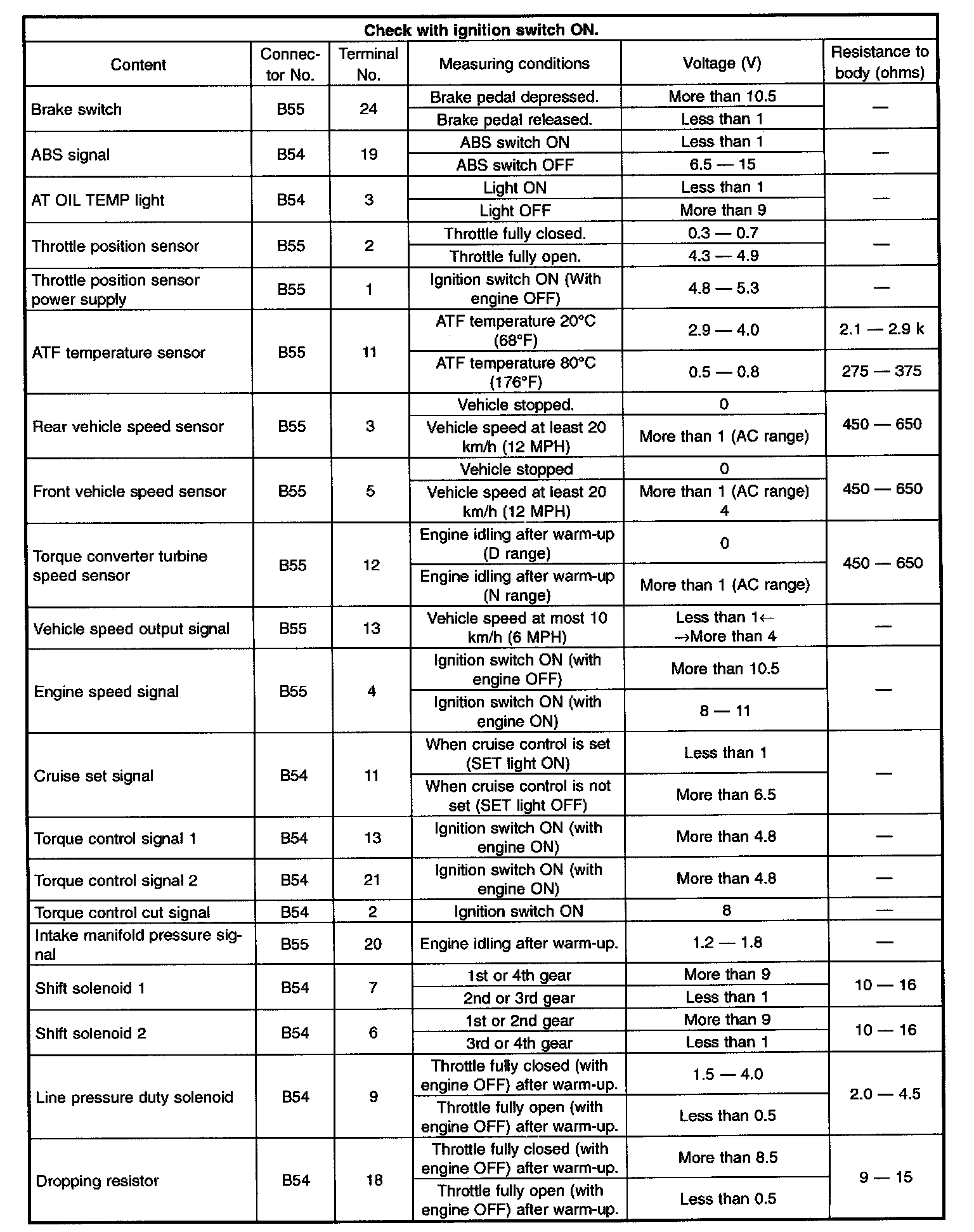

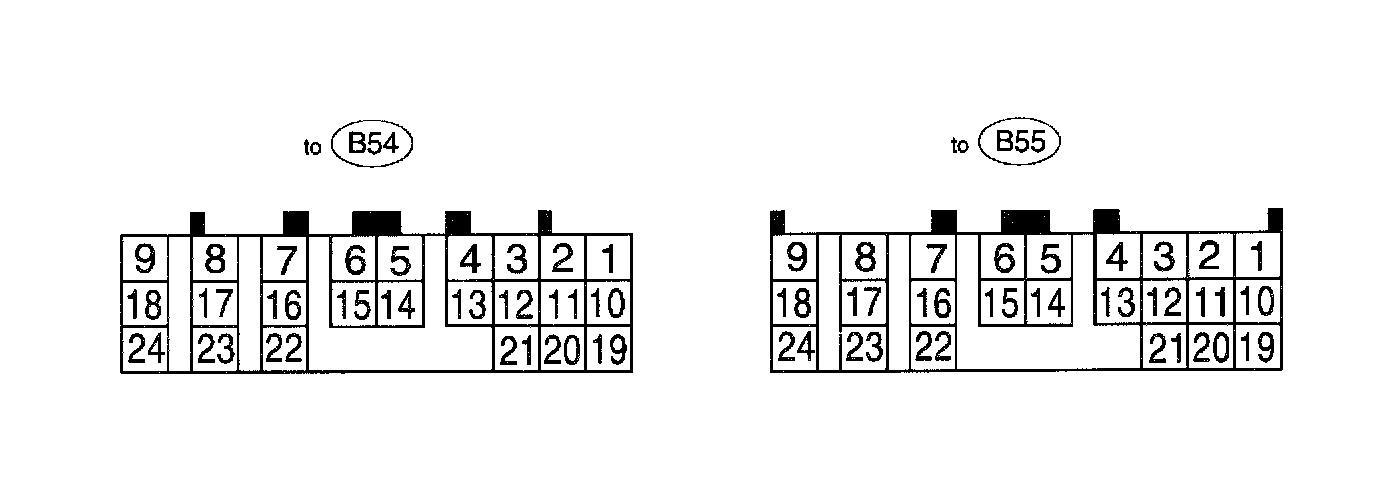

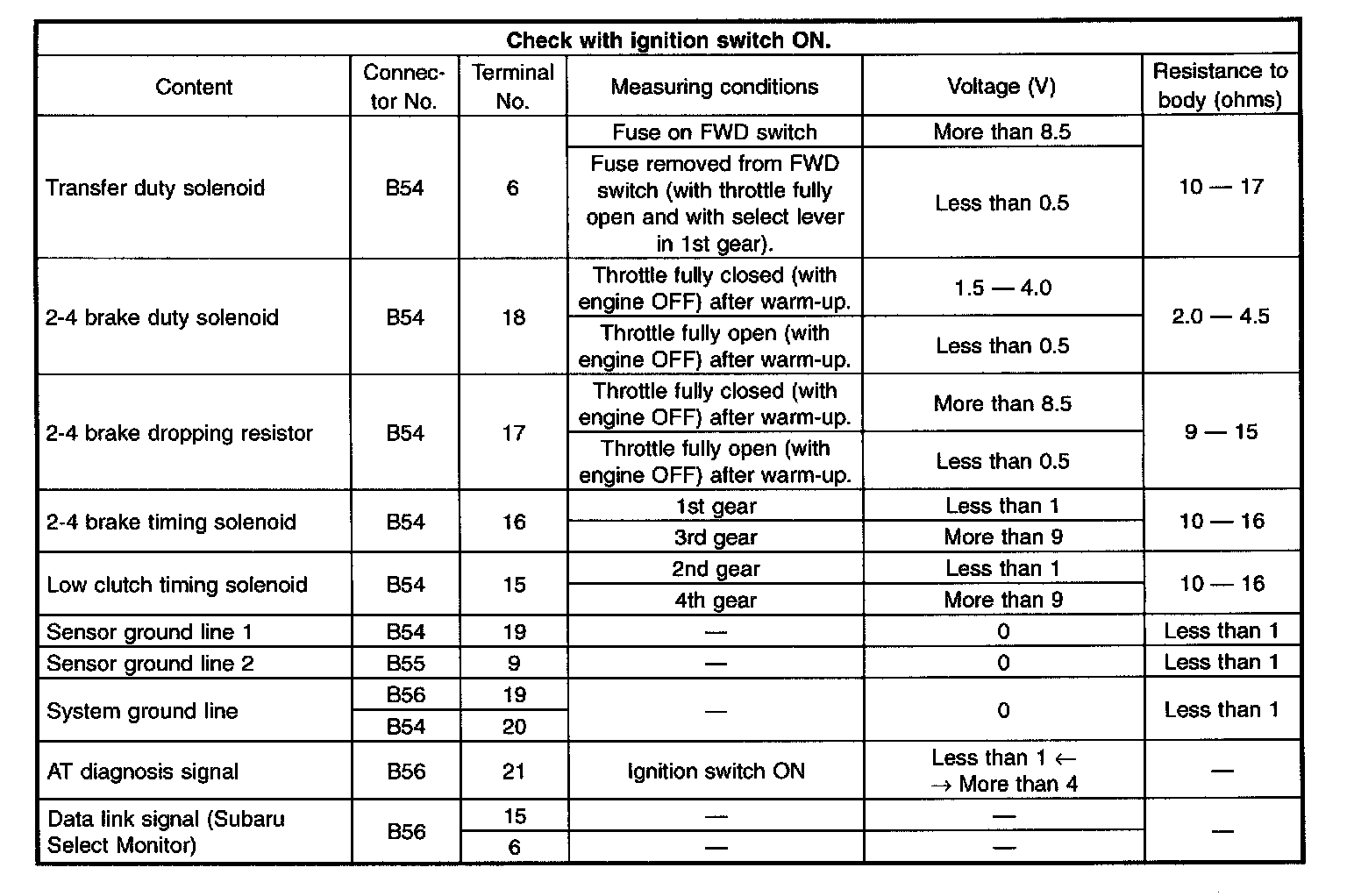

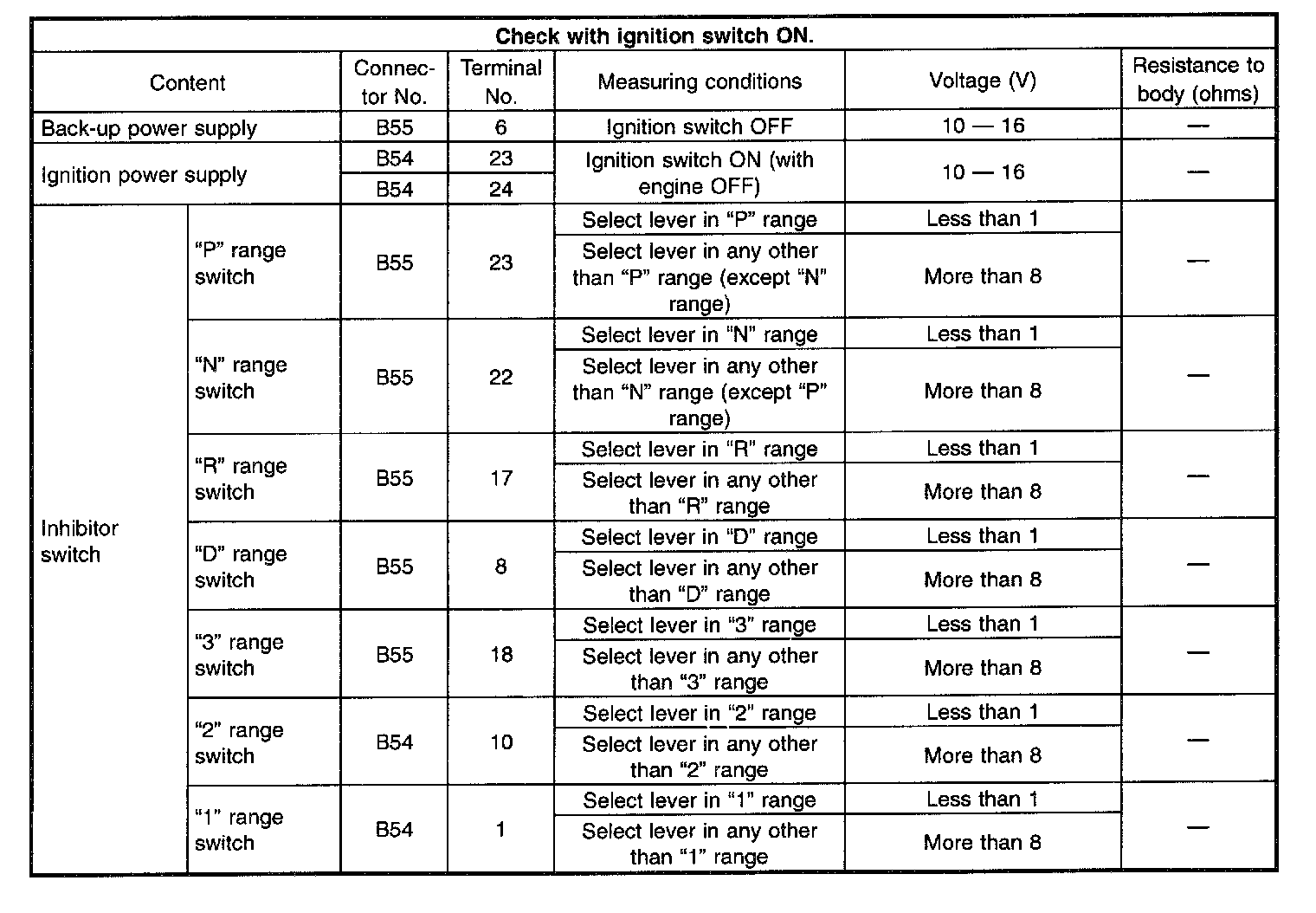

1. WITHOUT VDC SYSTEM

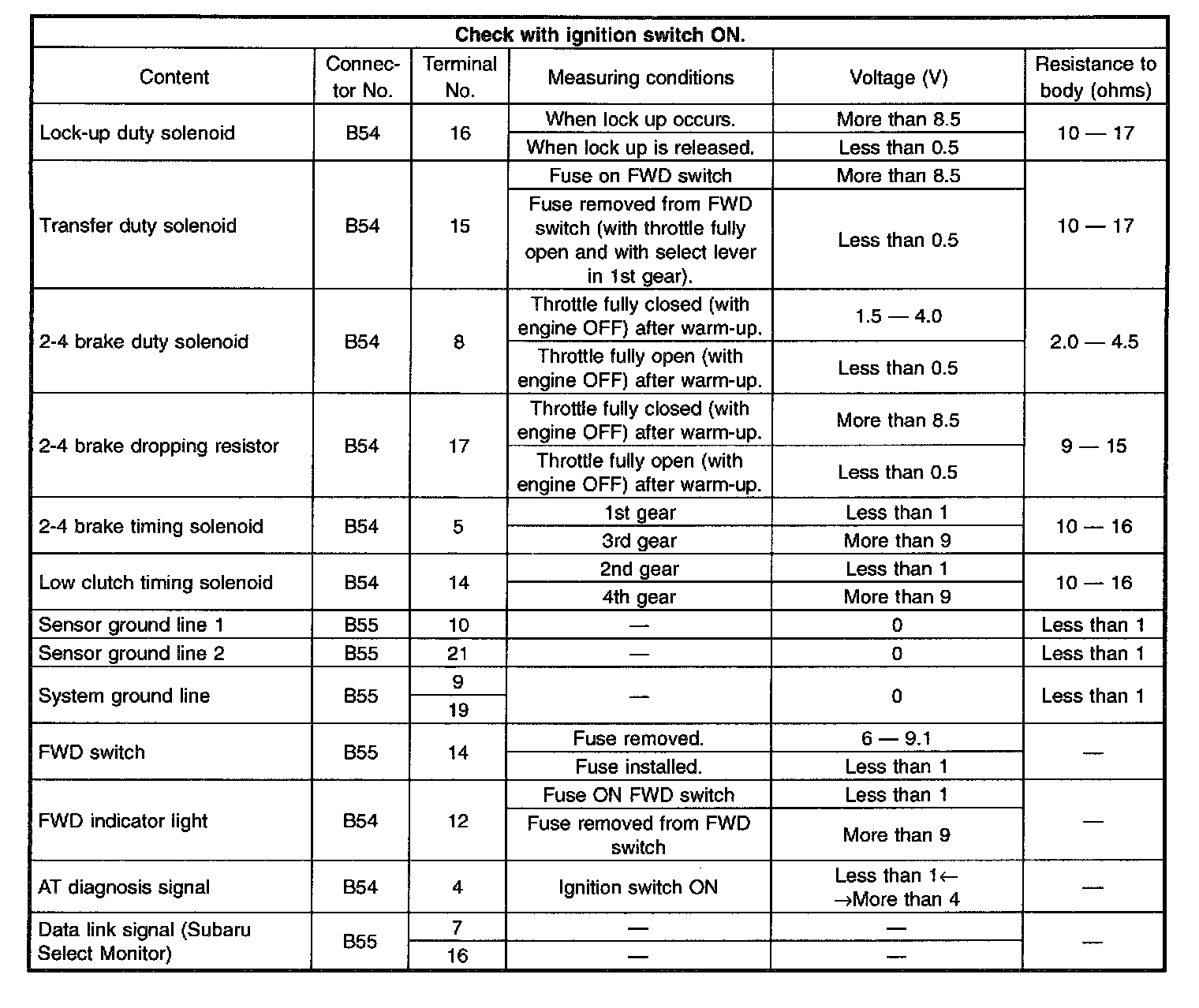

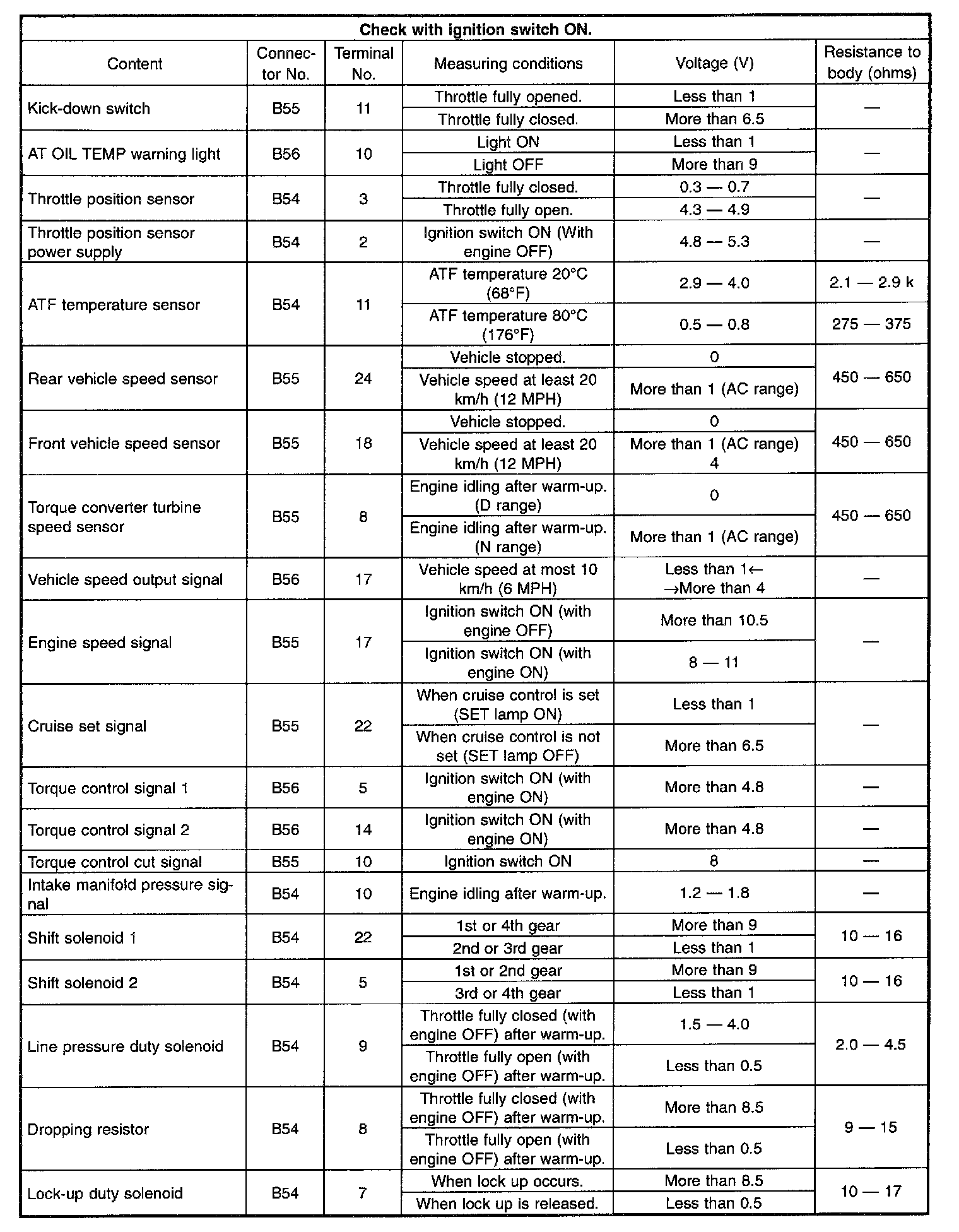

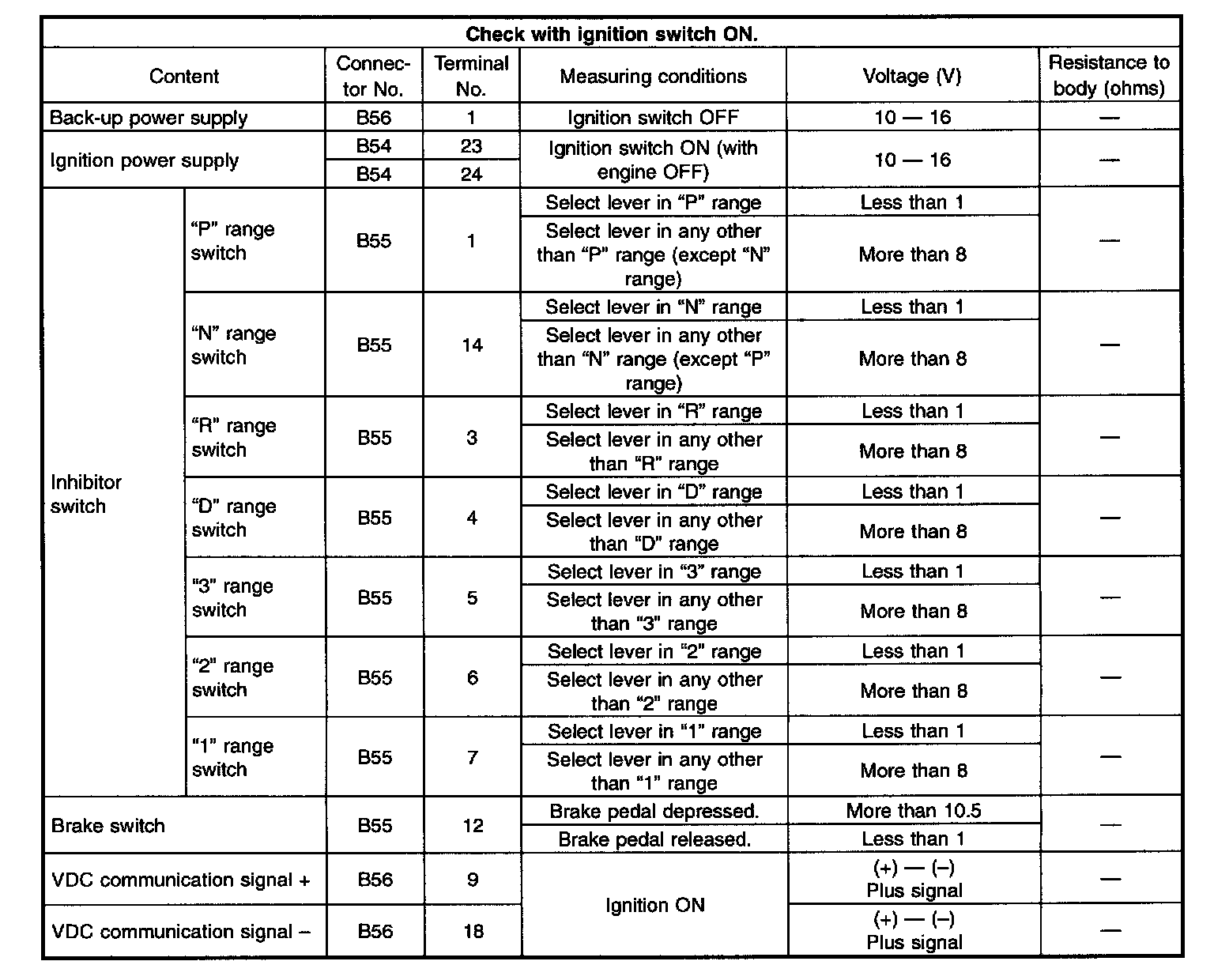

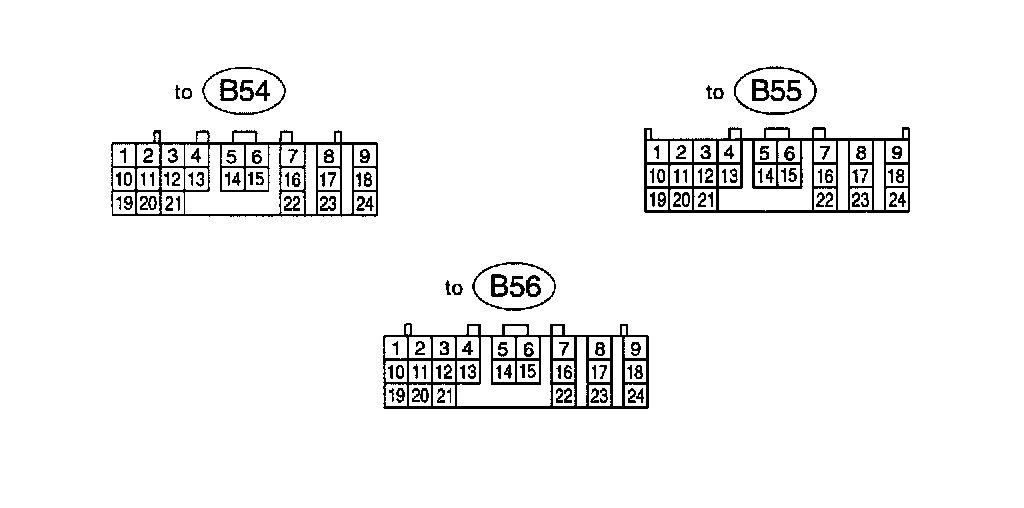

2. WITH VDC SYSTEM
