Crankshaft Position Sensor: Service and Repair

REMOVAL

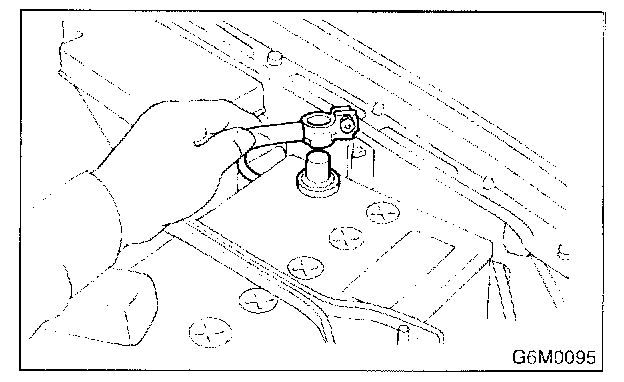

1. Disconnect battery ground cable.
2. Remove air intake chamber.

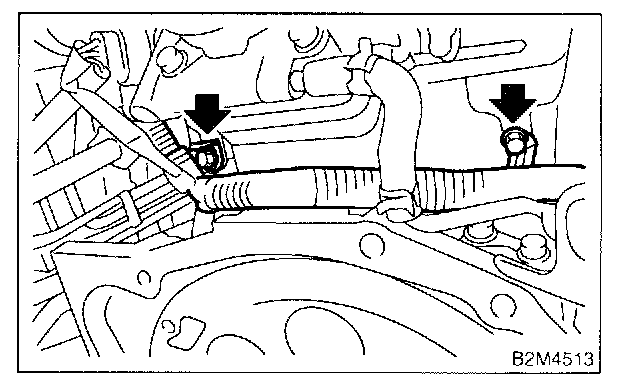

3. Remove engine harness bracket from intake manifold.

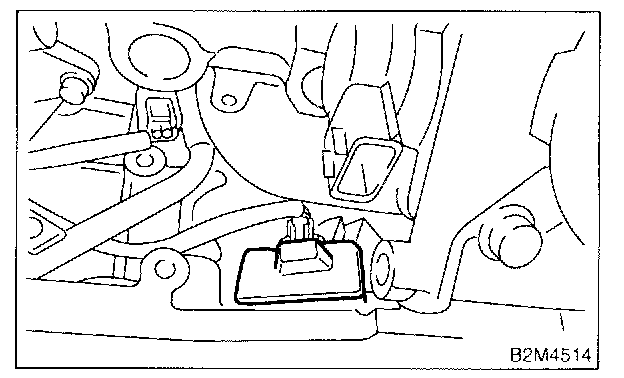

4. Remove service hole cover.

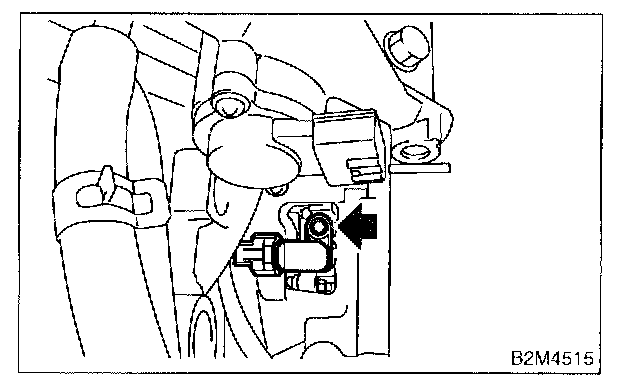

5. Remove bolt which install crankshaft position sensor to cylinder block.




6. Remove crankshaft position sensor, and disconnect connector from it.

INSTALLATION

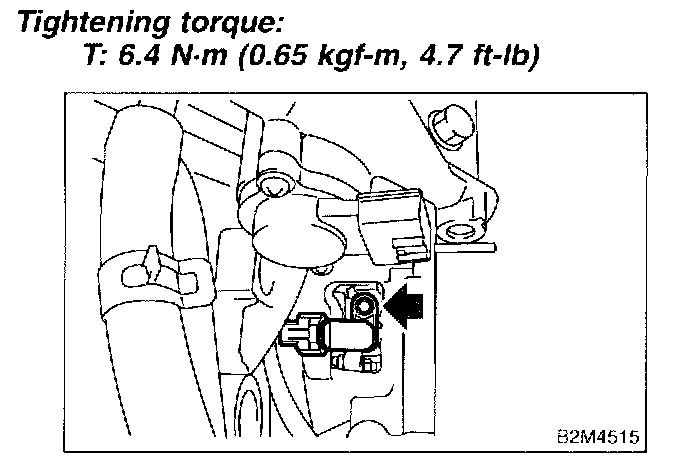

Install in the reverse order of removal.
