Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL

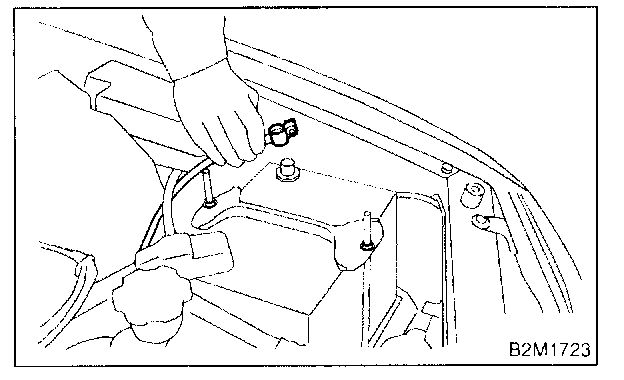

1. Disconnect battery ground cable.
2. Disconnect connector from intake manifold pressure sensor.

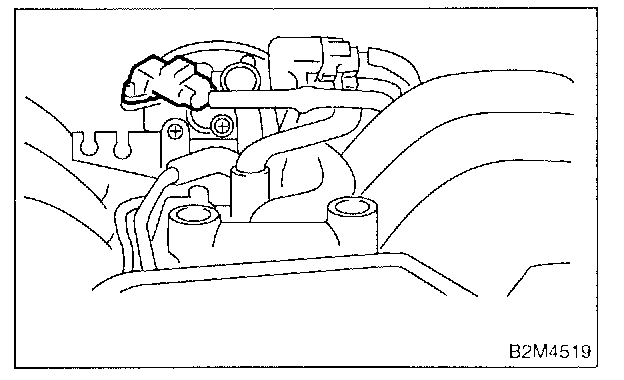

3. Remove intake manifold pressure sensor from throttle body.

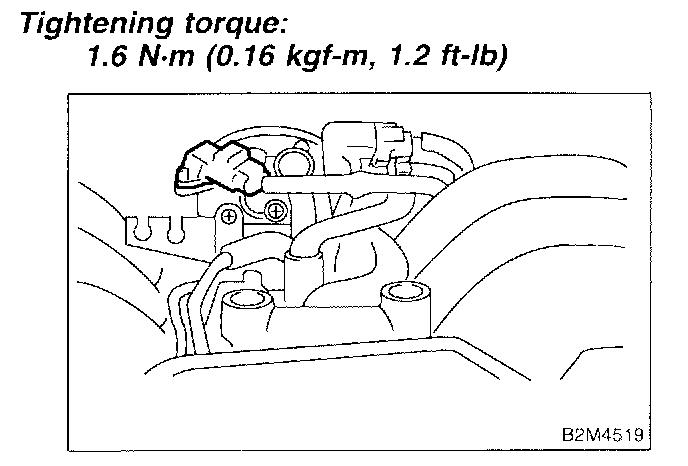

INSTALLATION
Install in the reverse order of removal.






CAUTION: Replace gasket with new one.
