Air Temperature Sensor ( Ambient / Intake ): Service and Repair

REMOVAL




1. Disconnect battery ground cable.

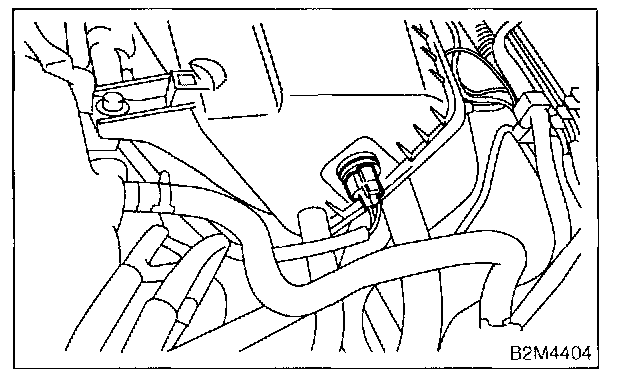

2. Disconnect connector from intake air temperature sensor.




3. Remove intake air temperature sensor from air intake chamber.

INSTALLATION

Install in the reverse order of removal.
