Engine (AT Vehicles)
ModuleComponent Location Overall View / Component Views:

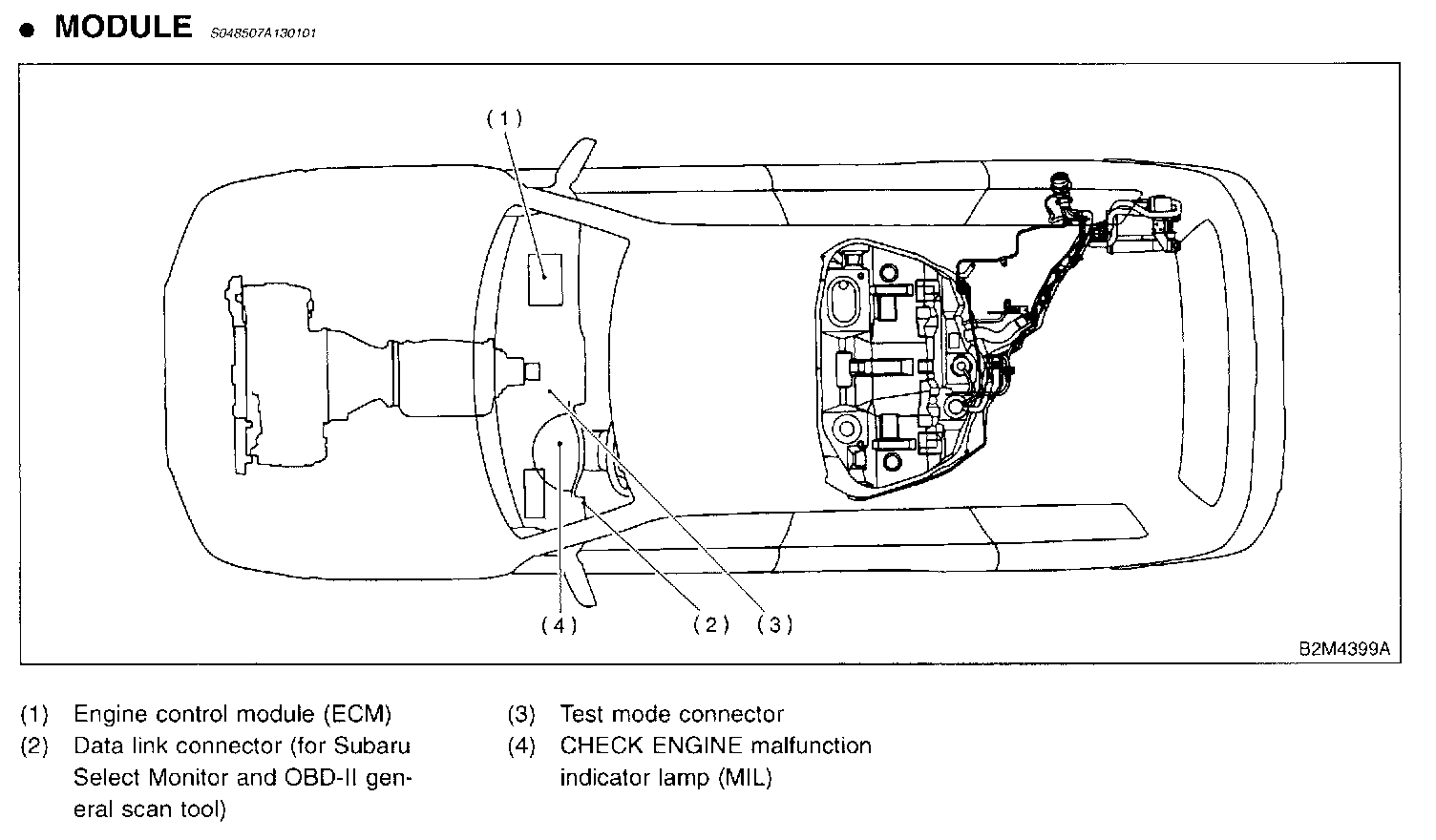

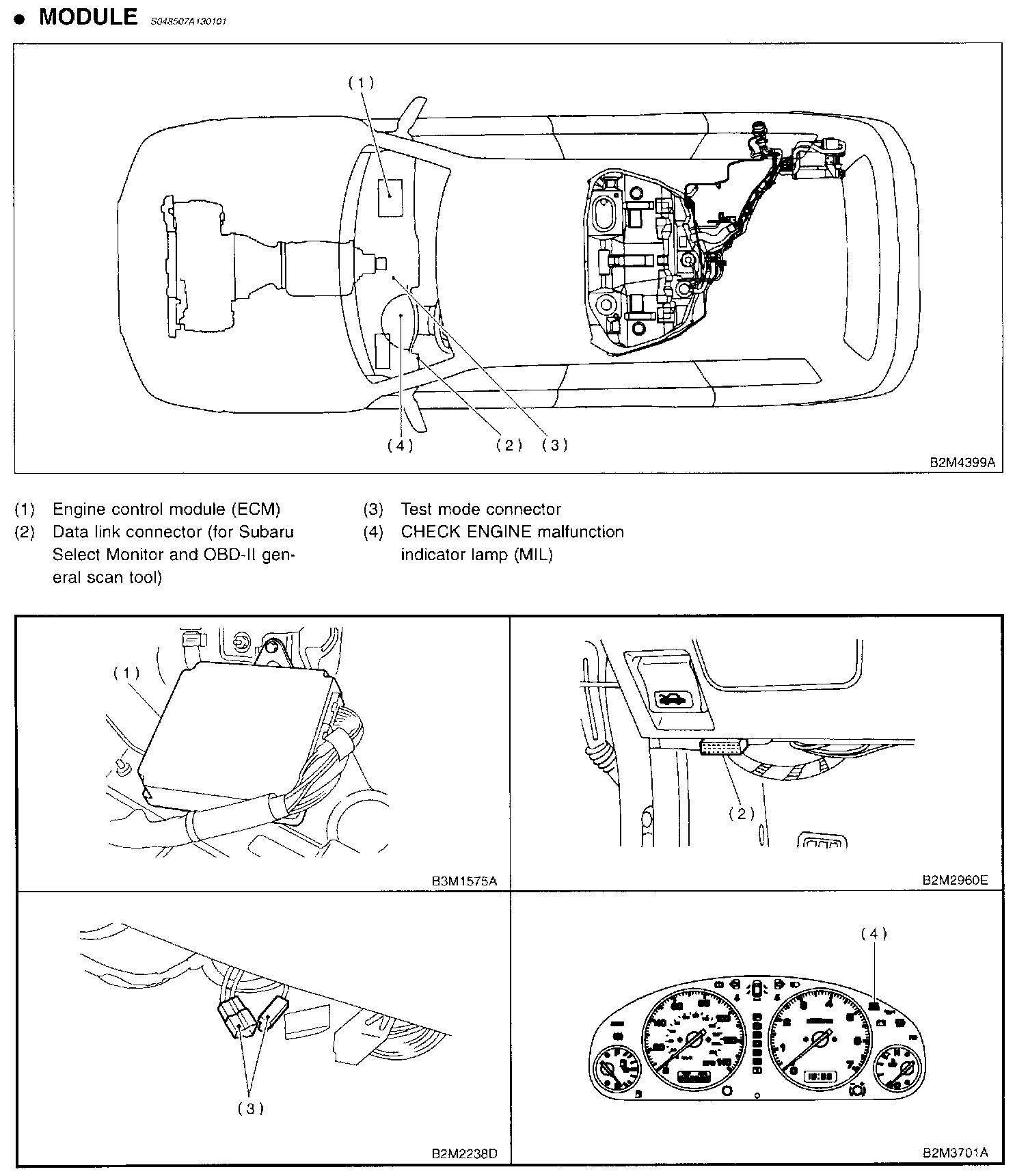

Component Location Overall View:
Component Views:

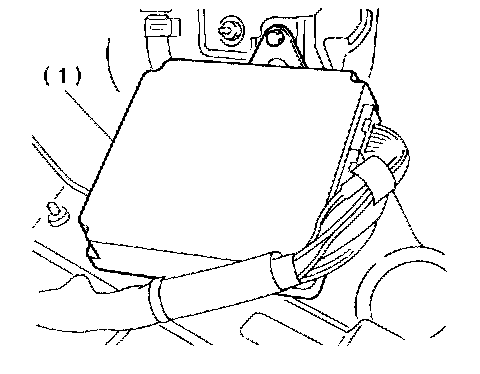

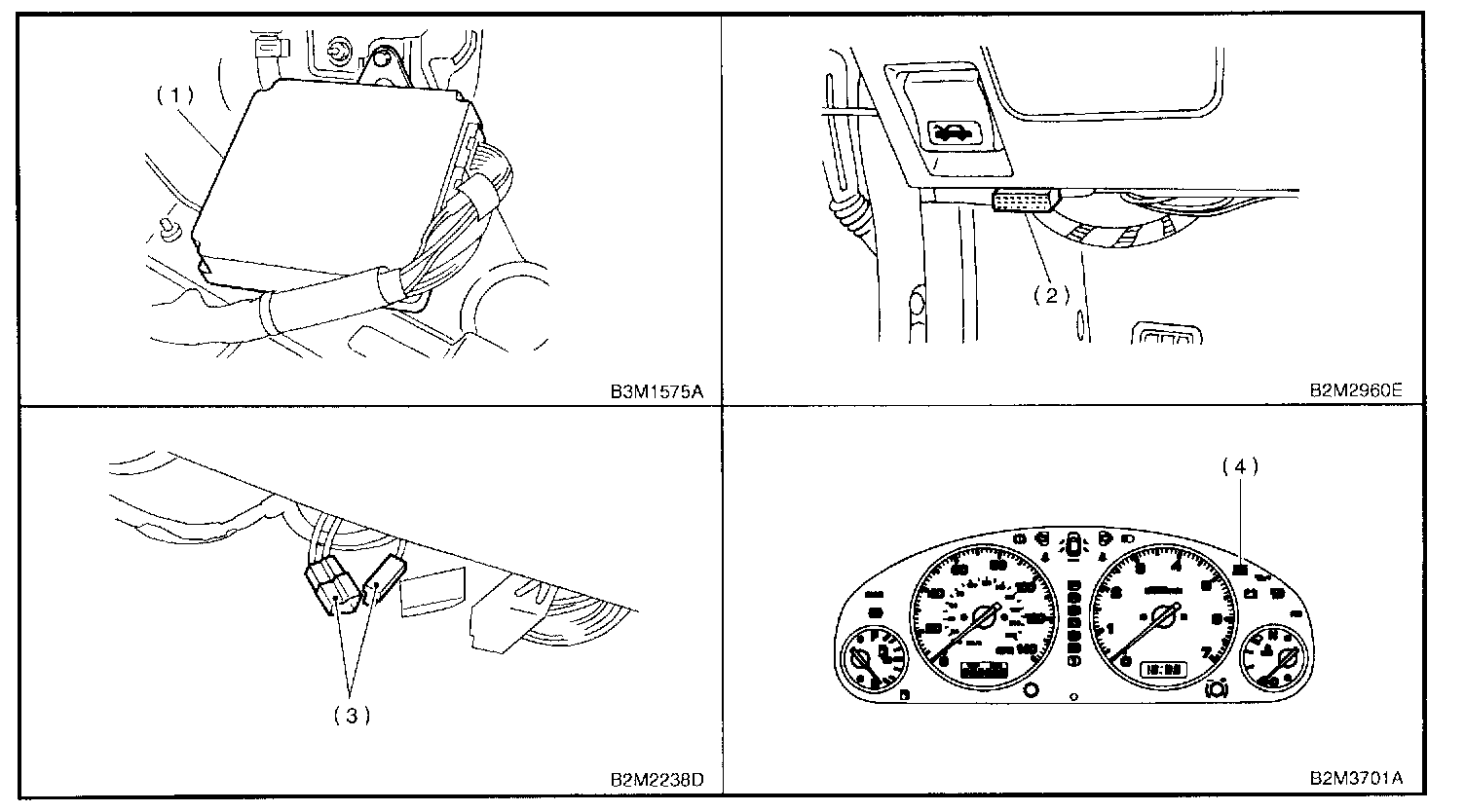

1. Engine control module (ECM)

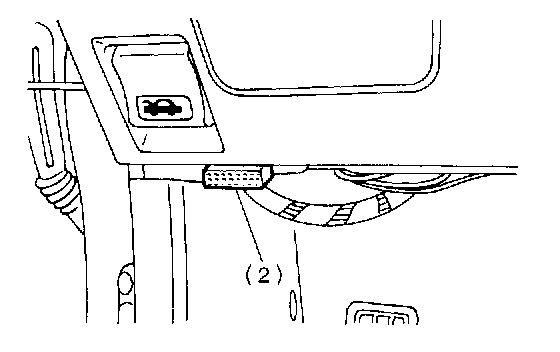

2. Data link connector (for Subaru Select Monitor and OBD-II general scan tool)

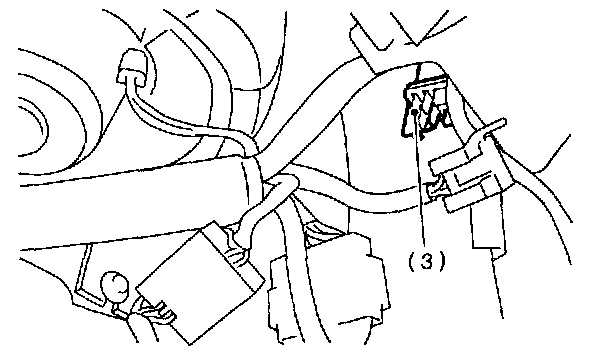

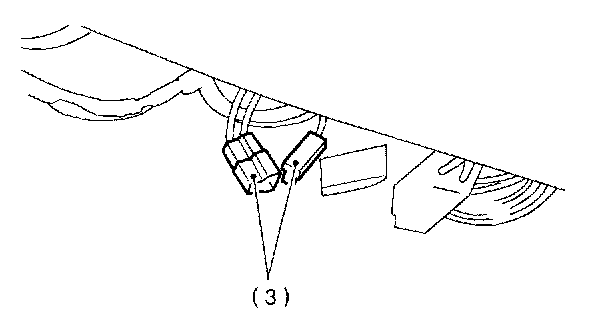

3. Test mode connector

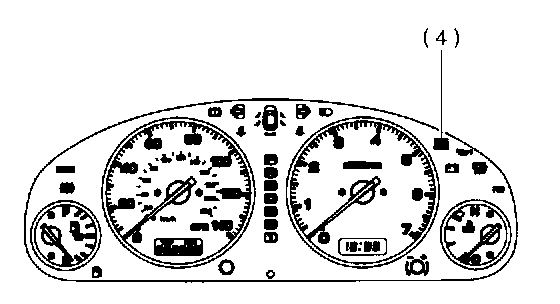

4. CHECK ENGINE malfunction indicator lamp (MIL)
Sensor
Component Location Overall View:
Component Views:

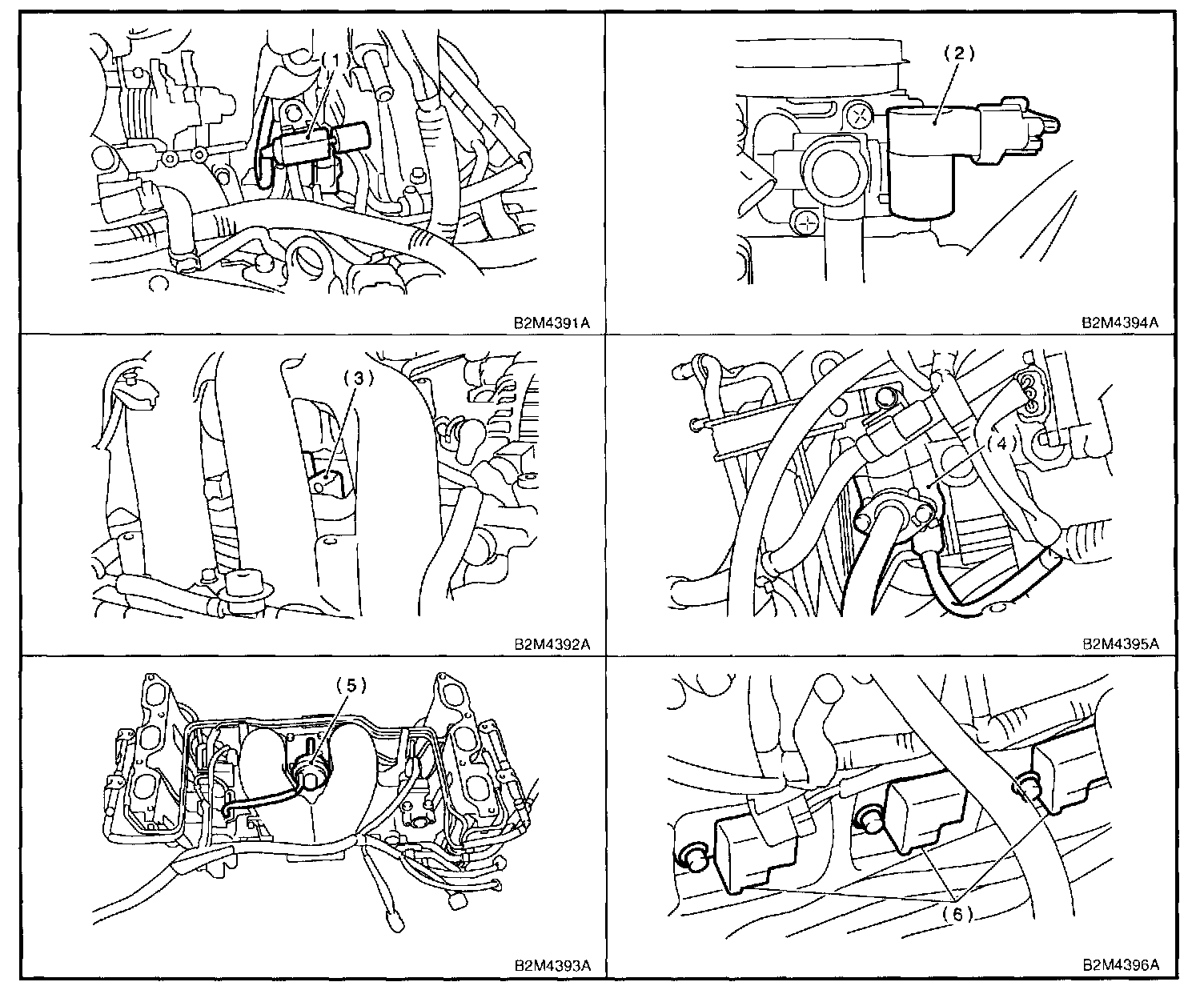

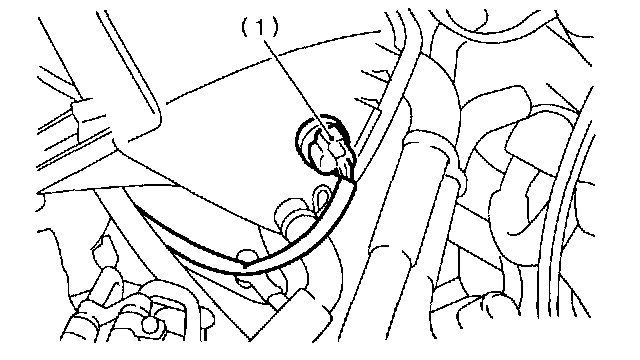

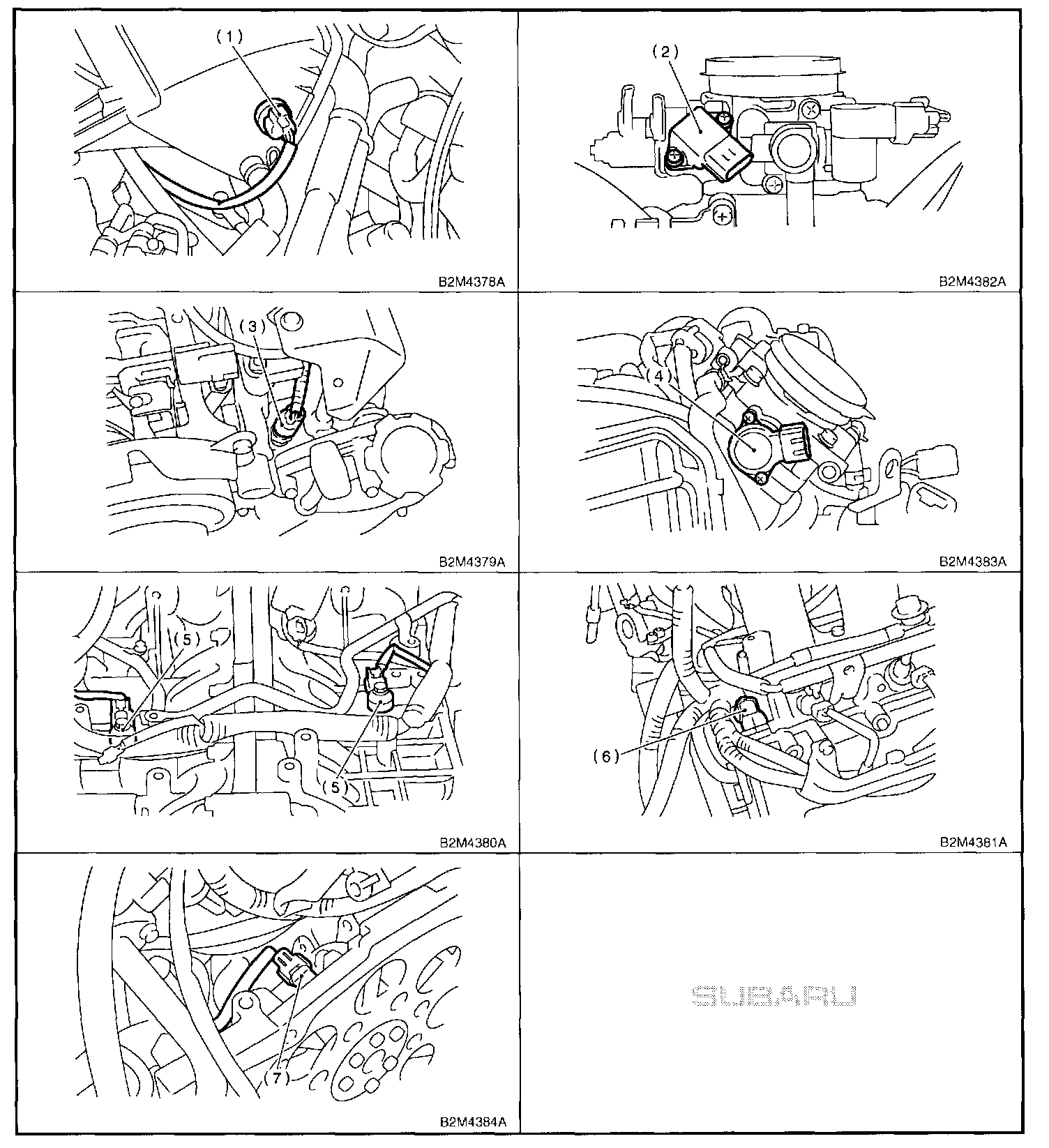

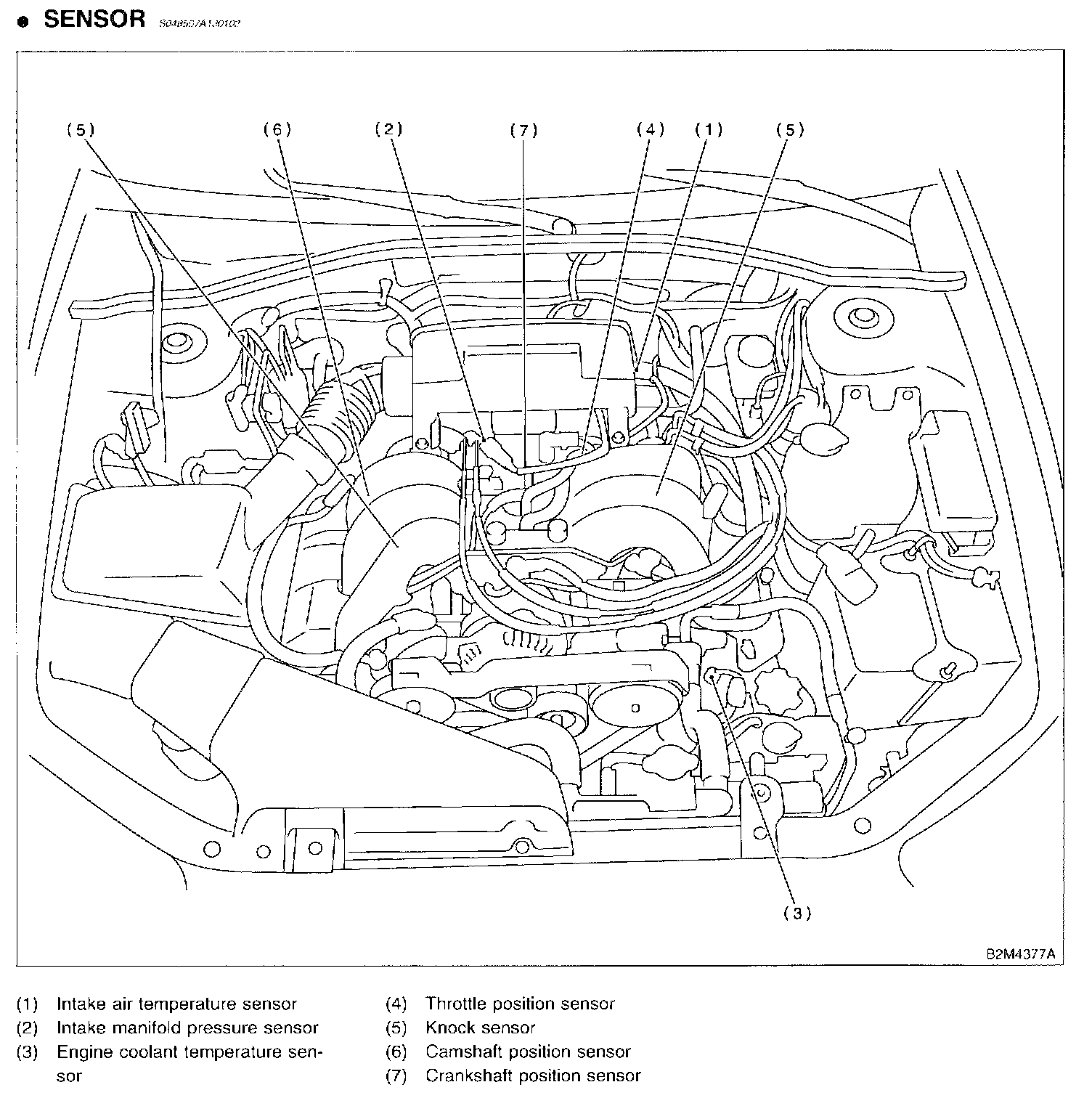

1. Intake air temperature sensor
2. Intake manifold pressure sensor

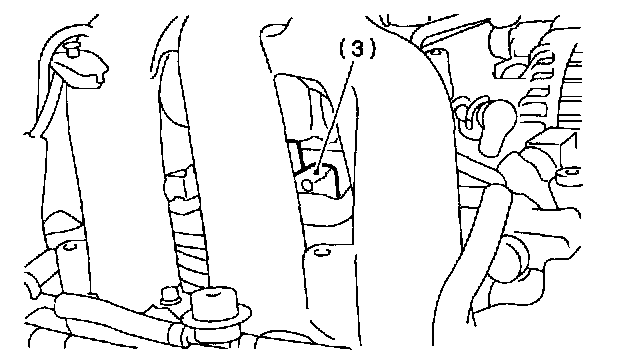

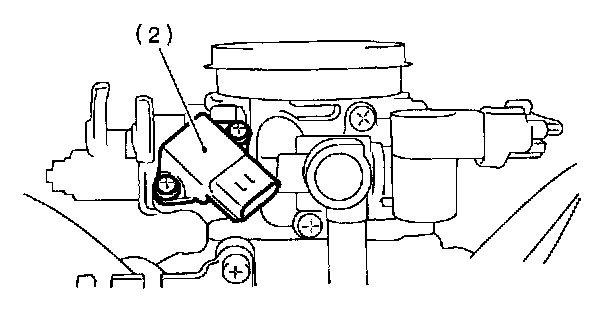

3. Engine coolant temperature sensor

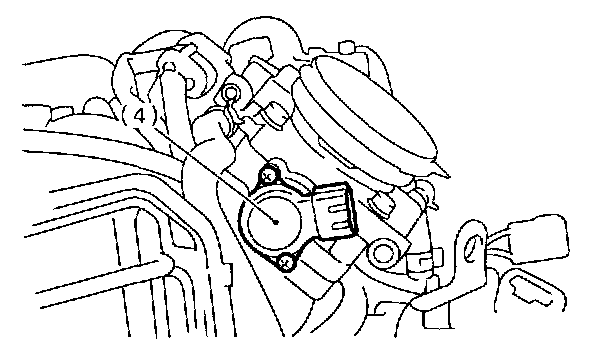

4. Throttle position sensor
5. Knock sensor
6. Camshaft position sensor

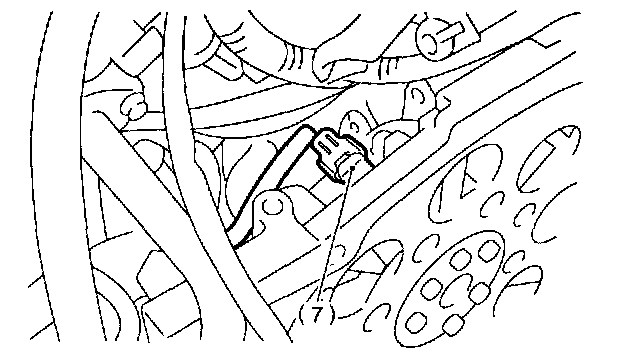

7. Crankshaft position sensor
Component Location Overall View:
Component Views:

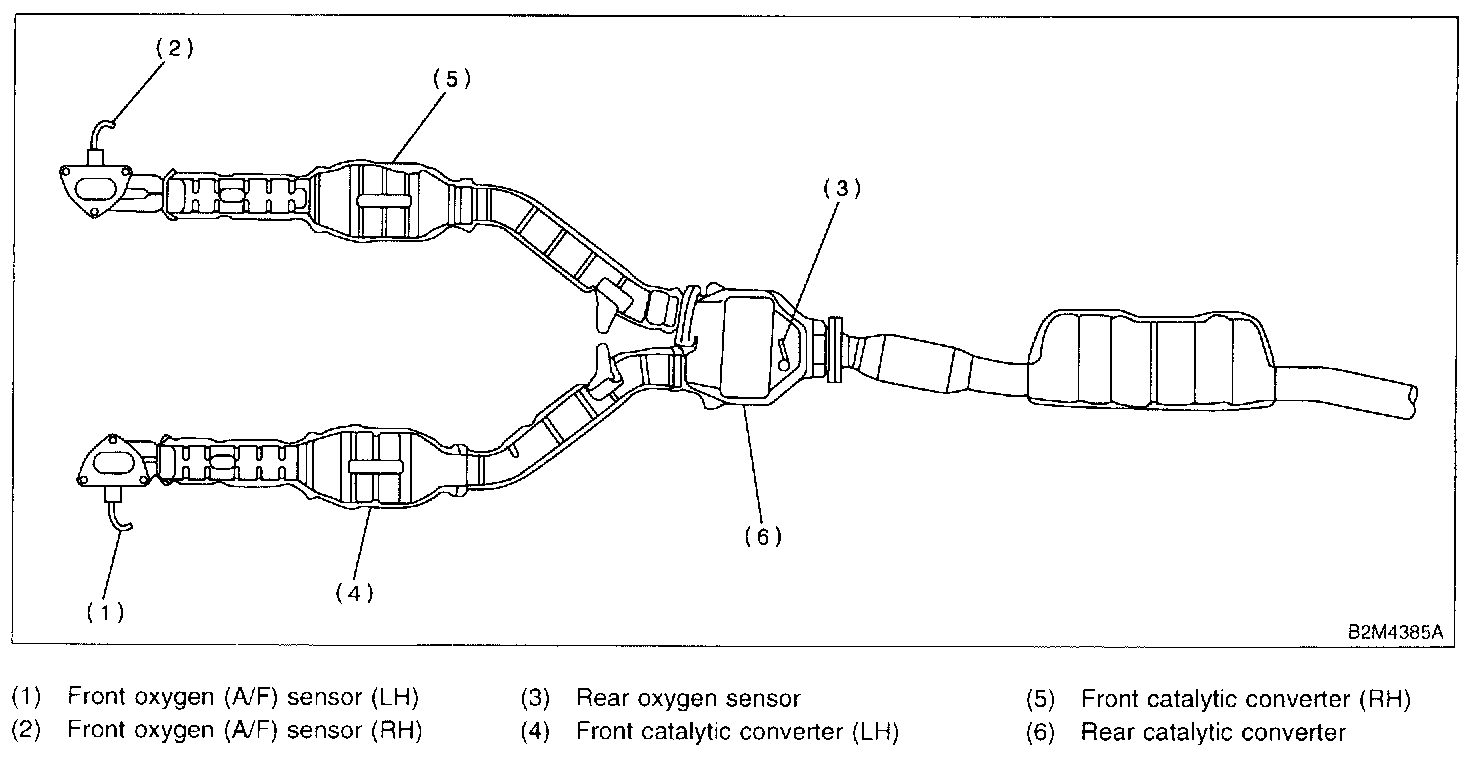

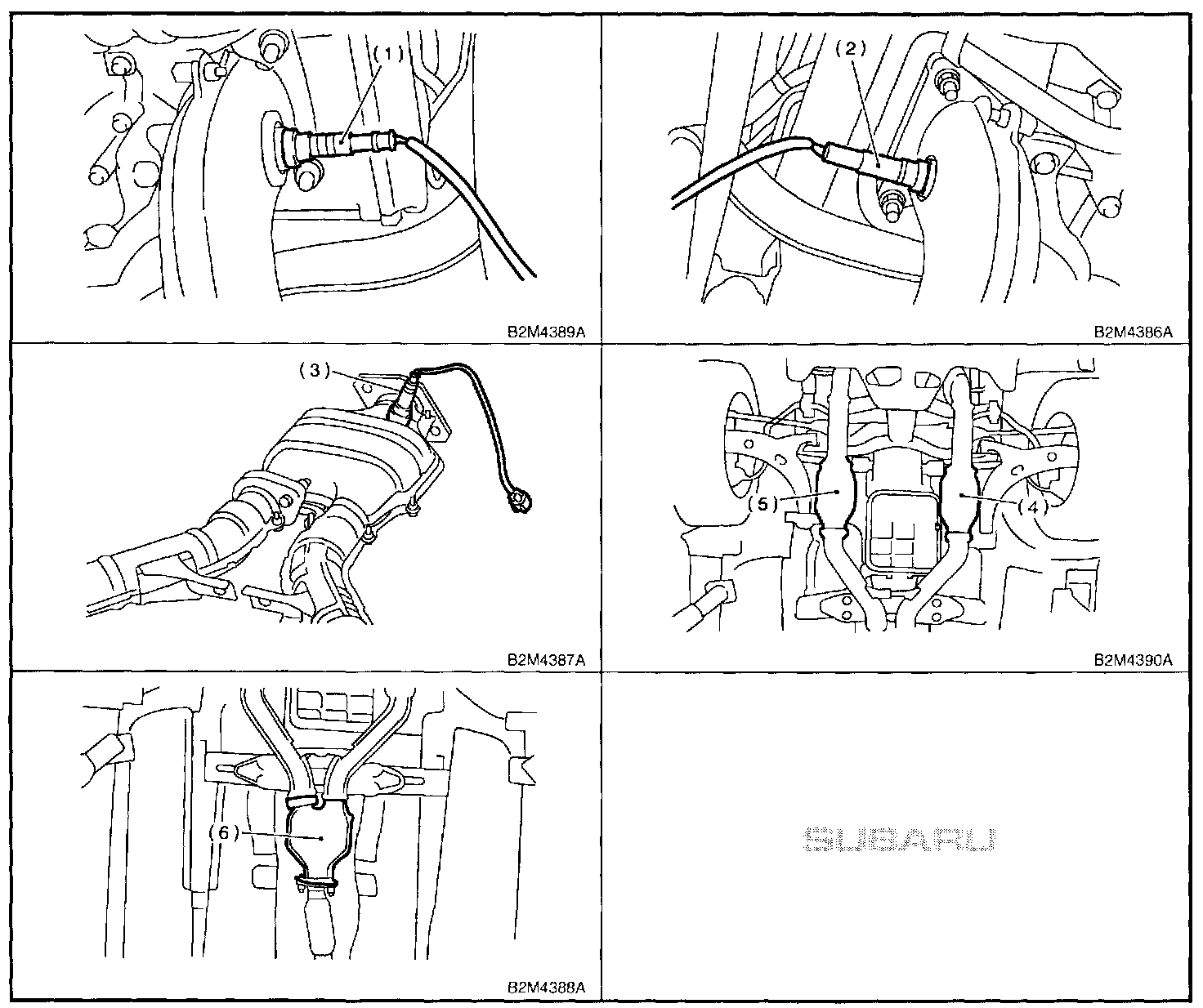

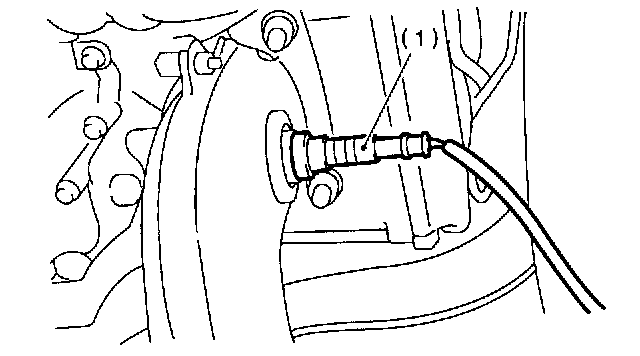

1. Front oxygen (A/F) sensor (LH)

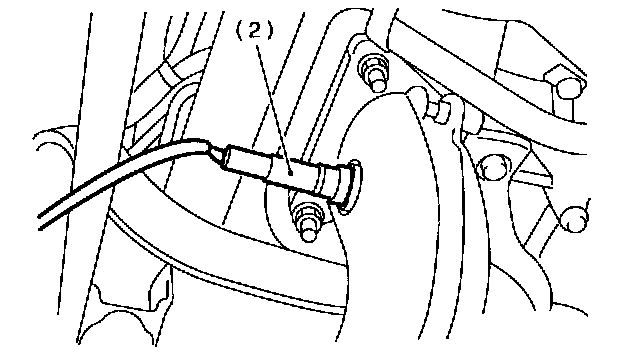

2. Front oxygen (A/F) sensor (RH)

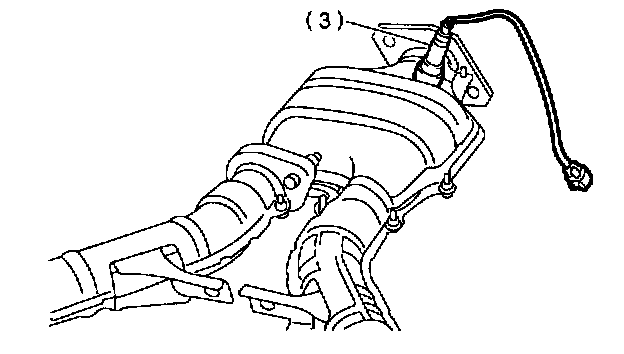

3. Rear oxygen sensor

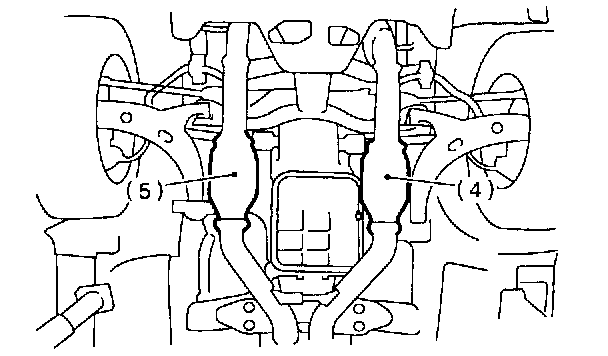

4. Front catalytic converter (LH)
5. Front catalytic converter (RH)

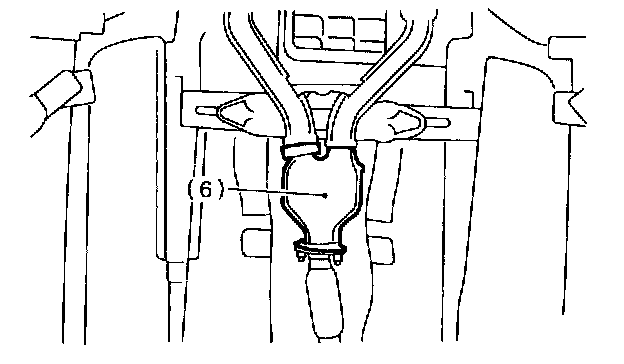

6. Rear catalytic converter
Component Location Overall View / Component Views:
Component Location Overall View:
Component Views:

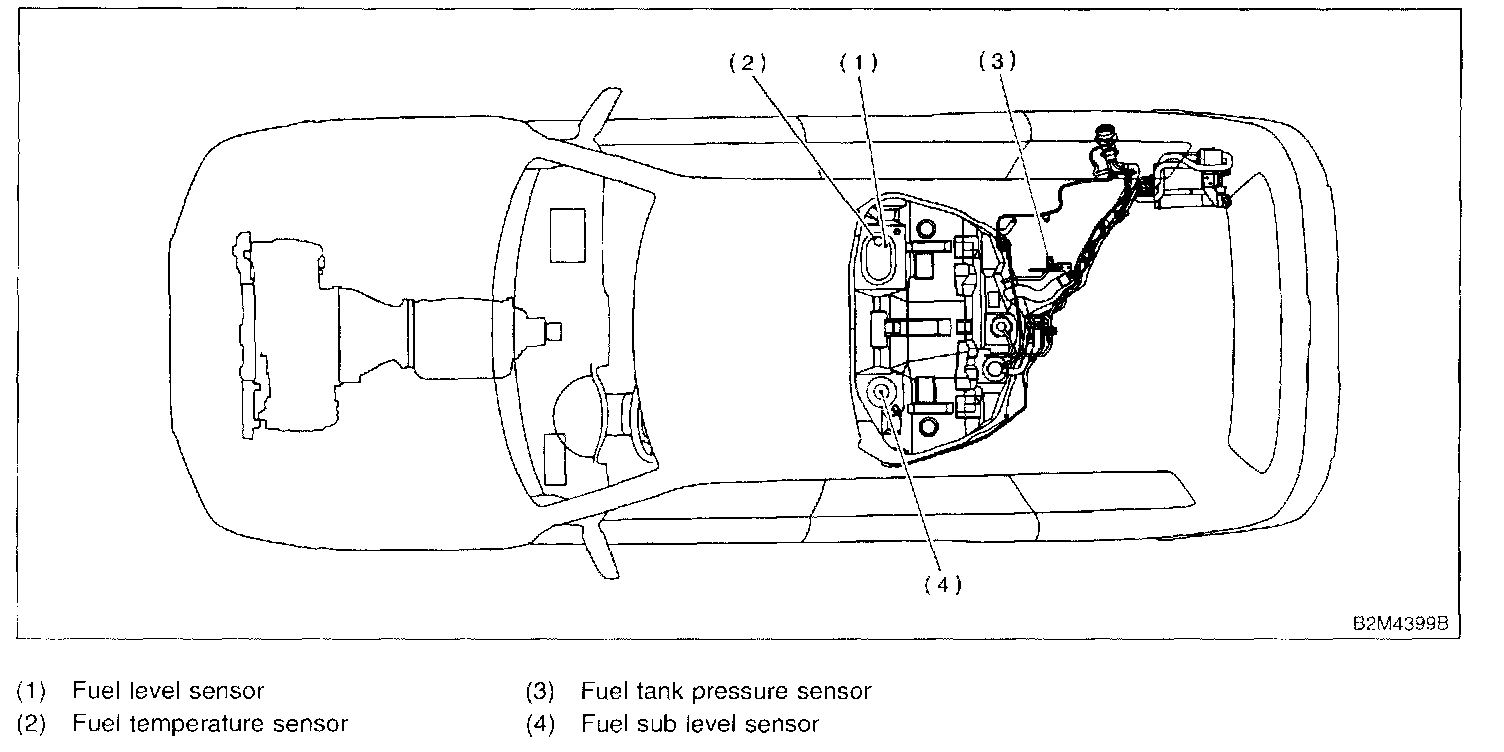

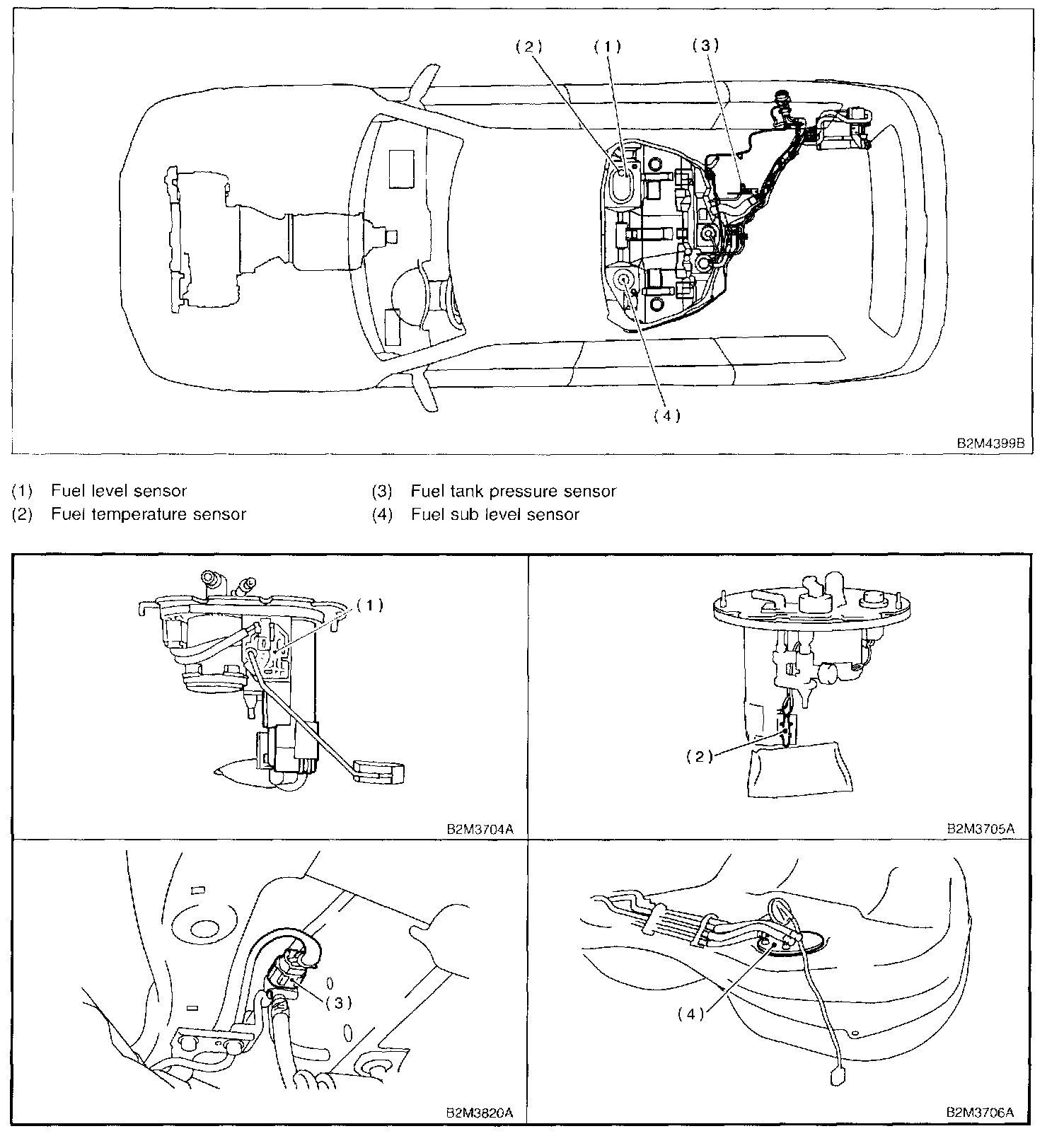

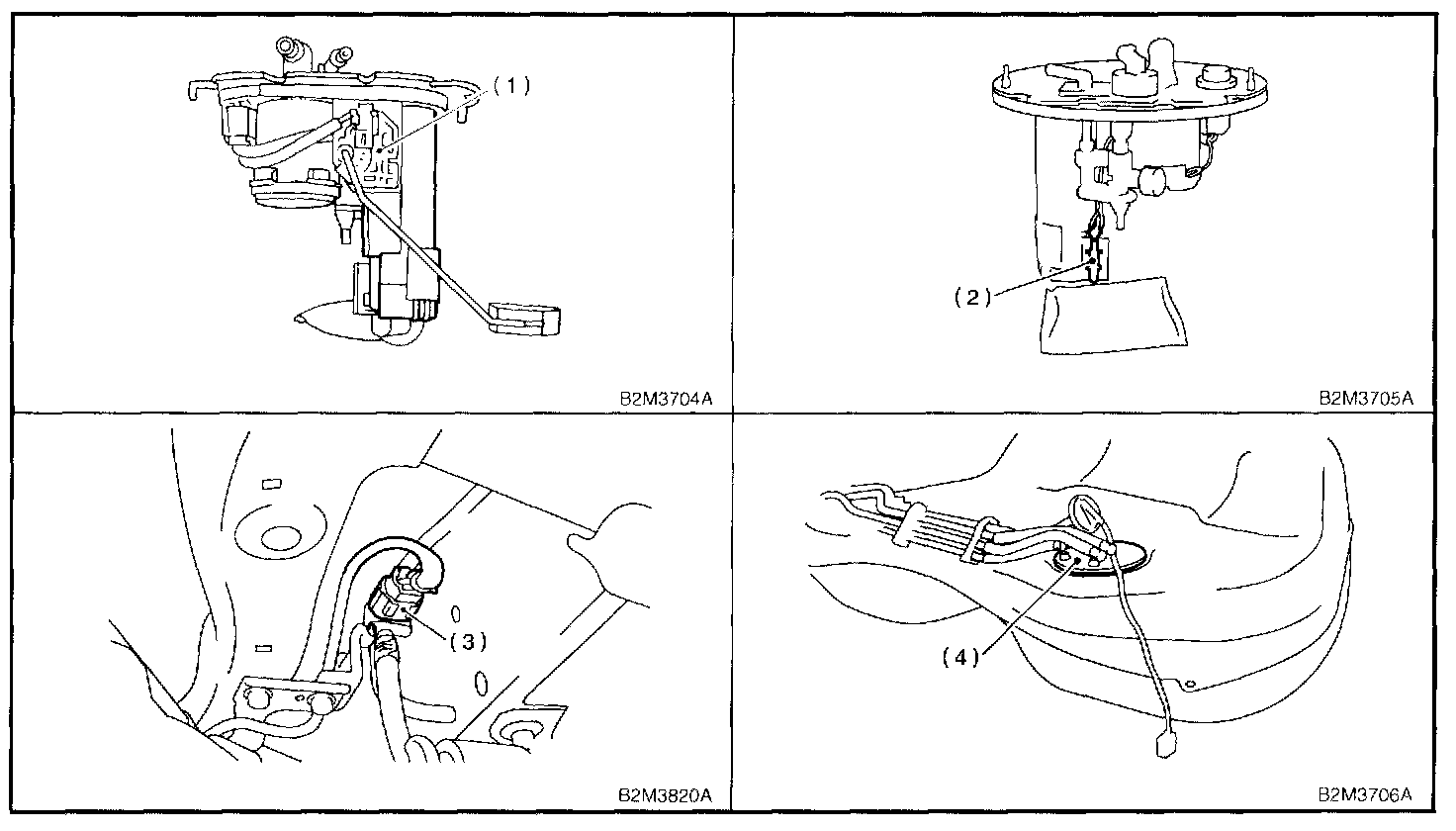

1. Fuel level sensor

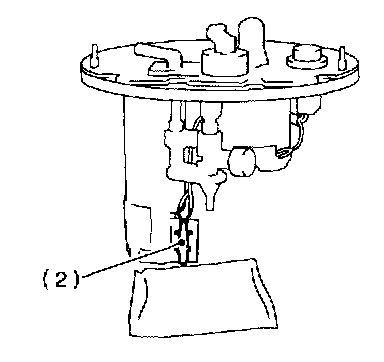

2. Fuel temperature sensor
3. Fuel tank pressure sensor

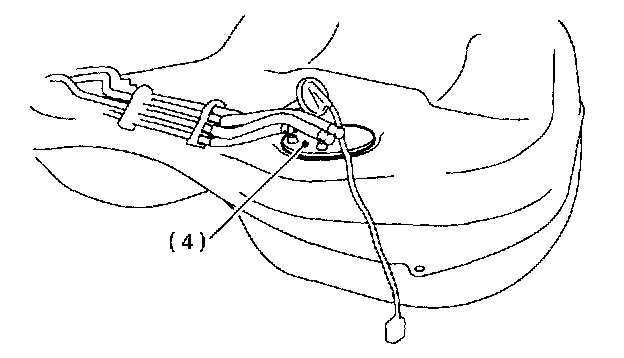

4. Fuel sub level sensor
Solenoid Valve, Emission Control System Parts and Ignition System Parts

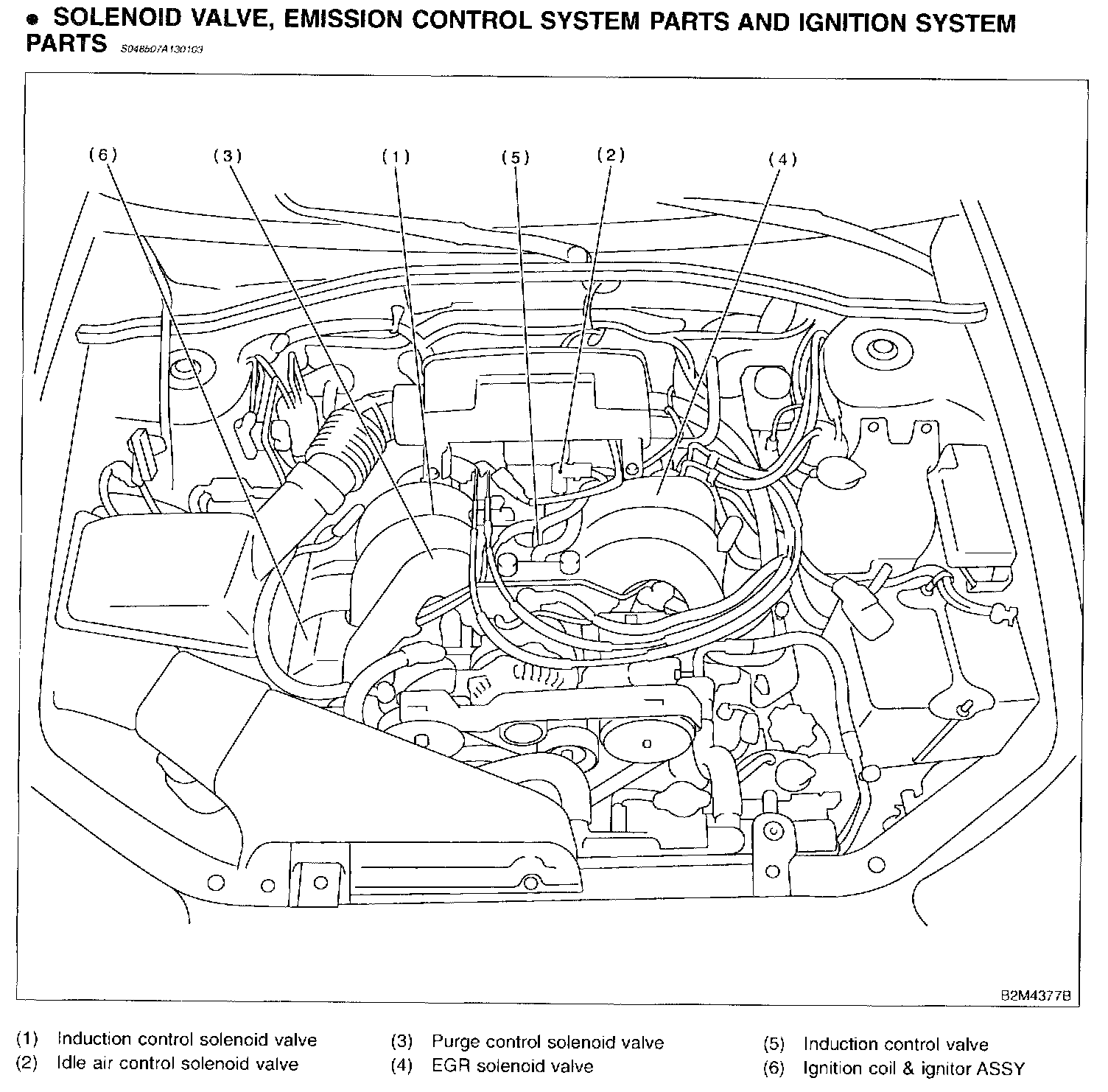

Component Location Overall View:
Component Views:

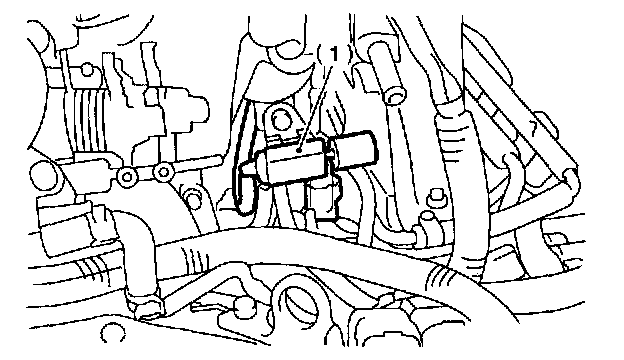

1. Induction control solenoid valve

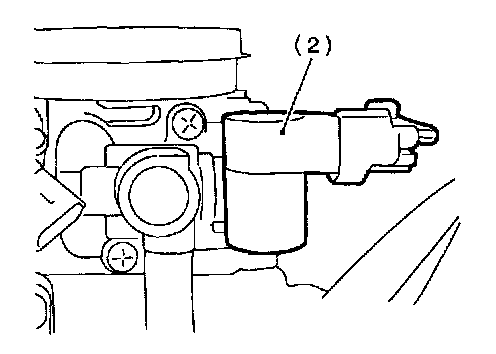

2. Idle air control solenoid valve

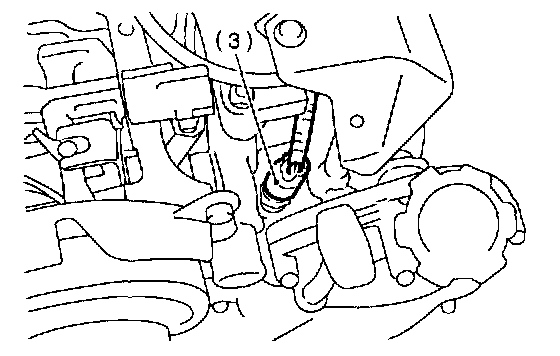

3. Purge control solenoid valve

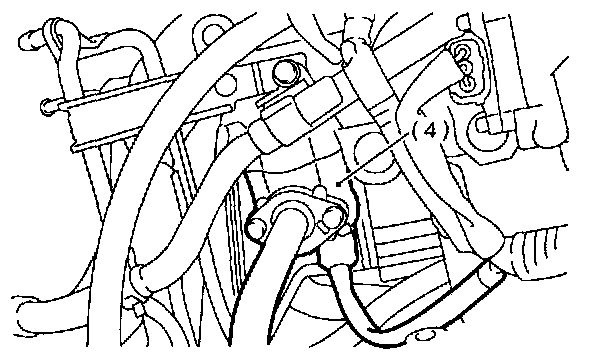

4. EGR solenoid valve

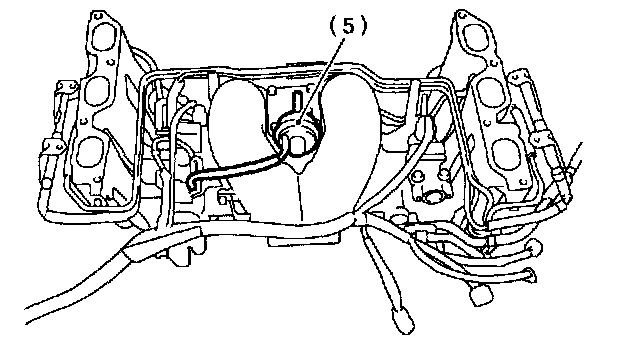

5. Induction control valve

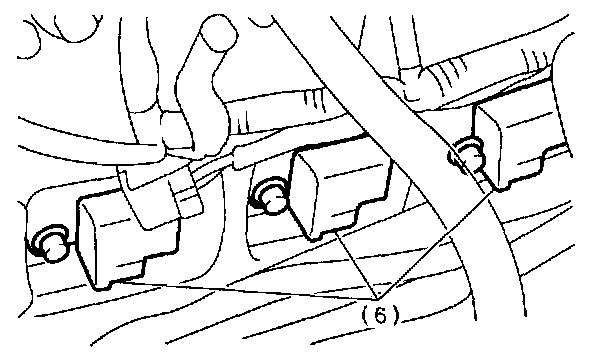

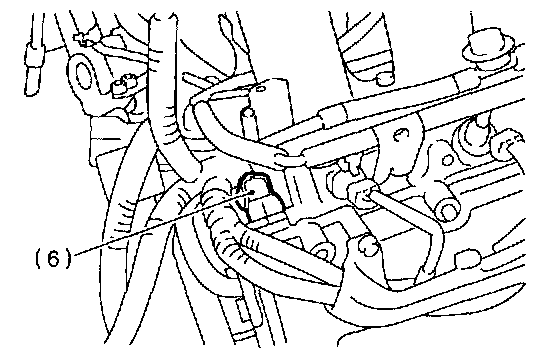

6. Ignition coil & ignitor ASSY
Component Location Overall View / Component Views:
Component Location Overall View:
Component Views:

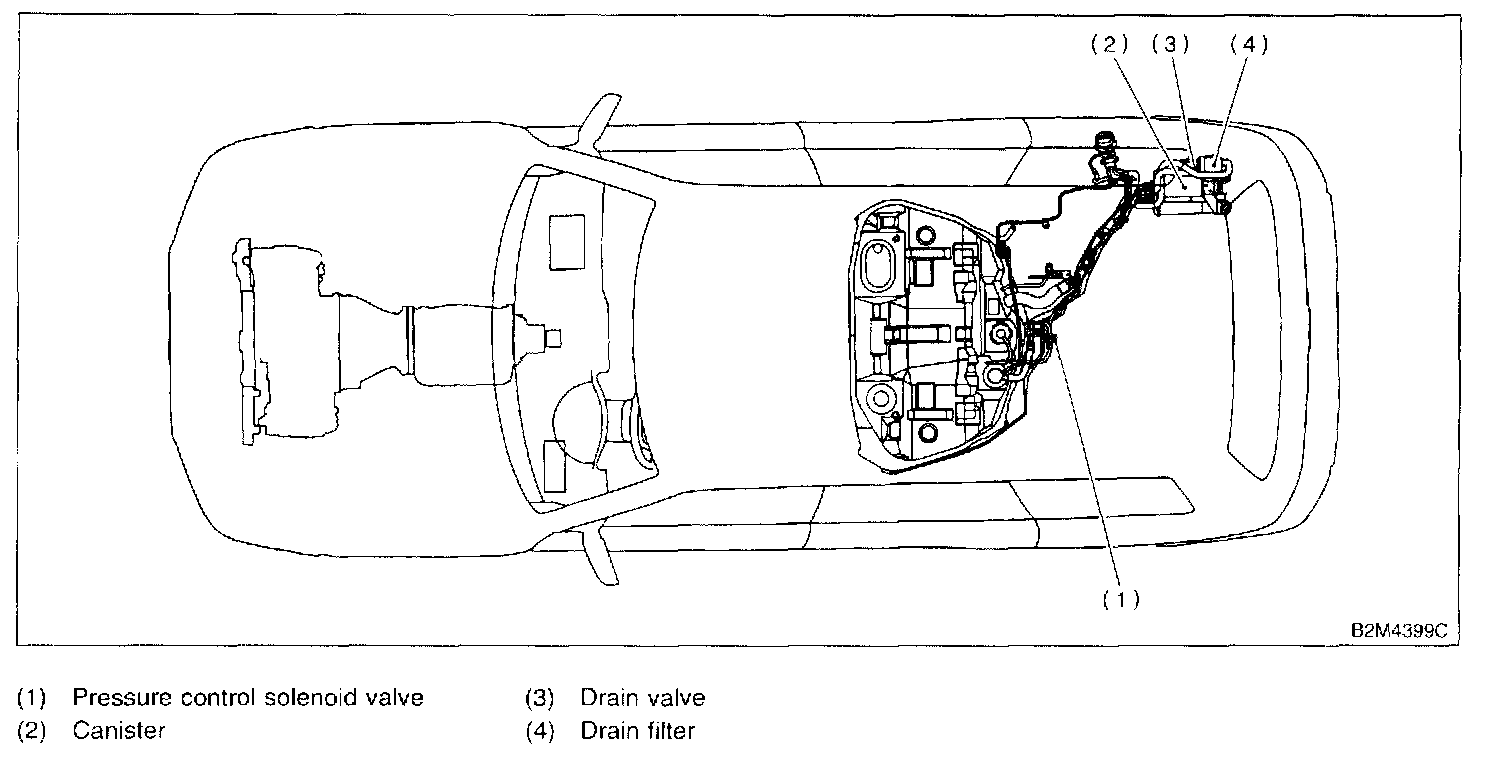

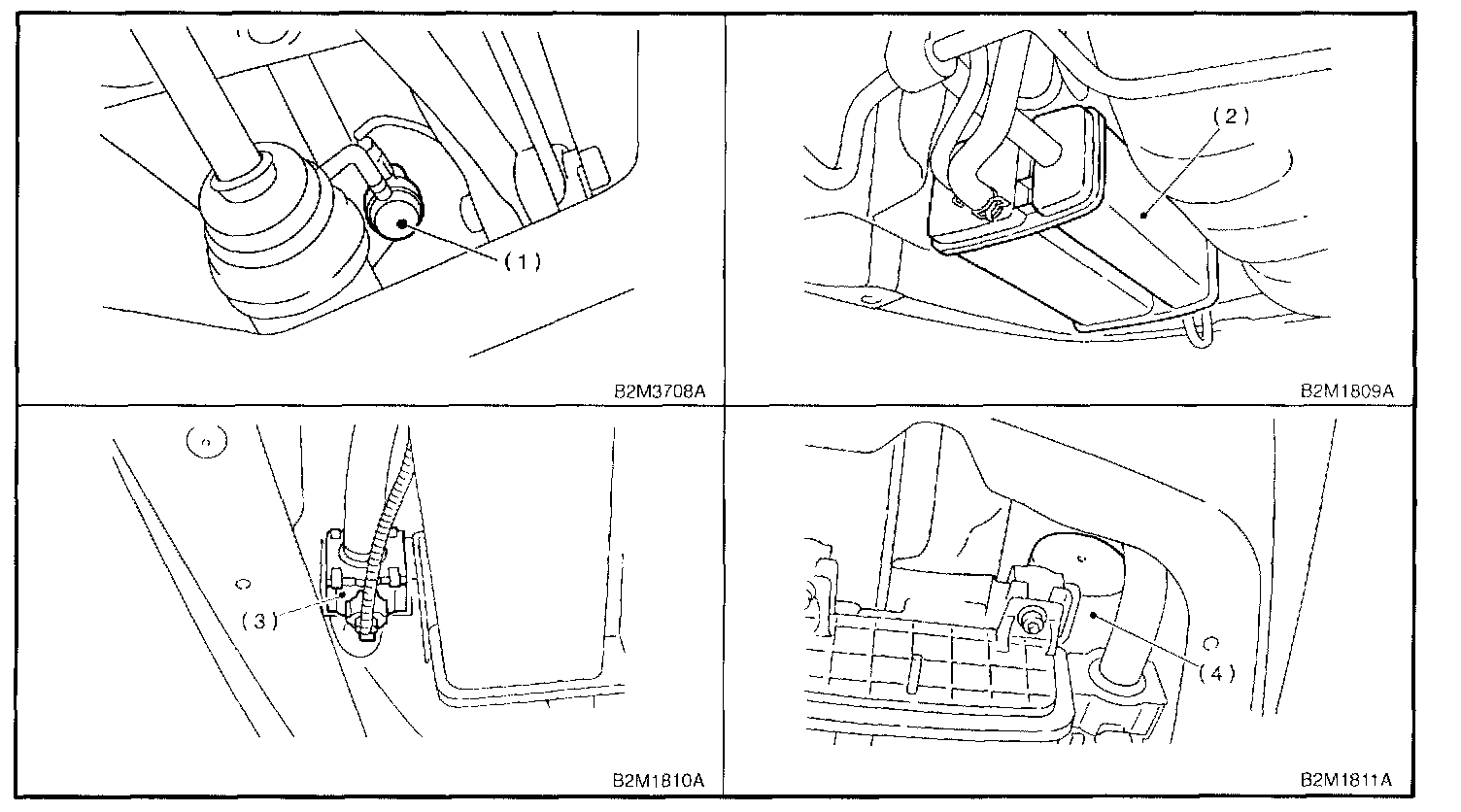

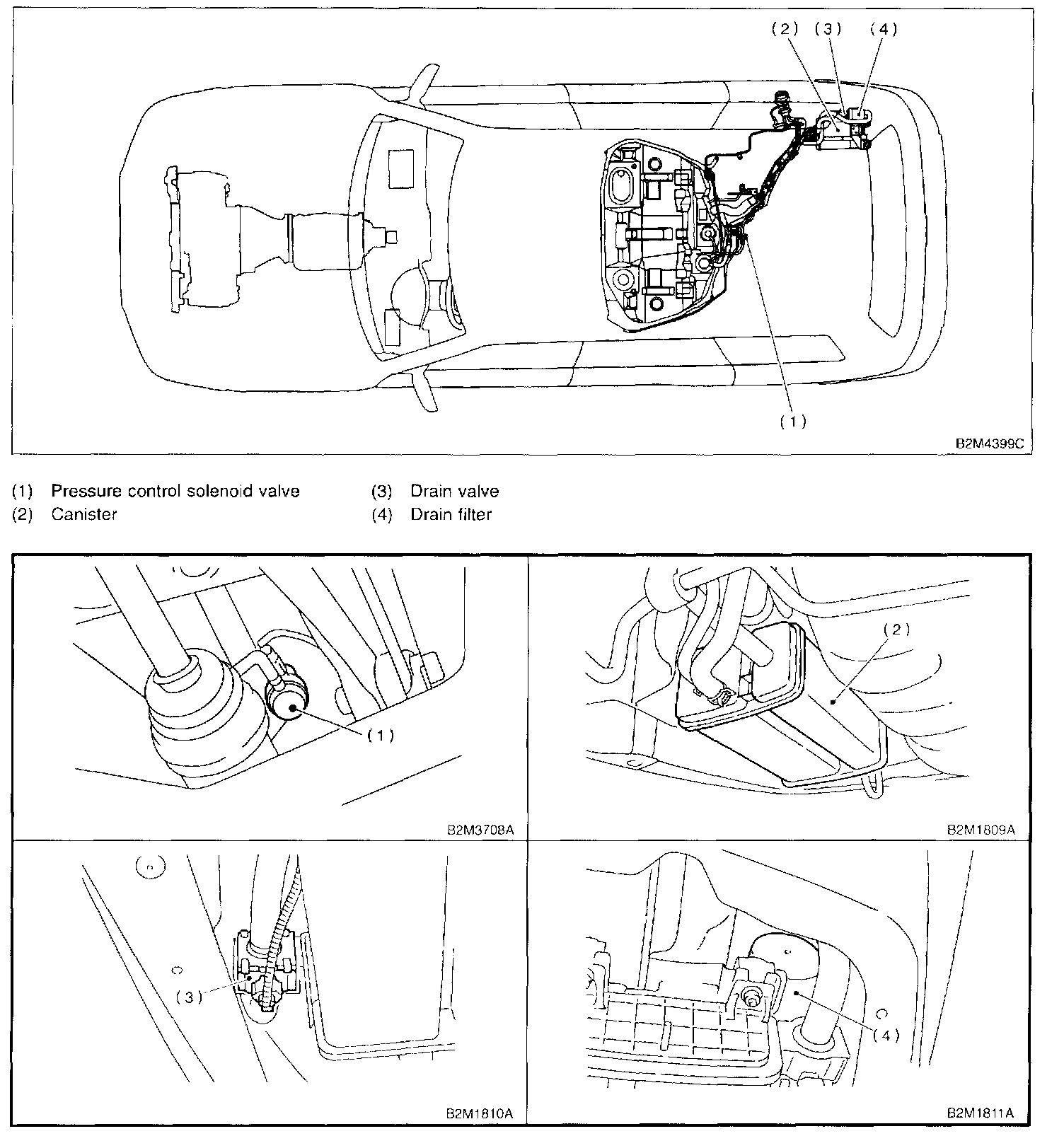

1. Pressure control solenoid valve

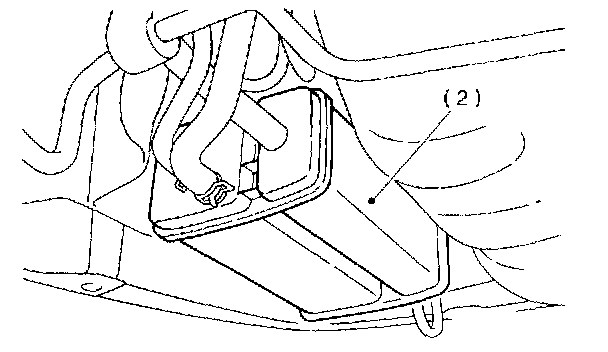

2. Canister

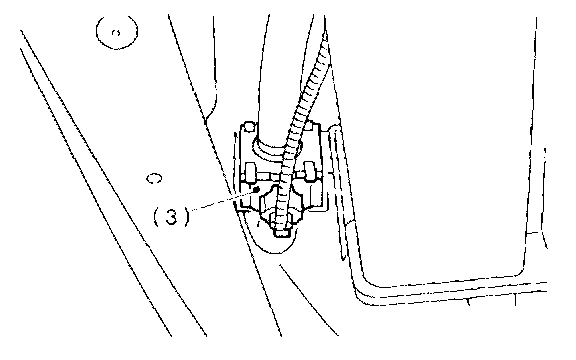

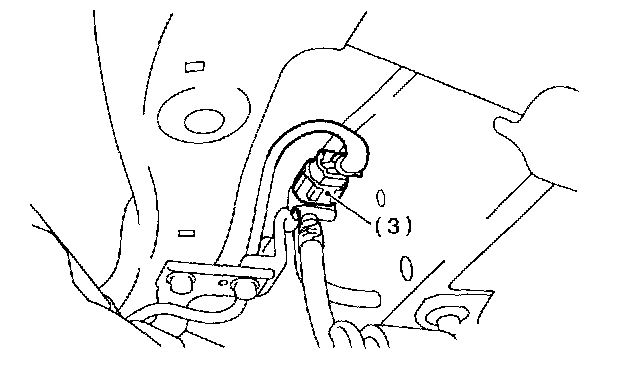

3. Drain valve

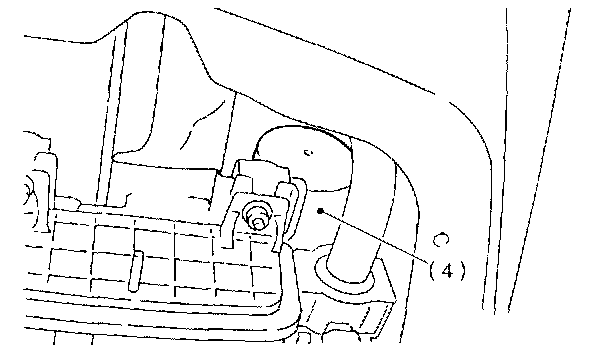

4. Drain filter

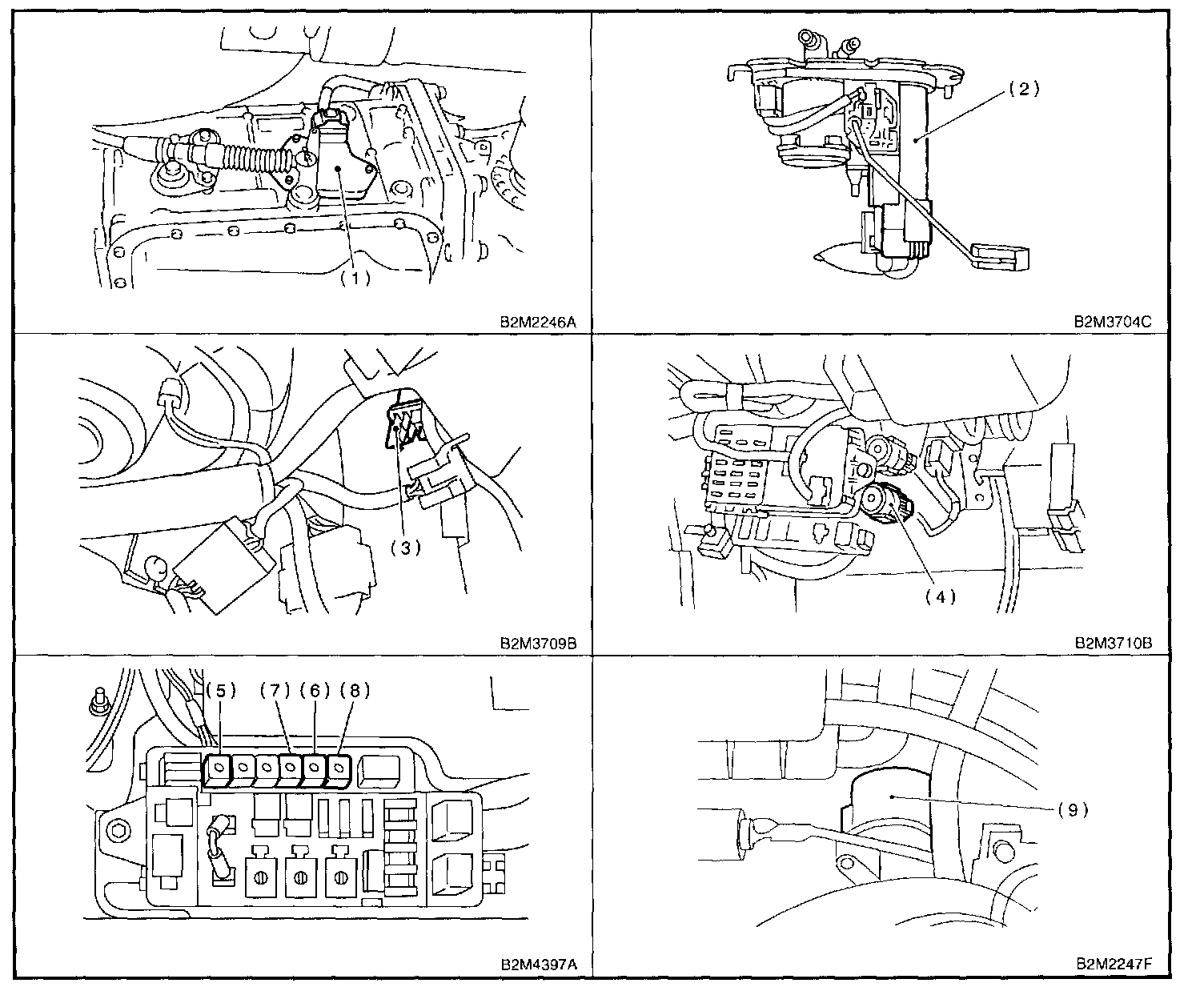

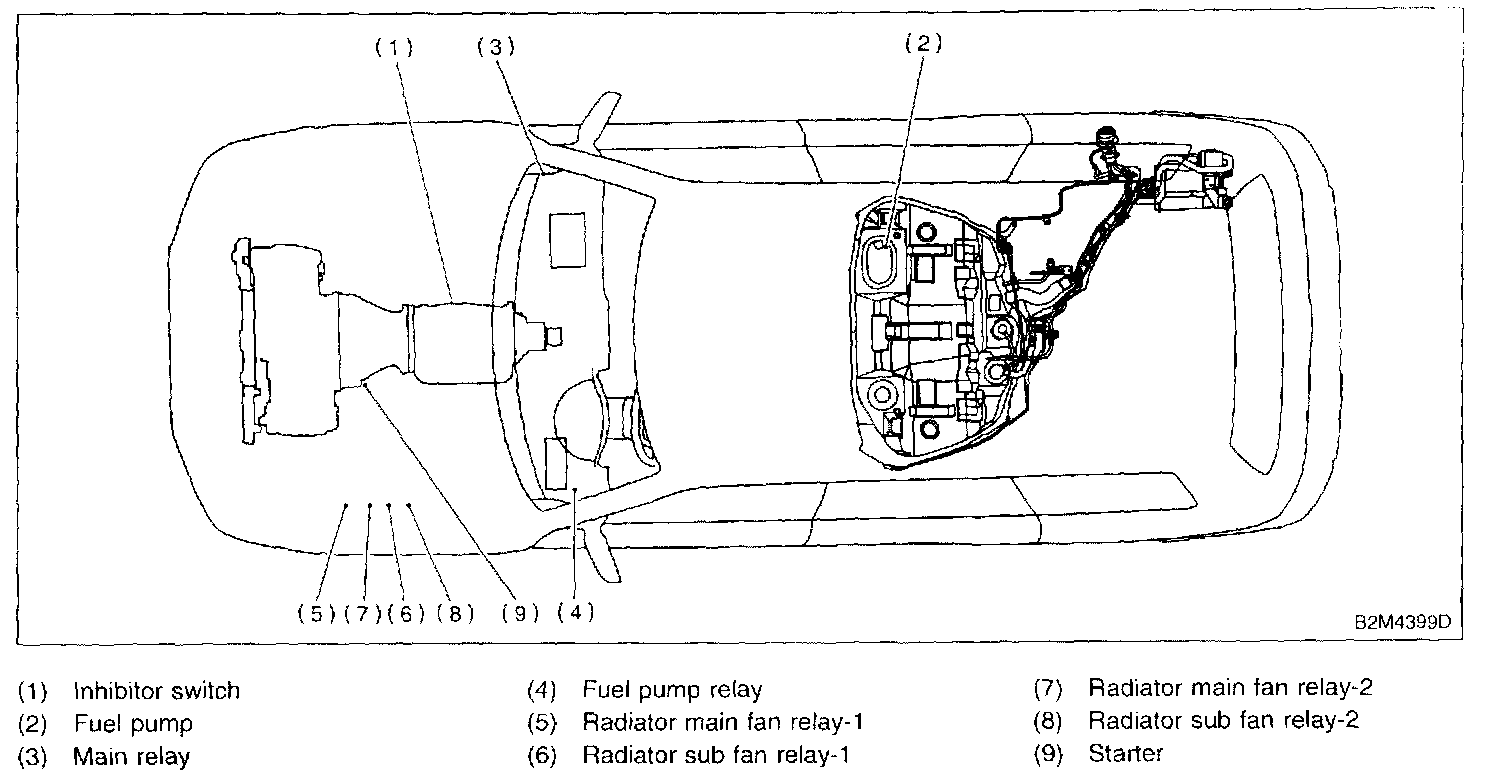

Component Location Overall View:
Component Views:

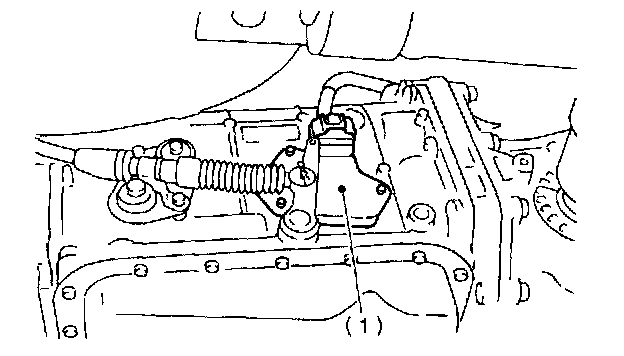

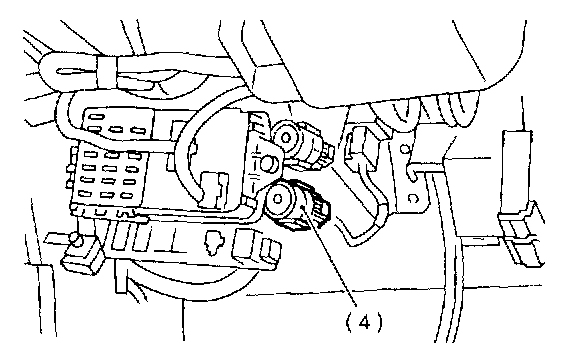

1. Inhibitor switch

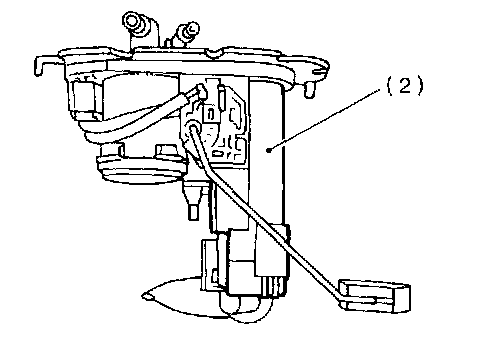

2. Fuel pump
3. Main relay
4. Fuel pump relay

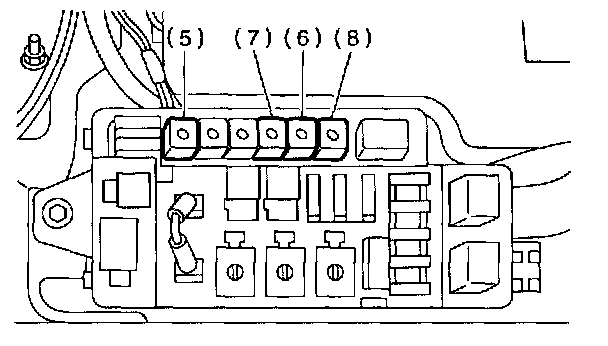

5. Radiator main fan relay-1
6. Radiator sub fan relay-1
7. Radiator main tan relay-2
8. Radiator sub tan relay-2
9. Starter
