Variable Induction Control Valve: Service and Repair

REMOVAL

1. Disconnect battery ground cable.
2. Remove intake manifold.

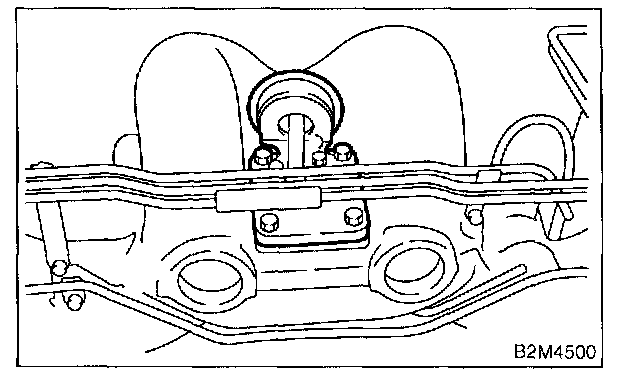

3. Remove induction valve from intake manifold.

INSTALLATION
Install in the reverse order of removal.

CAUTION: Always use a new gasket.

Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)
