Fuel Delivery and Air Induction: Service and Repair

REMOVAL

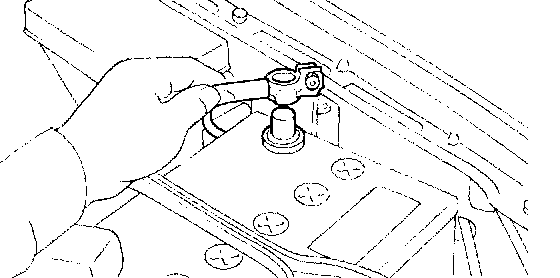

1. Disconnect battery ground cable.

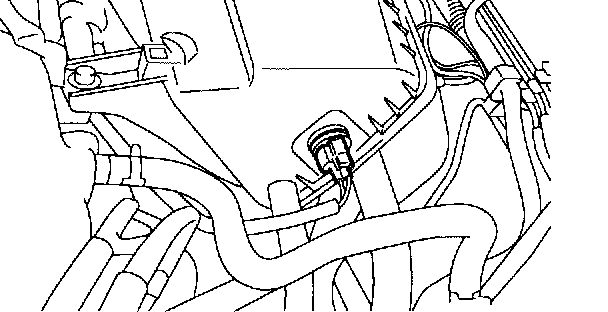

2. Disconnect connector from intake air temperature sensor.
3. Loosen clamp (A) which connects air intake chamber to throttle body.
4. Remove bolts (B) which install air intake chamber to stays.





5. Loosen clamp (C) which connects air intake chamber to air intake boot.
6. Disconnect hoses from air intake chamber.
7. Remove air cleaner case.

INSTALLATION
Install in the reverse order of removal.

INSPECTION
Inspect for cracks and loose connections.
