Fuel Delivery and Air Induction: Locations

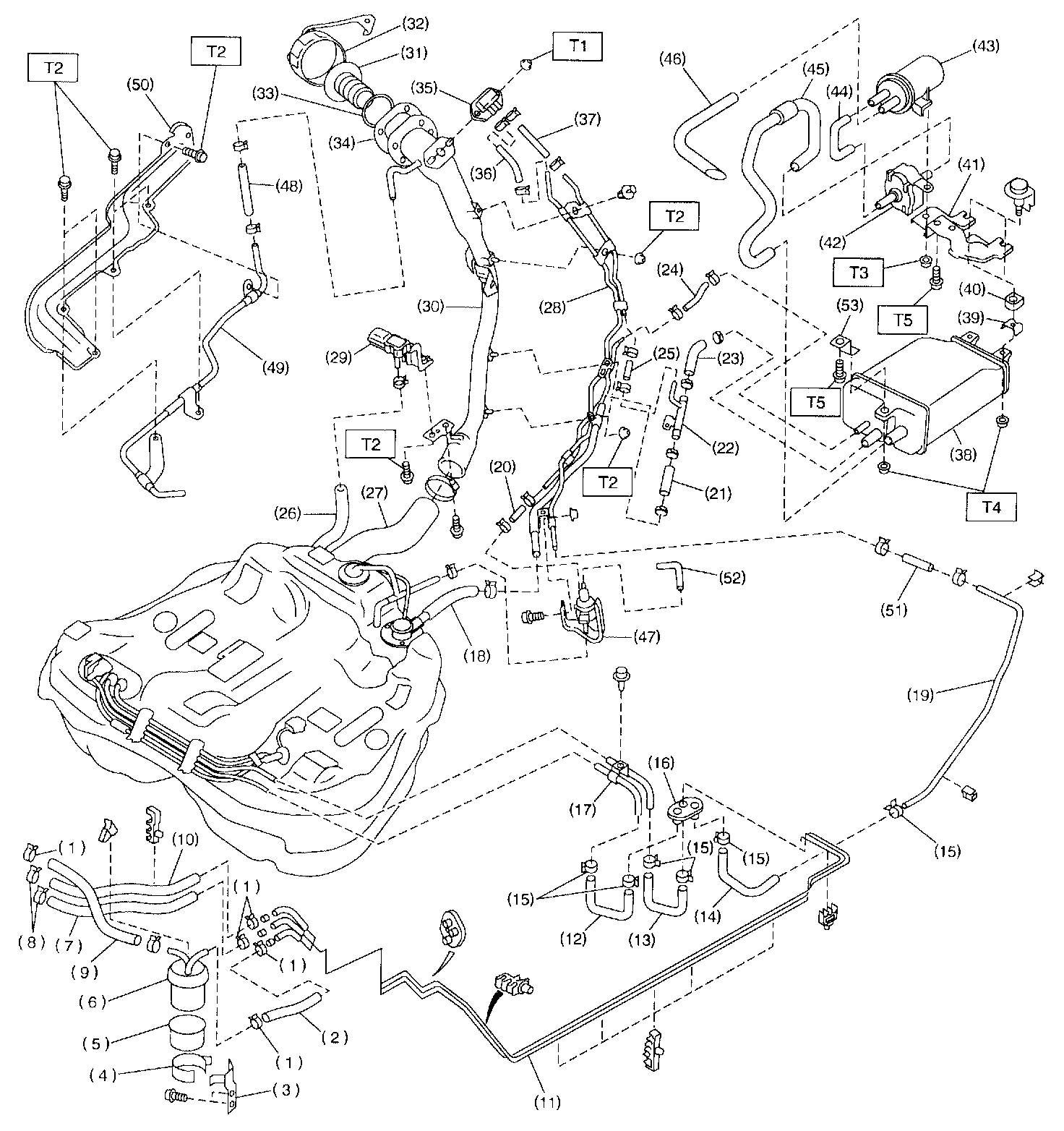

Fuel Line Part 1:
Fuel Line Part 2:
Air Intake System:

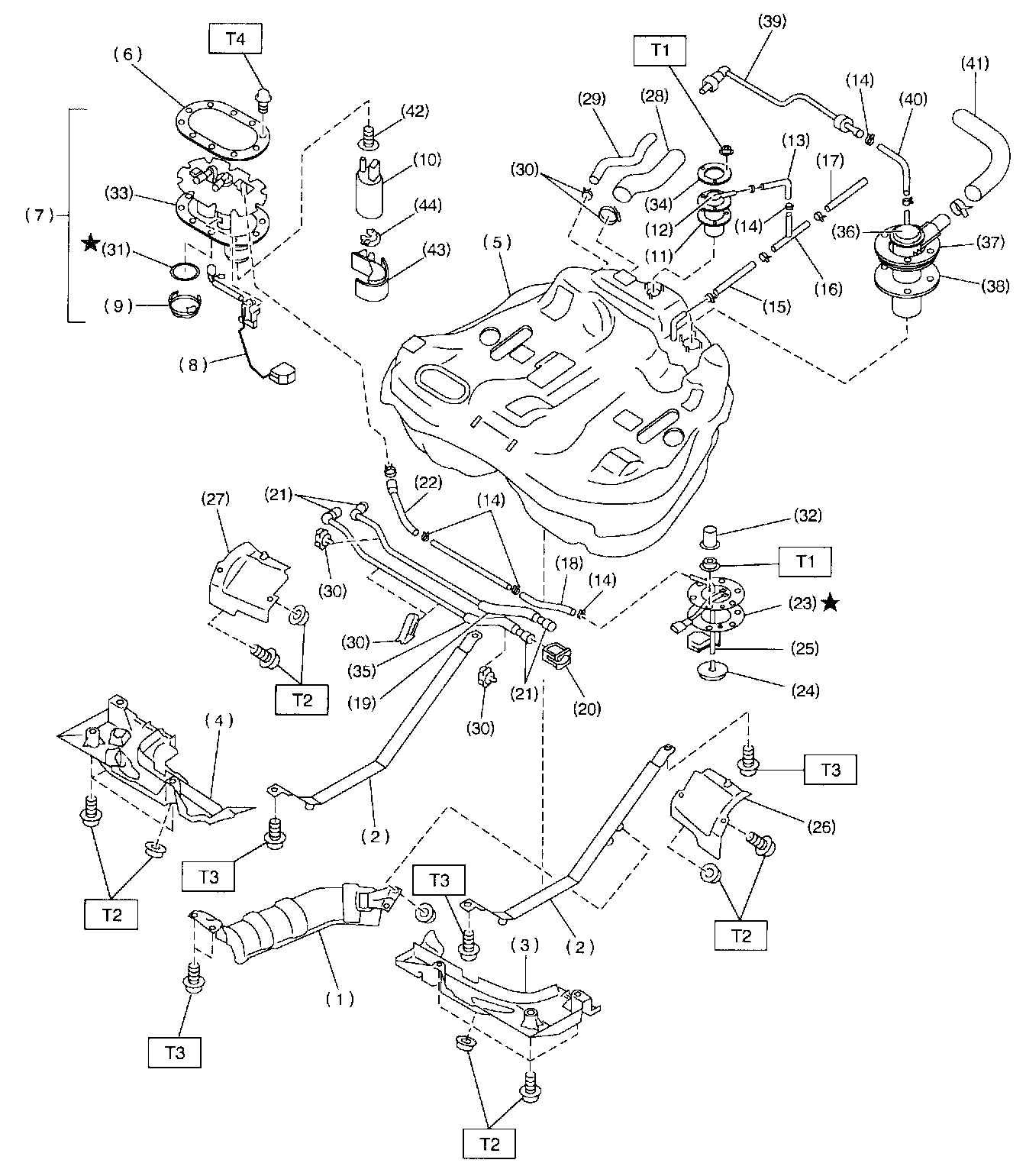

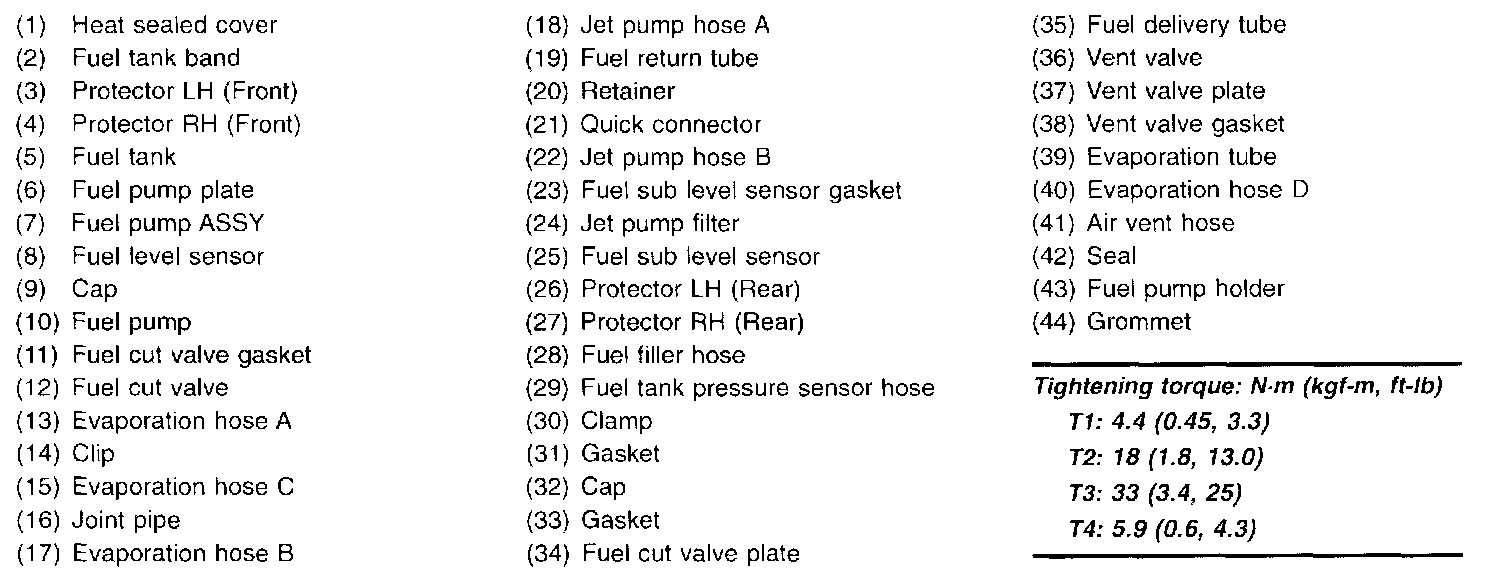

Fuel Tank Part 1:
Fuel Tank Part 2:

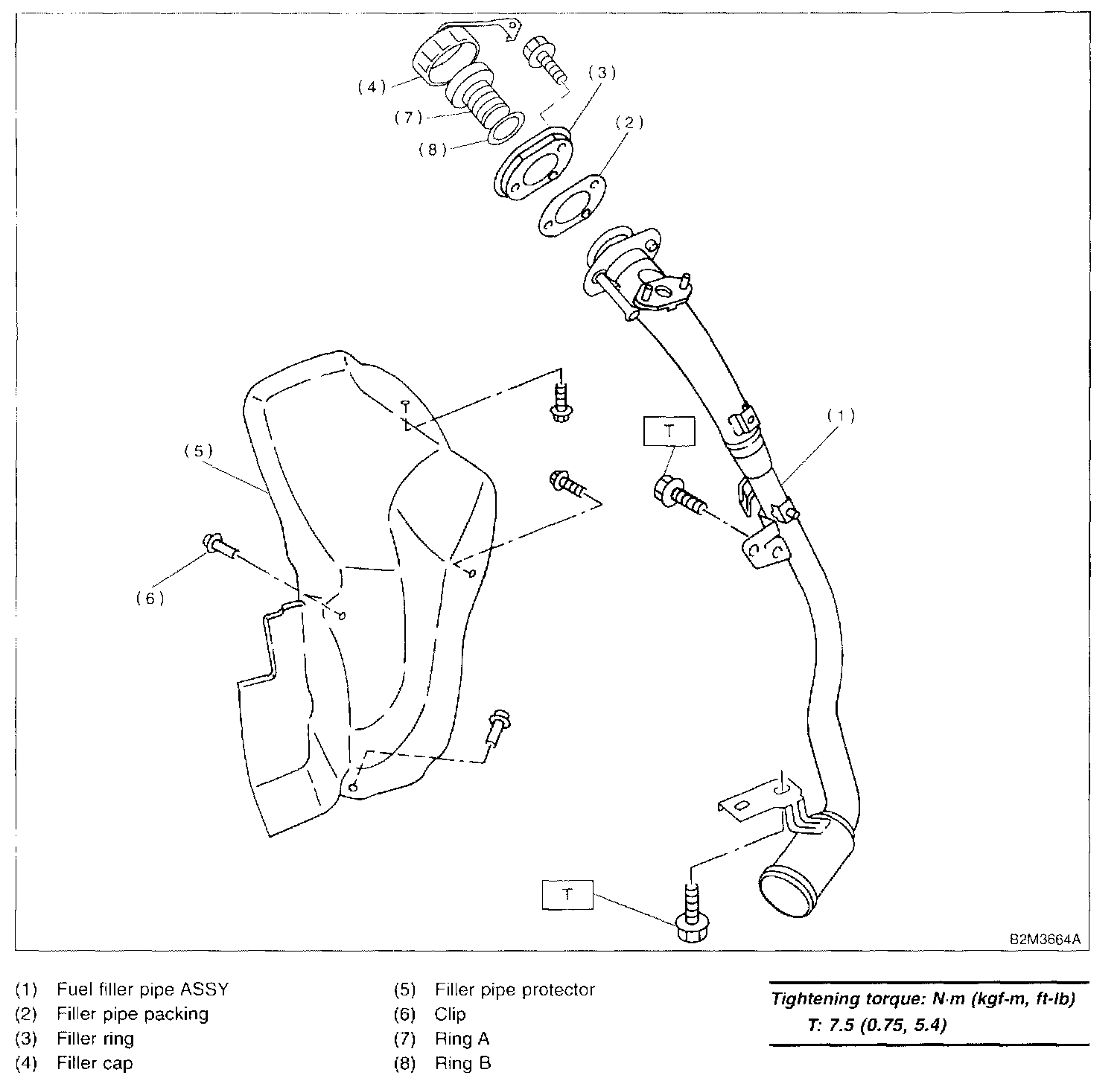

Fuel Filler Pipe:

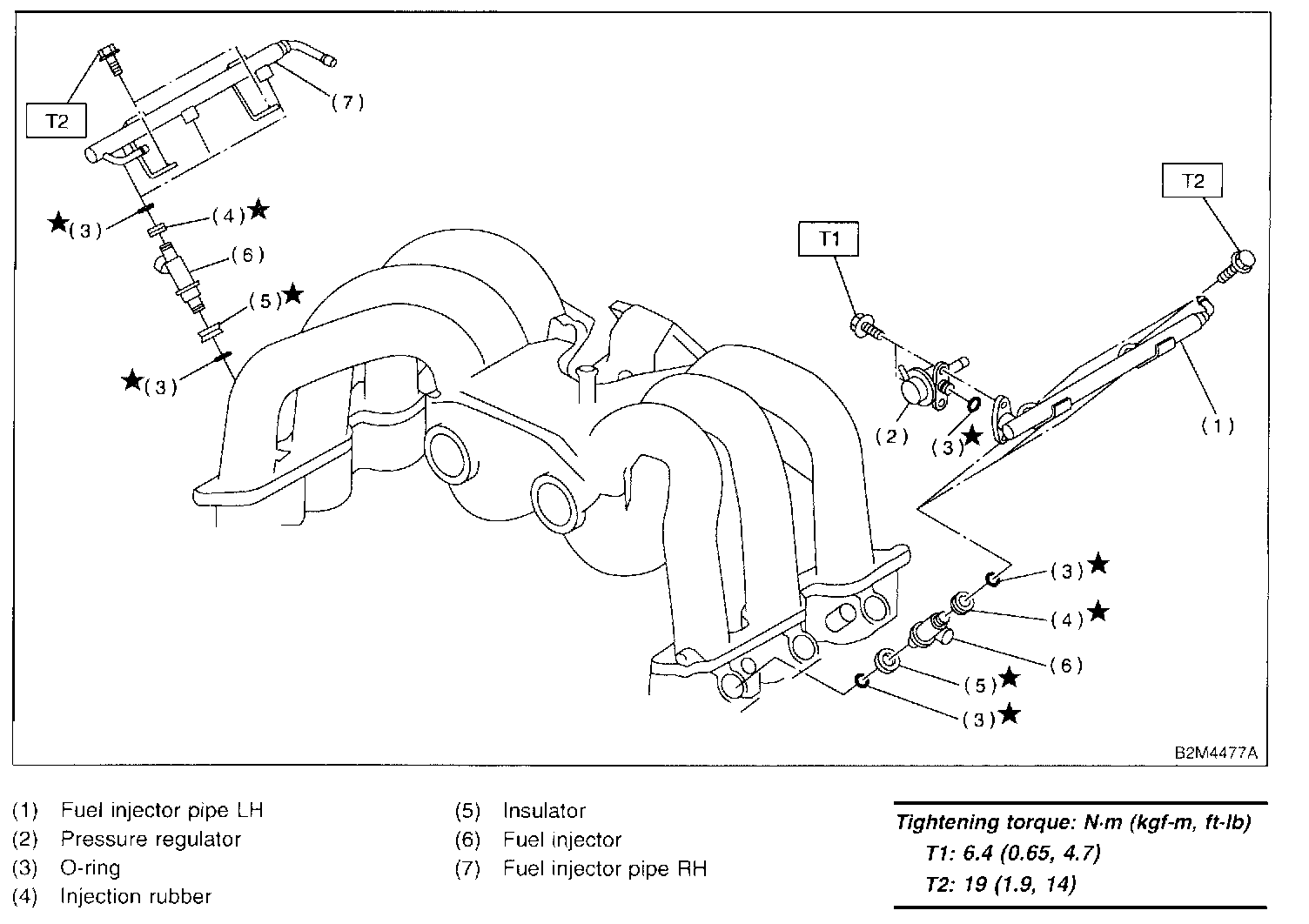

Fuel Injector:
