Resonator Chamber

A: REMOVAL
1. Remove air intake duct.

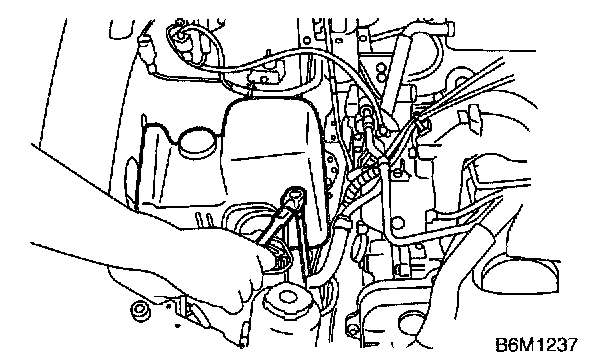

2. Remove resonator chamber.

B: INSTALLATION

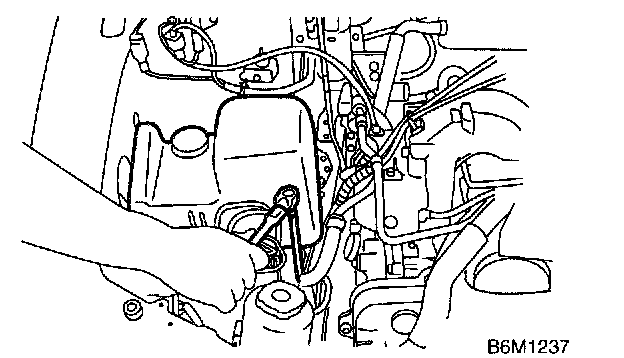

Install in the reverse order of removal.
Tightening torque: 33 Nm (3.4 kgf-m, 24.6 ft. lbs.)

C: INSPECTION
Inspect for cracks and loose connections.
