Air Intake Duct

REMOVAL

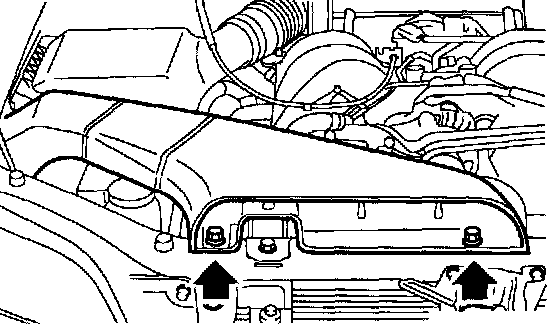

1. Remove bolts which install air intake duct on the front side of body.

INSTALLATION
Install in the reverse order of removal.
