Air Cleaner Case

A: REMOVAL

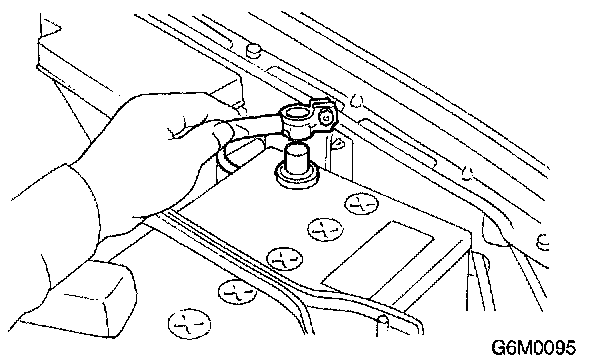

1. Disconnect battery ground cable.

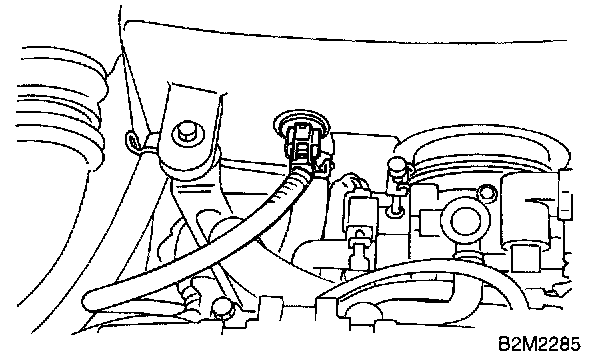

2. Disconnect connector from intake air temperature sensor. (MT vehicles)

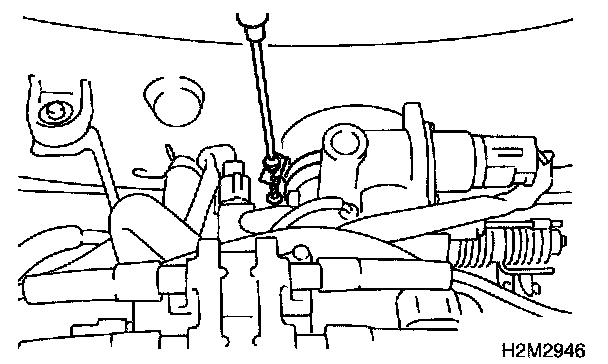

3. Loosen clamp which connects air cleaner case to throttle body.
4. Disconnect hoses from air cleaner case.

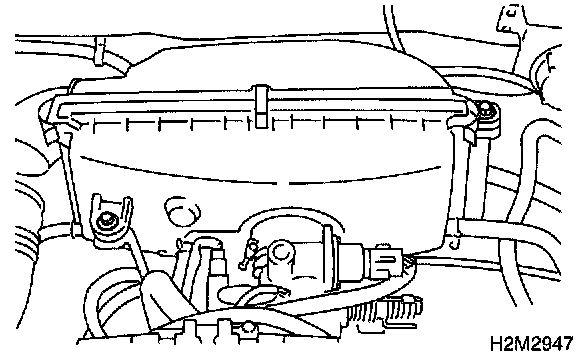

5. Remove bolts which install air cleaner case to stays.
6. Remove air cleaner case.

B: INSTALLATION
Install in the reverse order of removal.

C: INSPECTION
Inspect for cracks and loose connections.
