Fuel Meter Unit

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

NOTE: Fuel level sensor is built in fuel pump assembly.

1. Remove fuel pump assembly.

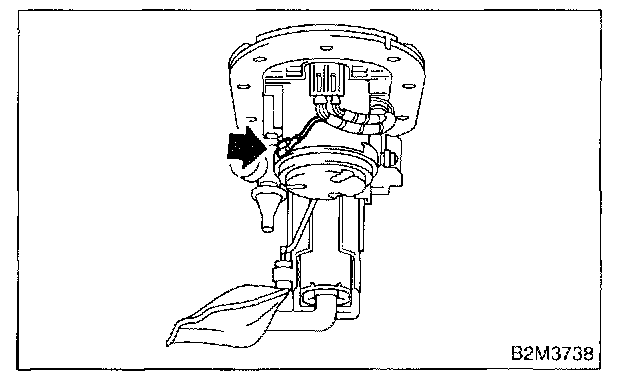

2. Disconnect connector from fuel pump bracket.

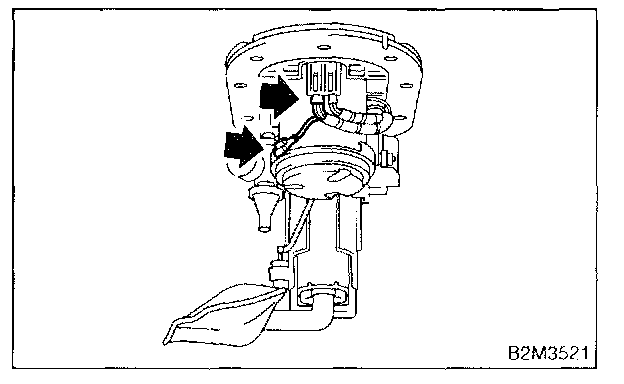

3. Pushing the pawls with a screwdriver, remove fuel meter unit by pulling it downwards.






NOTE: Replace fuel filter pawls with new ones as they might break when removed.

INSTALLATION
Install in the reverse order of removal.






WARNING:
- Ground cable must be connected.
- Spark may occur and ignite if fuel is nearby.
