Fuel Pressure Control Solenoid: Service and Repair

REMOVAL

1. Set the vehicle on the lift.

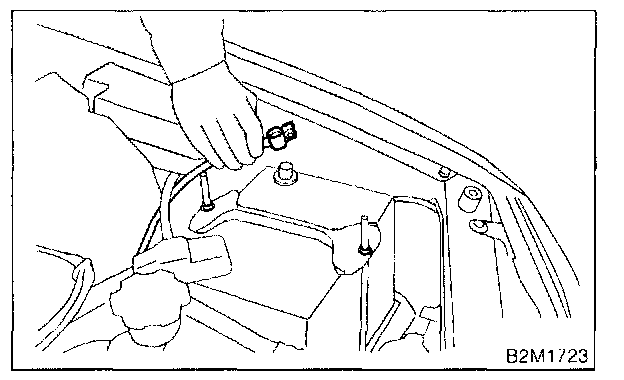

2. Disconnect battery ground cable.
3. Lift-up the vehicle.

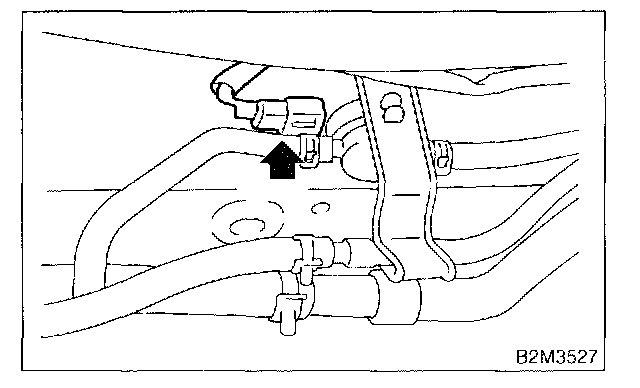

4. Disconnect connector from pressure control solenoid valve.

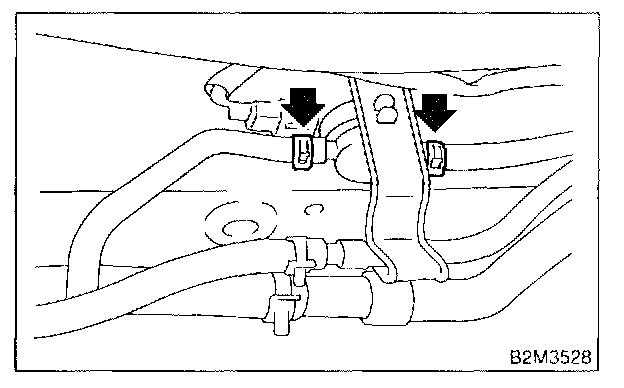

5. Disconnect two evaporation hoses from pressure control solenoid valve.

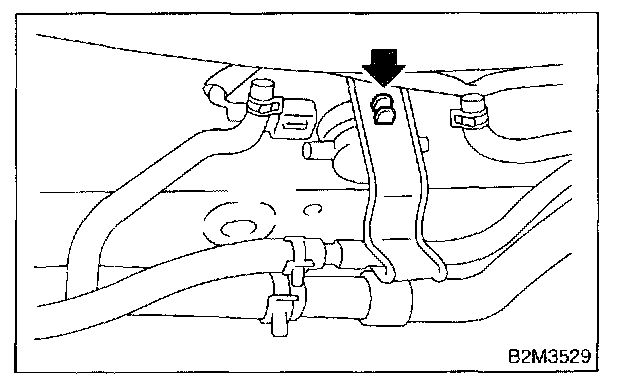

6. Remove pressure control solenoid valve from bracket.

INSTALLATION
Install in the reverse order of removal.
