Fuel Injector: Service and Repair

REMOVAL

RH SIDE

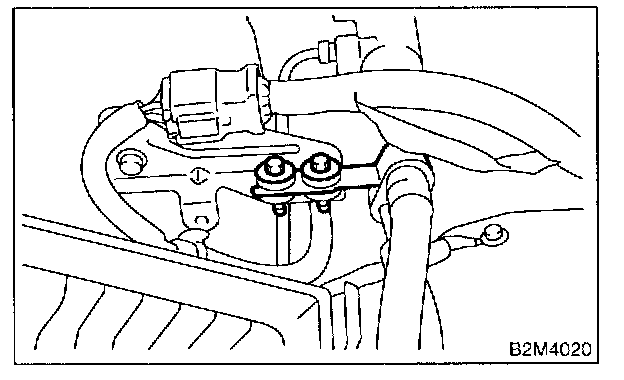

1. Release fuel pressure.

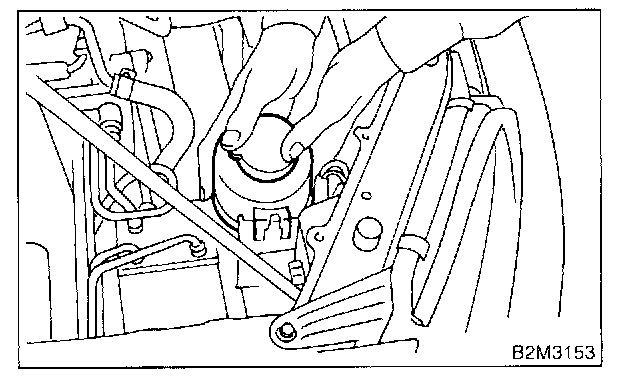

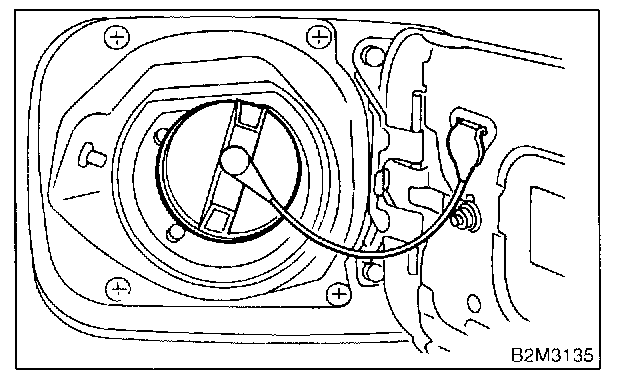

2. Open fuel flap lid, and remove fuel filler cap.

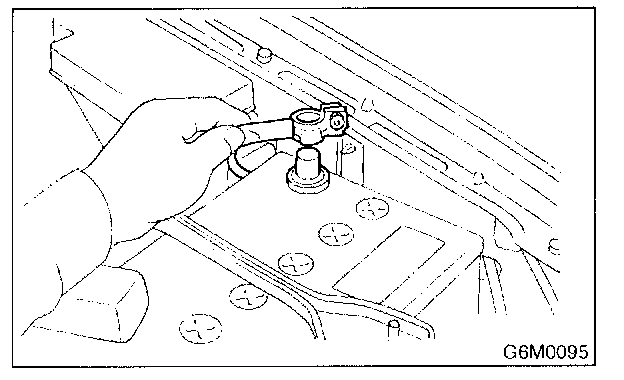

3. Disconnect battery ground cable.
4. Remove air cleaner lower case.

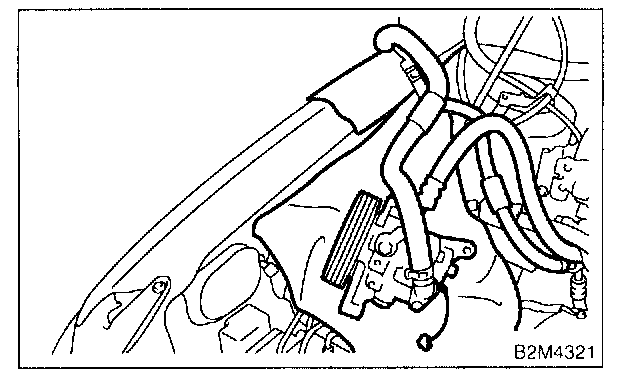

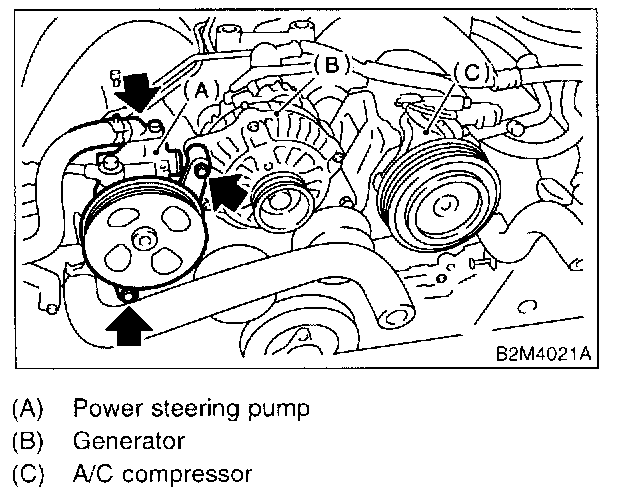

5. Remove power steering pump and tank from brackets.
1. Remove V-belt.




2. Remove power steering oil pipe with bracket.
3. Remove bolts which install power steering pump bracket.






CAUTION: Do not separate hose and pipe from the main pump.




4. Disconnect power steering pump switch connector.




5. Remove power steering tank from the bracket by pulling it upward.




6. Place power steering pump on the right side wheel apron.

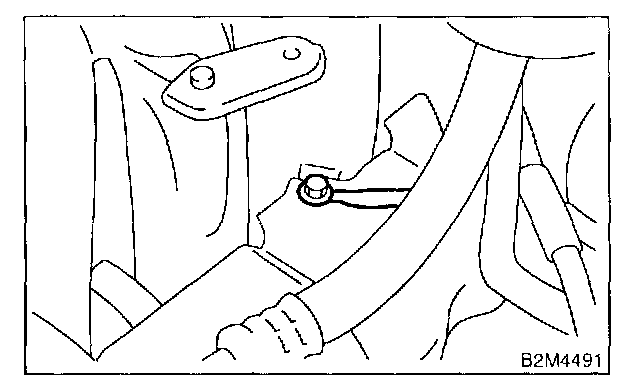

6. Remove ground cable from fuel pipe protector RH.

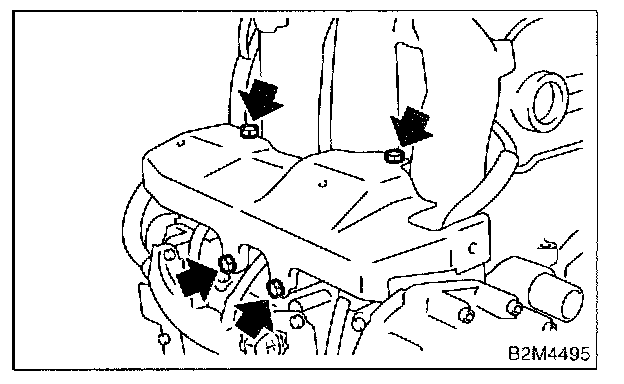

7. Remove fuel pipe protector RH.

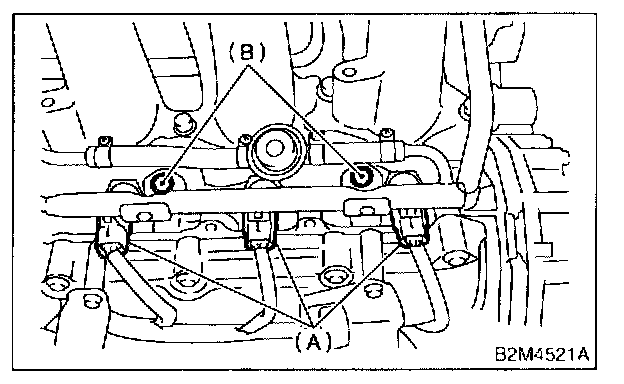

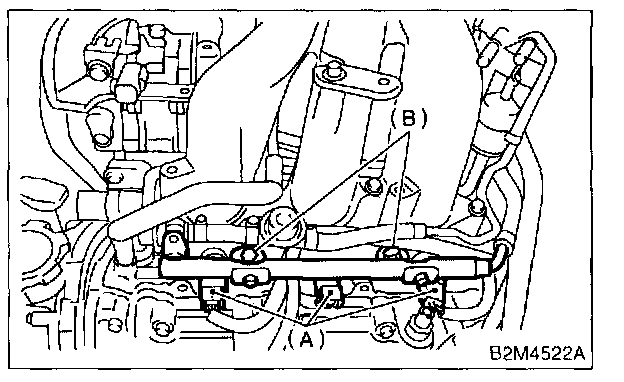

8. Disconnect connector (A) from fuel injector.




9. Remove bolt (B) which holds injector pipe onto cylinder head.
10. Remove fuel injector while lifting up fuel injector pipe.

LH SIDE

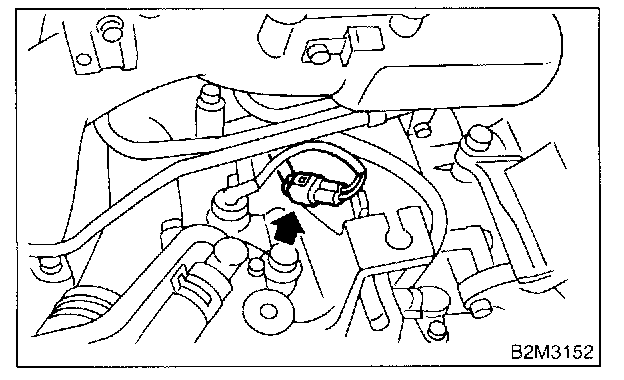

1. Release fuel pressure.




2. Open fuel flap lid, and remove fuel filler cap.

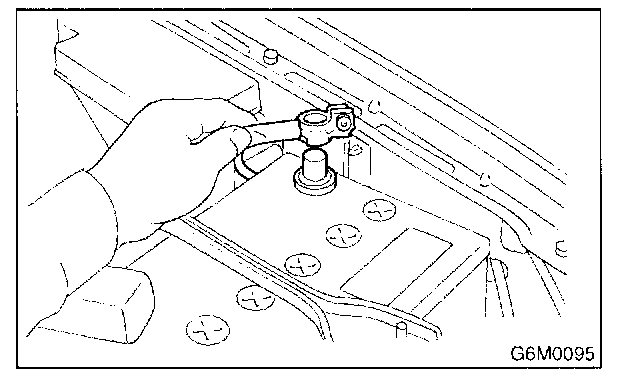

3. Disconnect battery ground cable.

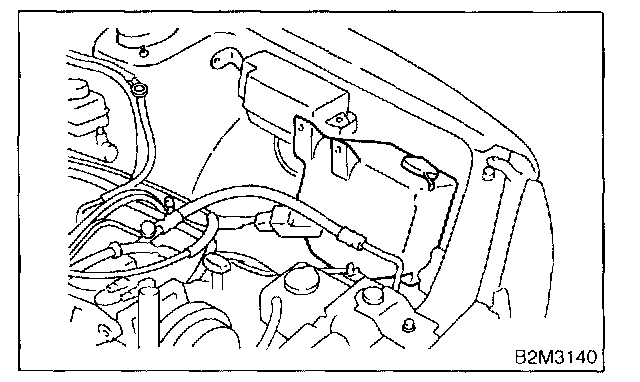

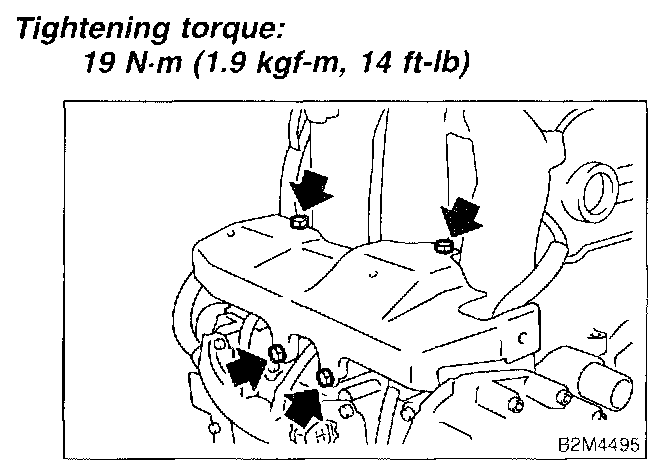

4. Remove two bolts which install washer tank on body.

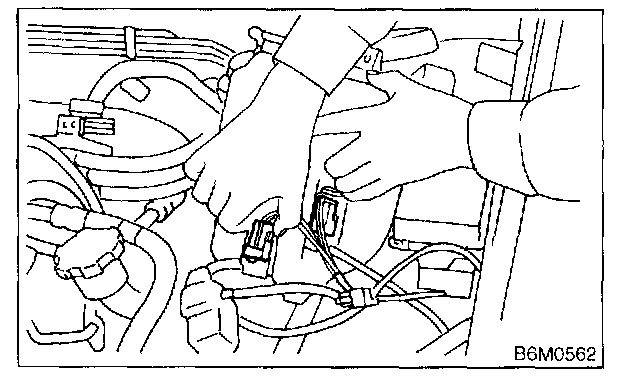

5. Disconnect connector from front window washer motor.




6. Disconnect connector from rear gate glass washer motor.
7. Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.




8. Move washer tank, and secure it away from working area.

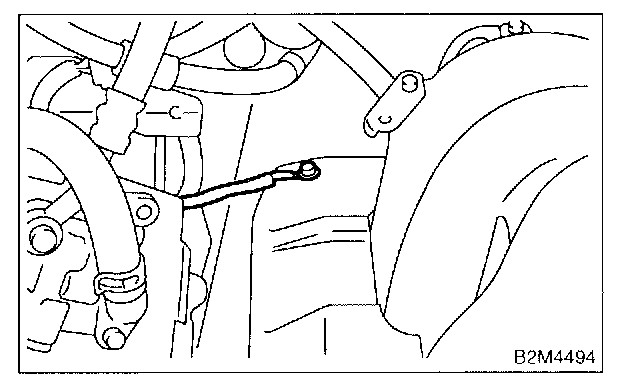

9. Remove ground cable from fuel pipe protector LH.




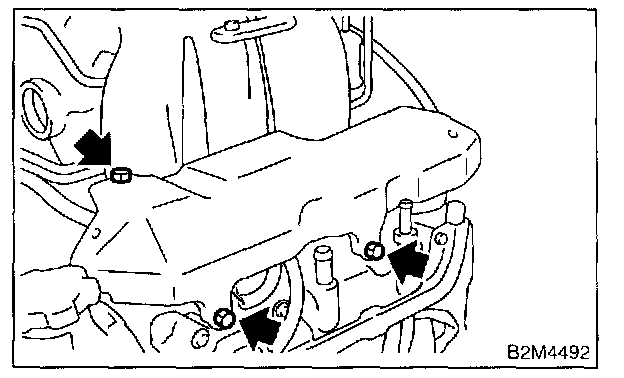

10. Remove fuel pipe protector LH.
11. Disconnect connector (A) from fuel injector.




12. Remove bolt (B) which holds injector pipe onto cylinder head.
13. Remove fuel injector while lifting up fuel injector pipe.

INSTALLATION

RH SIDE

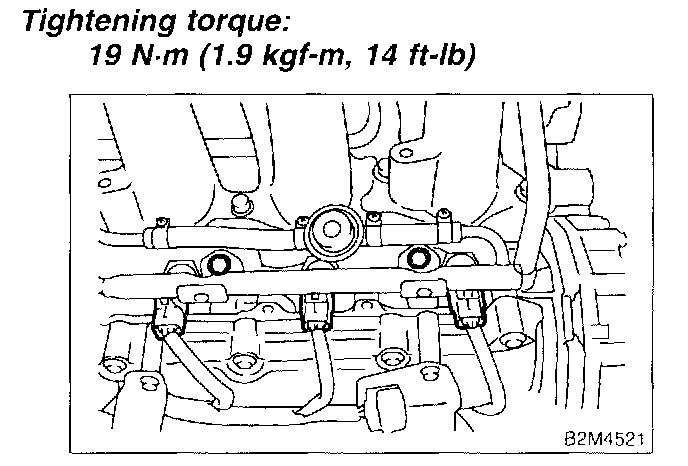

Install in the reverse order of removal.

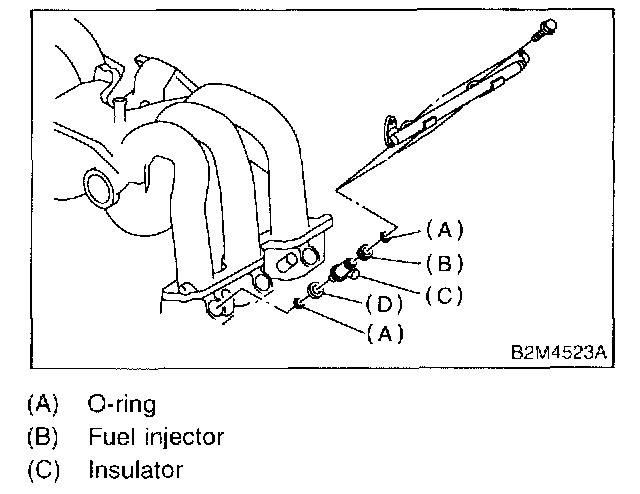

CAUTION: Replace O-rings and insulators with new ones.

LH SIDE

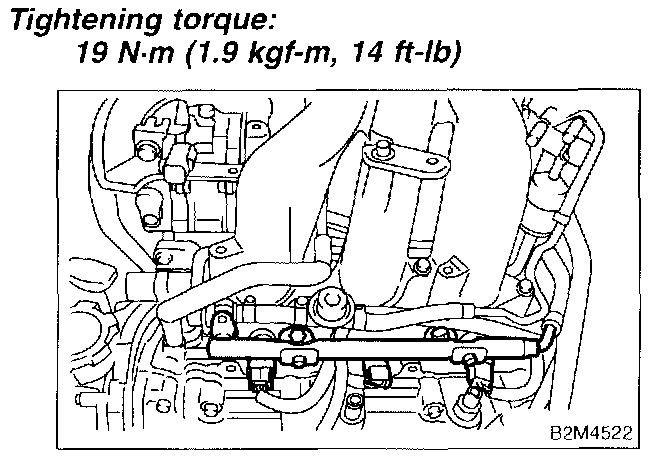

Install in the reverse order of removal.

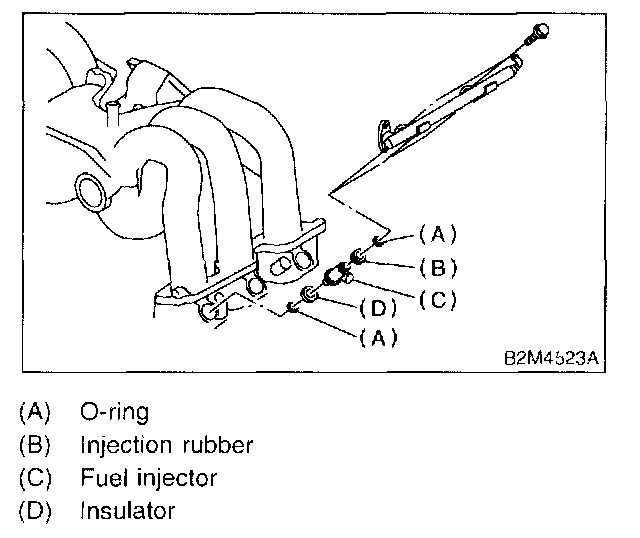

CAUTION: Replace O-rings and insulators with new ones.
