Accelerator Pedal: Service and Repair

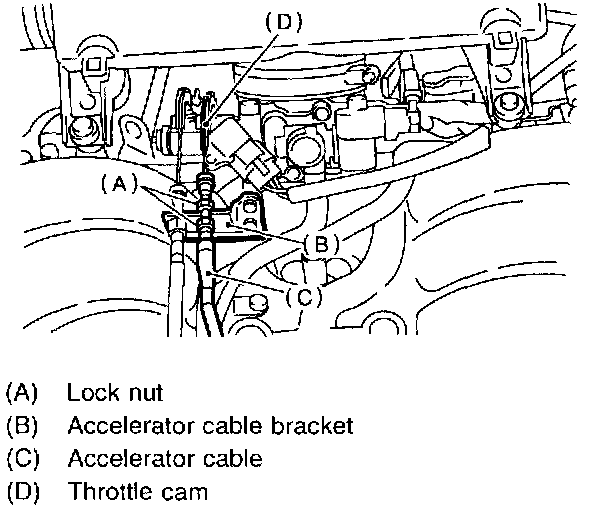

REMOVAL
1. Disconnect ground cable from battery.
2. Remove lock nut from accelerator cable bracket.
3. Separate accelerator cable from bracket.
4. Remove accelerator cable end from throttle cam.





5. Disconnect accelerator cable from throttle body.

CAUTION: Be careful not to kink accelerator cable.

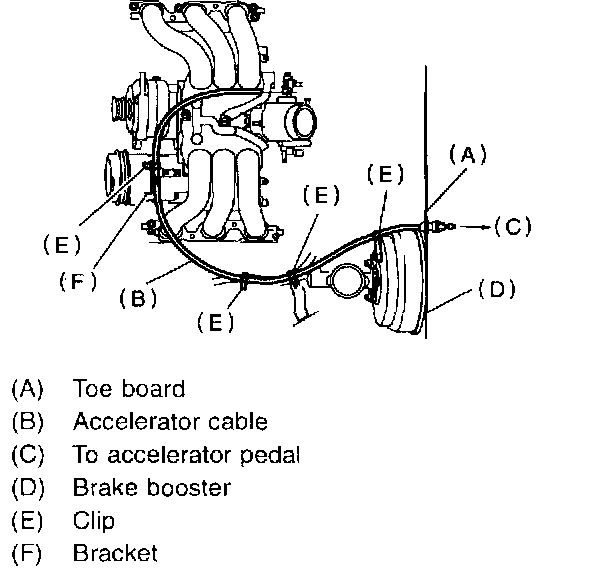

6. Remove clip inside engine compartment.
7. Remove instrument panel lower cover from instrument panel, and connector.
8. Remove brake and clutch pedal bracket. (MT model)





9. Remove accelerator pedal connecting bolt from accelerator pedal bracket.

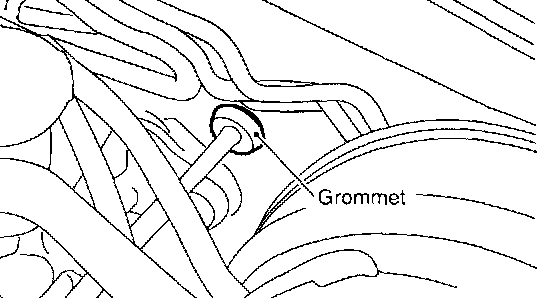

10. Disconnect grommet from toe board.





NOTE: From inside compartment, push grommet into hole.

11. Pull out the cable from the toe board hole.





12. Disconnect accelerator cable bushing from accelerator pedal lever.

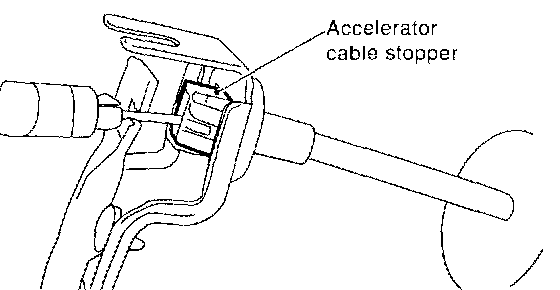

13. Disconnect accelerator cable stopper from bracket.
14. Separate accelerator cable and bracket.

INSTALLATION
1. Install in the reverse order of removal.

CAUTION:
^ If cable clamp is damaged, replace it with a new one.
^ Never fail to cover outer cable end with boot.
^ Be careful not to kink accelerator cable.
^ Always use new clevis pins.

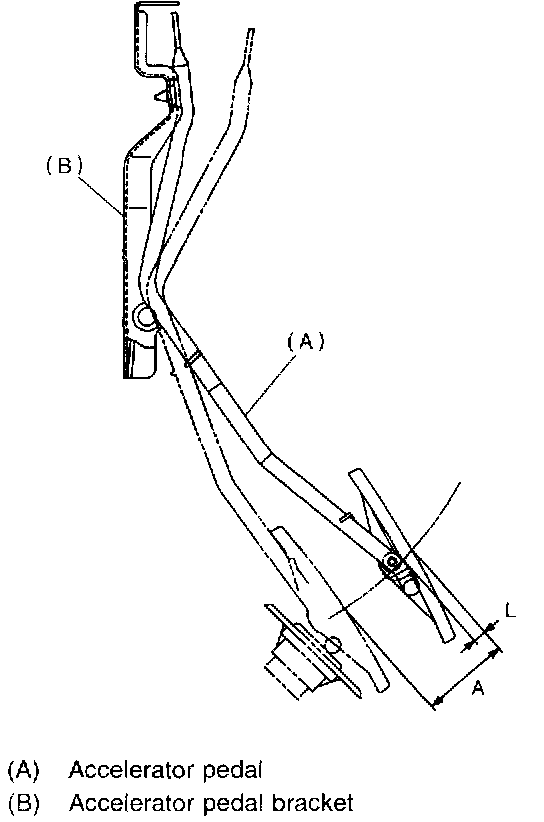

2. Check pedal stroke and free play by operating accelerator pedal by hand. If it is not within specified value, adjust it by turning nut connecting accelerator cable to throttle body.
Free play at pedal pad: L 1 - 4 mm (0.04 - 0.16 inch)
Stroke at pedal pad: A 50 - 55 mm (1.97 - 2.17 inch)
Accelerator cable lock nut tightening torque: 12 Nm (1.2 kgf-m, 9 ft. lbs.)

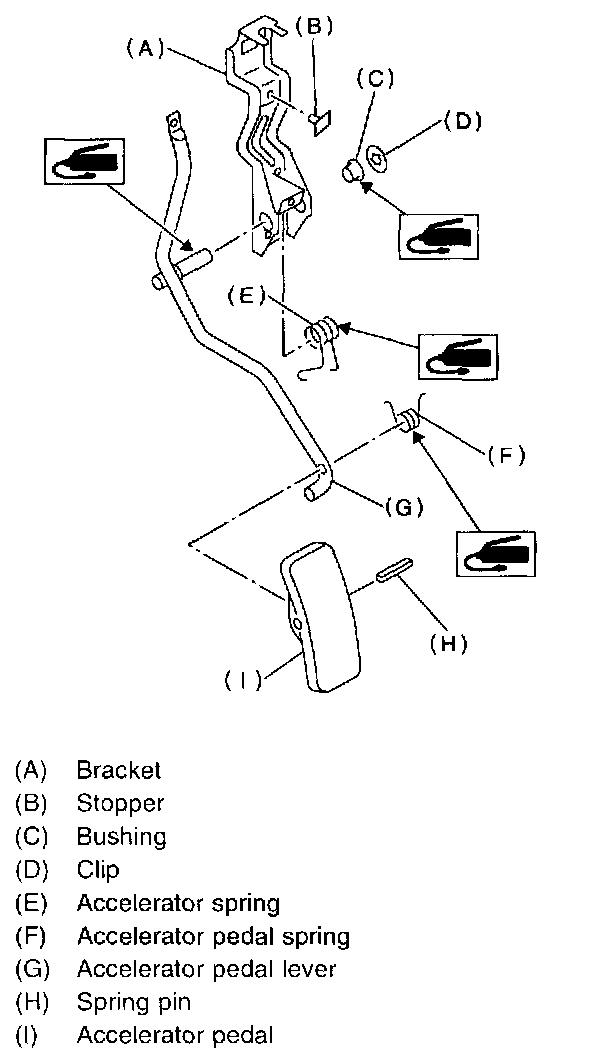

DISASSEMBLY

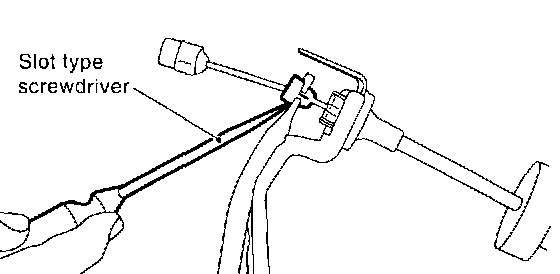

1. Remove the clip, and then remove the accelerator pedal from the bracket.





2. Pull out the spring pin, and then remove the accelerator pedal from the accelerator pedal lever.

REASSEMBLY
Assemble in the reverse order of disassembly.

CAUTION: Clean and apply grease to spacer and inside bore of a accelerator pedal.

INSPECTION

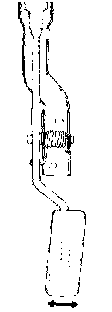

Lightly move pedal pad in lateral the direction to ensure pedal deflection is' in specified range.

CAUTION: If excessive deflection is noted, replace bushing and clip with new ones.

Deflection of accelerator pedal:
Service limit 5.0 mm (0.197 inch) or less
