EGR Valve: Service and Repair

REMOVAL




1. Disconnect battery ground cable.
2. Remove air duct.
3. Remove starter.

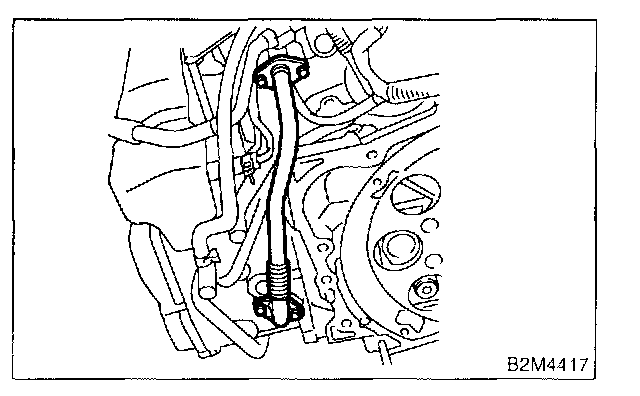

4. Remove EGR pipe from EGR valve and cylinder head.

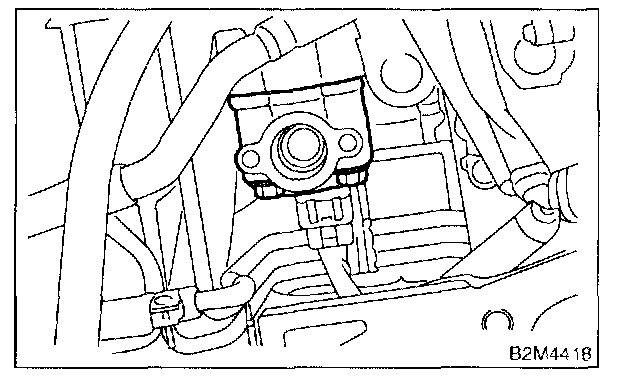

5. Remove EGR valve from intake manifold.

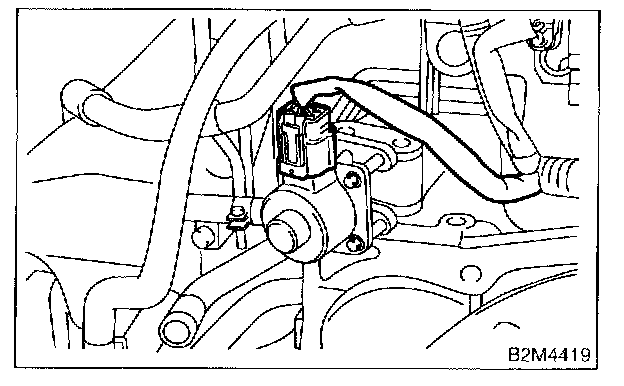

6. Disconnect connector from EGR valve.

INSTALLATION

NOTE: Replace old gaskets with new one.

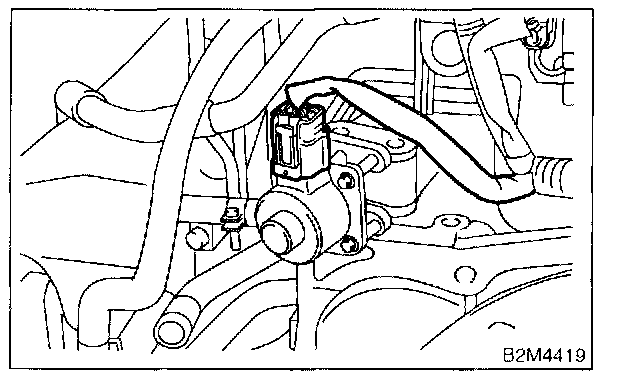

1. Connect connector EGR valve.

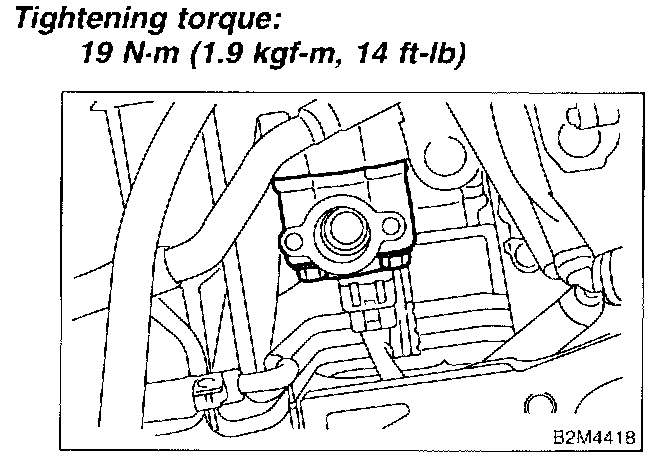

2. Install EGR valve to intake manifold.

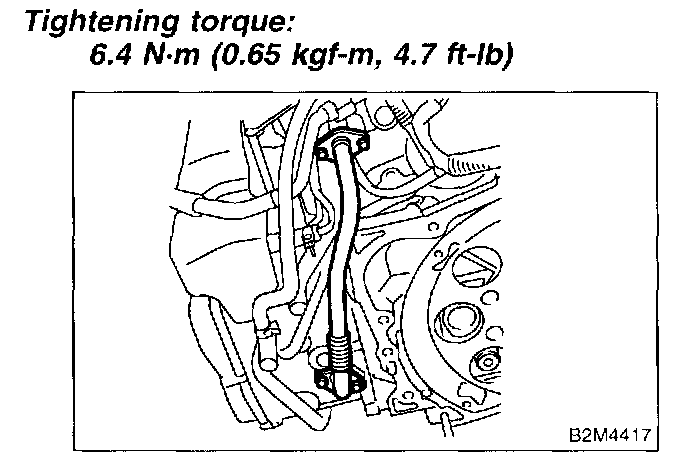

3. Install EGR pipe to EGR valve and cylinder head.
4. Install starter.
5. Install air duct.

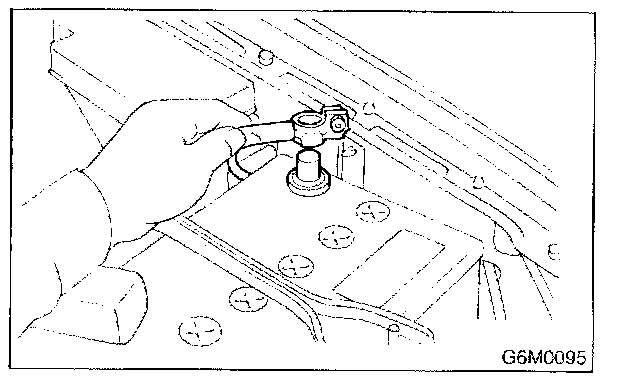

6. Connect battery ground cable.
