Canister Vent Valve: Service and Repair

REMOVAL

1. Remove fuel tank.

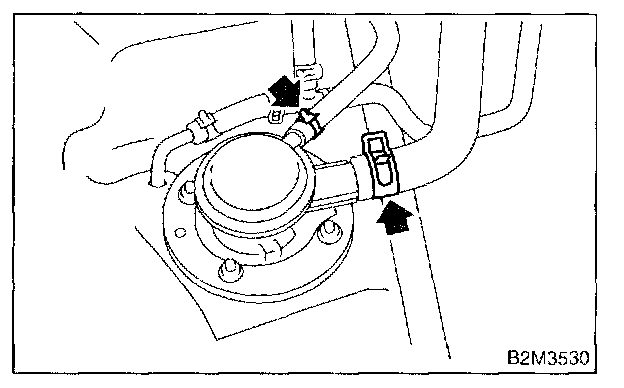

2. Move clips, and disconnect hoses from vent valve.

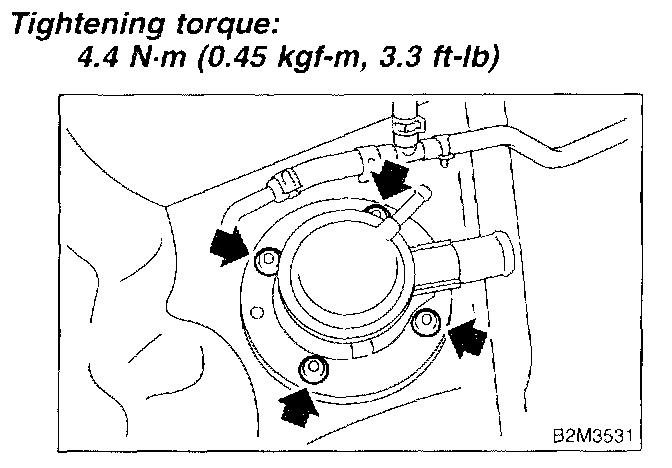

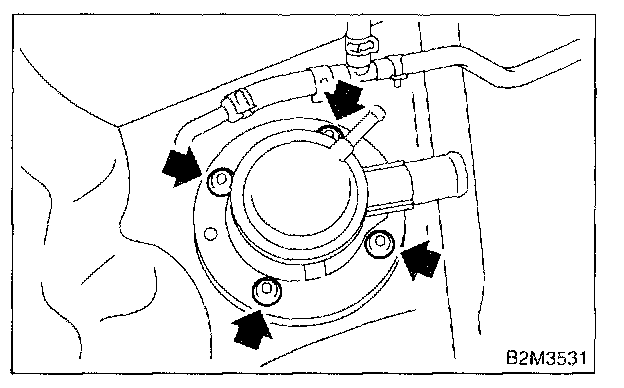

3. Remove nuts which install vent valve on fuel tank.

INSTALLATION

Install in the reverse order of removal.






CAUTION: Replace rubber seat with a new one.
