Vehicle Speed Sensor: Service and Repair

A: REMOVAL
1. Disconnect ground terminal from battery.
2. Lift-up the vehicle.
3. Remove center rear exhaust pipes and muffler.
4. Disconnect connector from vehicle speed sensor.

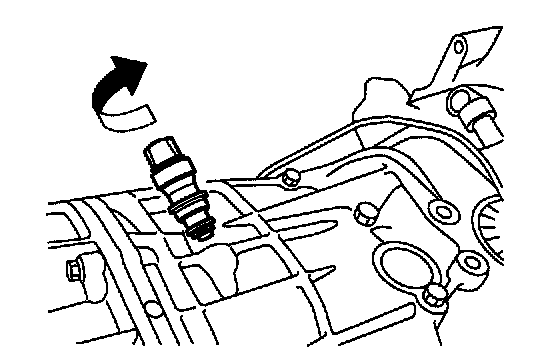

5. Turn and remove vehicle speed sensor.

B: INSTALLATION

NOTE:
^ Discard vehicle speed sensor and after removal, replace with a new one.
^ Ensure sensor mounting hole is clean and free of foreign matter.
^ Align tip end of key with key groove on end of speedometer shaft during installation.

1. Hand tighten vehicle speed sensor.
2. Tighten vehicle speed sensor using suitable tool.
Tightening torque: 5.9 Nm (0.6 kgf-m, 4.3 ft. lbs.)
3. Connect connector to vehicle speed sensor.
4. Install front and center exhaust pipes.
