Check MIL Does Not Go OFF

CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) DOES NOT GO OFF.

DIAGNOSIS:
- The CHECK ENGINE malfunction indicator lamp (MIL) circuit is shorted.

TROUBLE SYMPTOM:
- Although MIL comes on when engine runs, trouble code is not shown on Subaru select monitor or OBD-II general scan tool display.

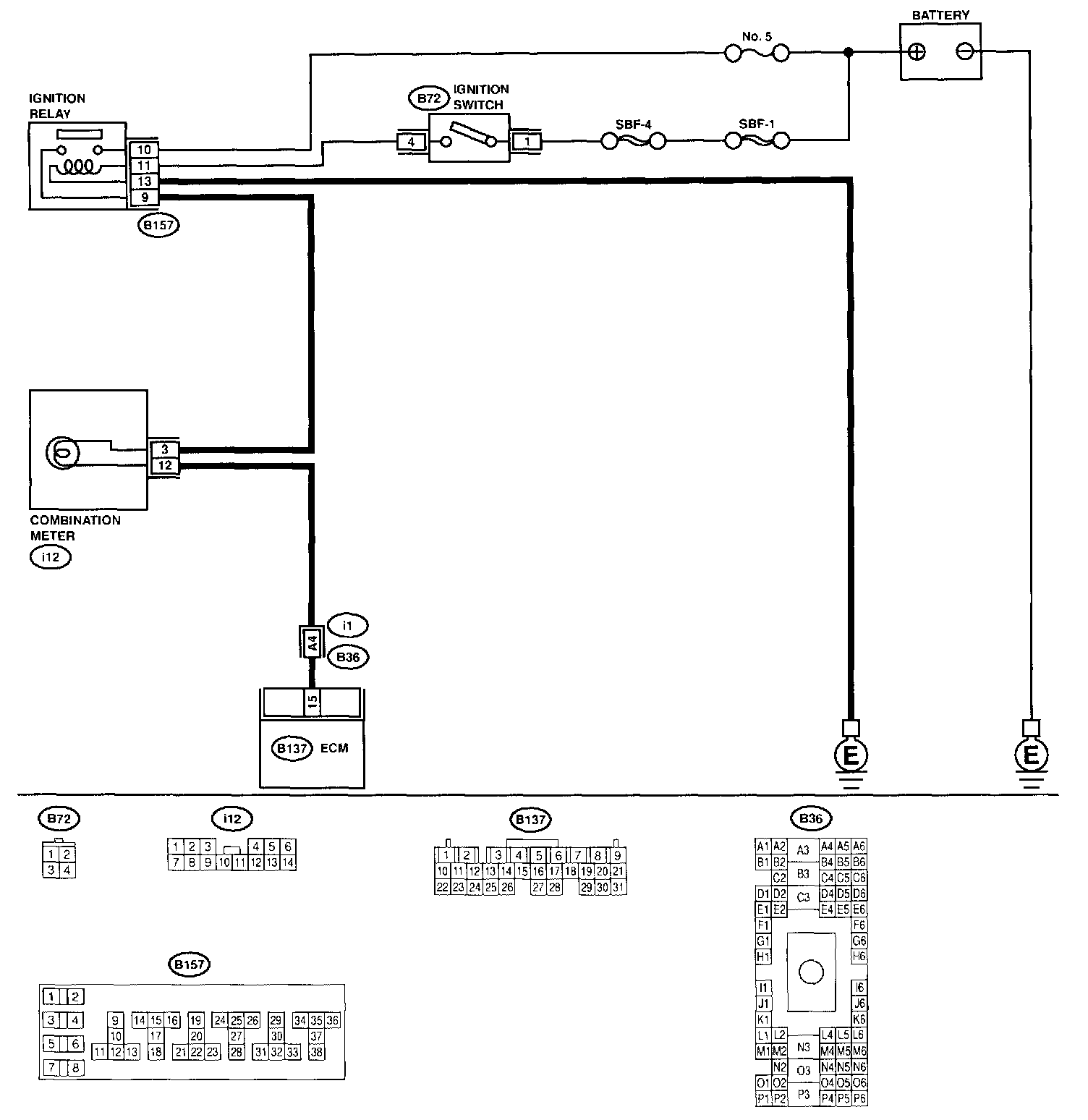

Wiring Diagram:

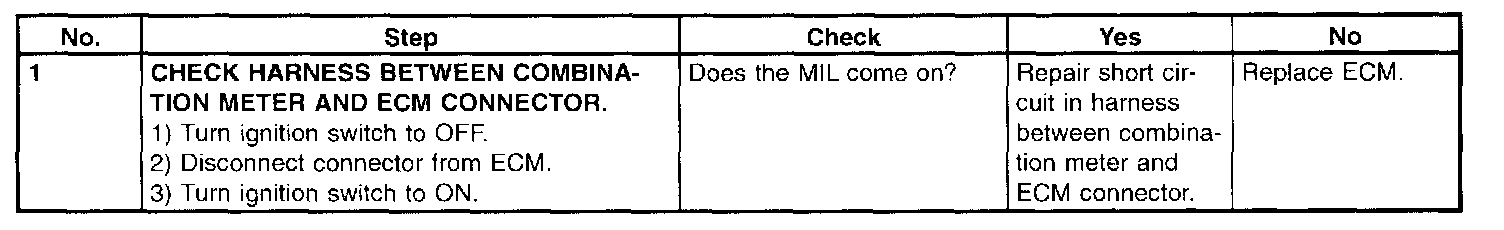

Step 1:




WIRING DIAGRAM
