Check MIL Does Not Come ON

CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) DOES NOT COME ON.

DIAGNOSIS:
- The CHECK ENGINE malfunction indicator lamp (MIL) circuit is open or shorted.

TROUBLE SYMPTOM:
- When ignition switch is turned ON (engine OFF), MIL does not come on.

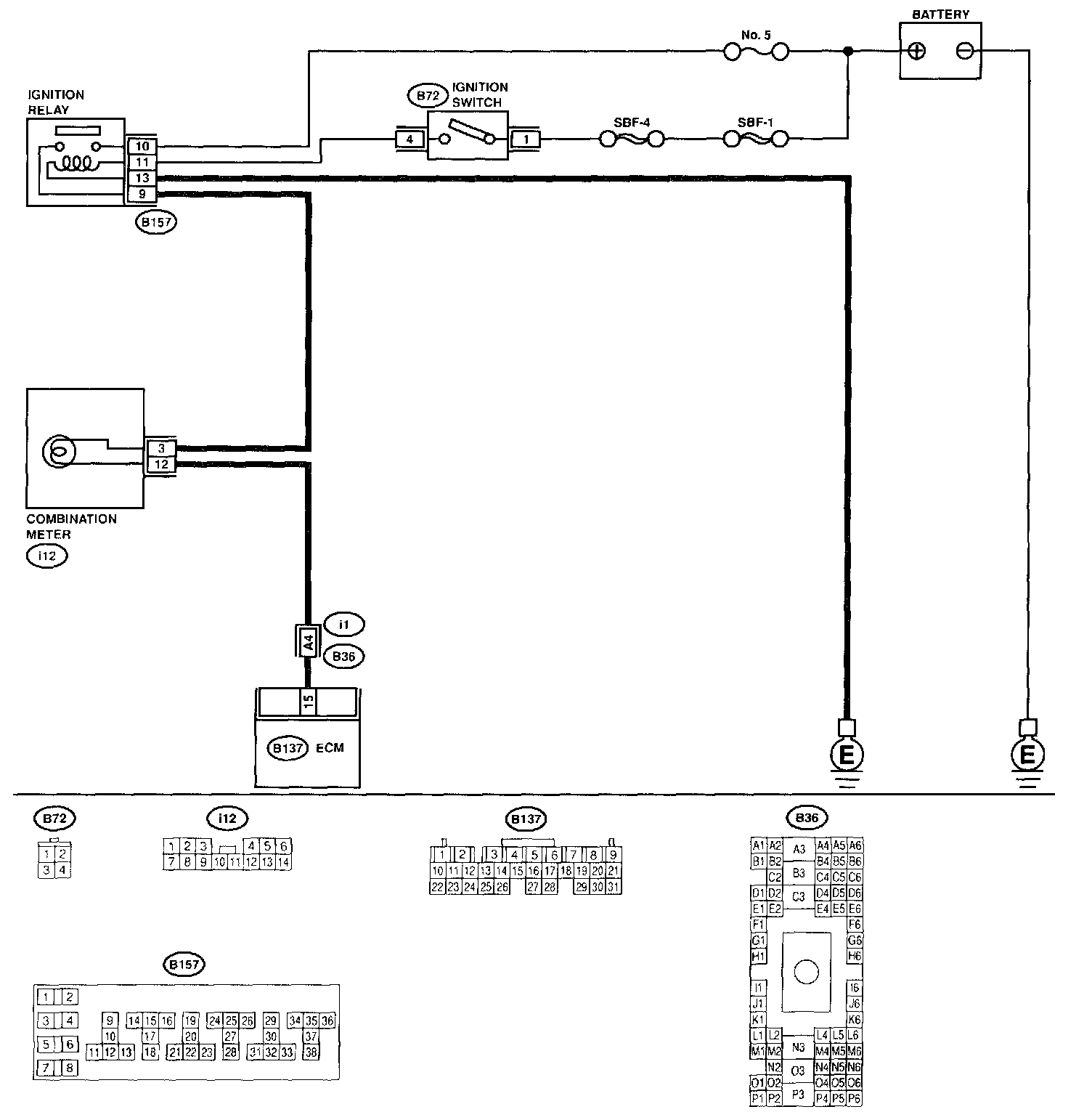

Wiring Diagram:

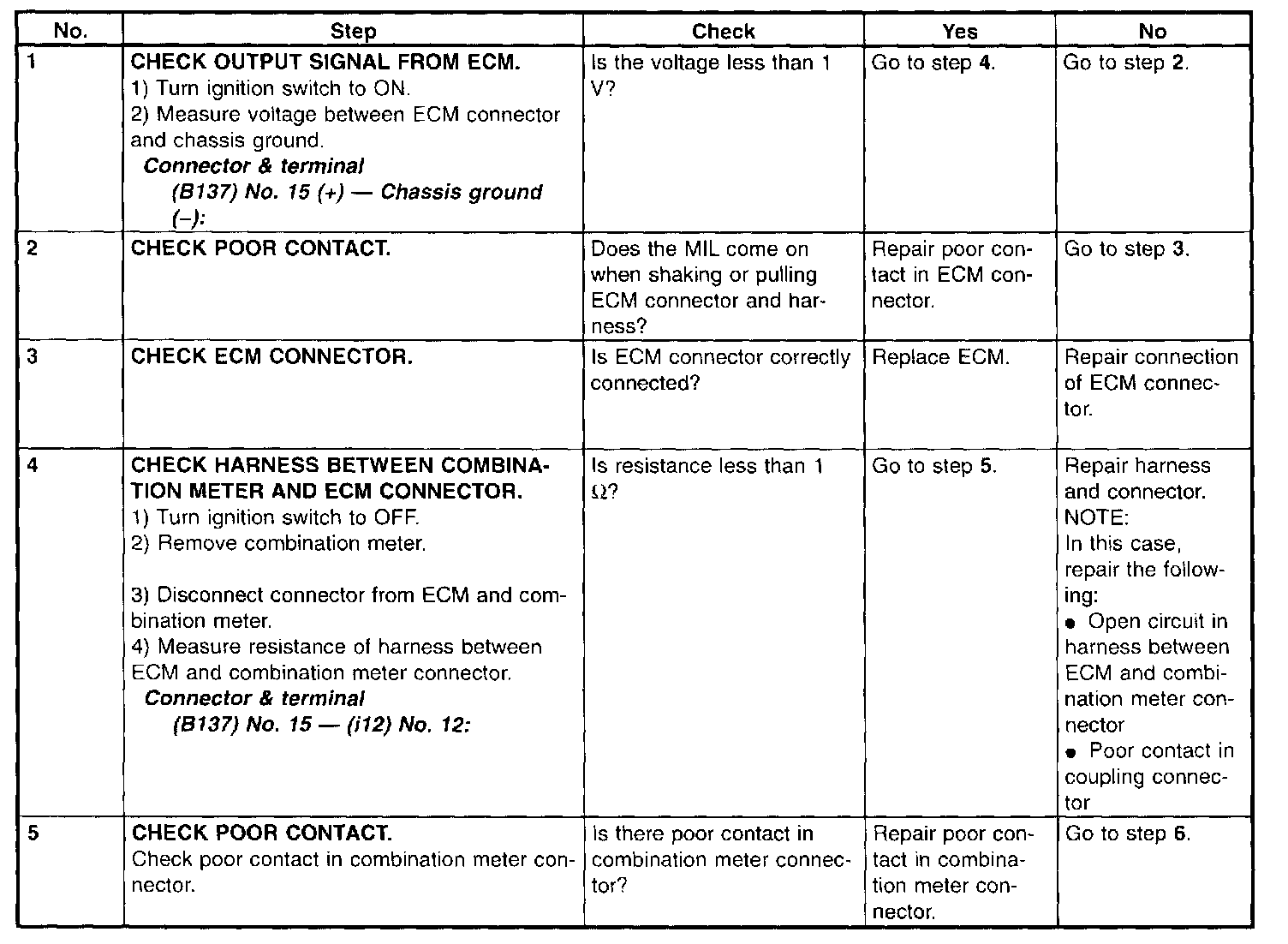

Step 1 - 5:

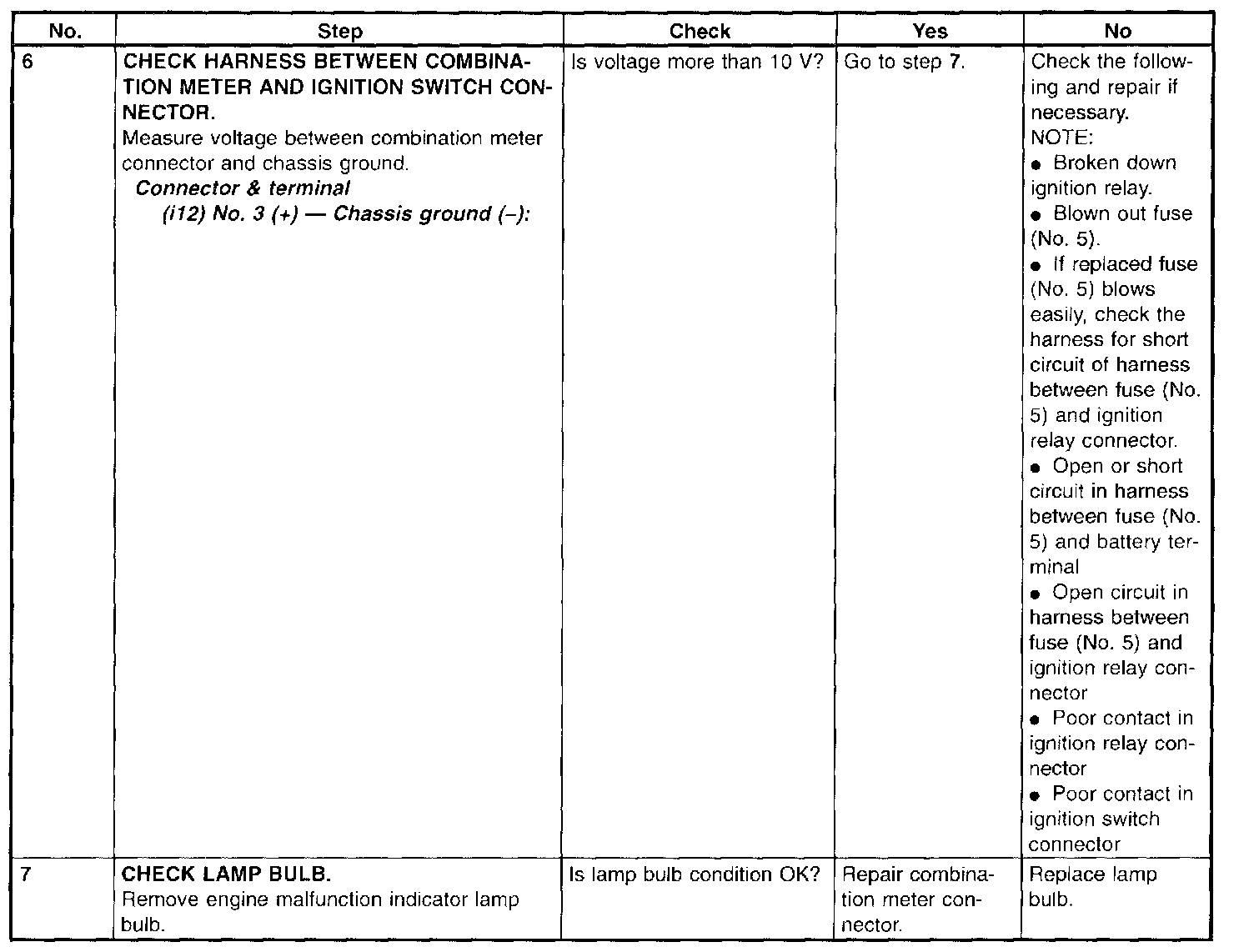

Step 6 - 7:

Wiring Diagram
